Diagnostic Method

• Abnormality Judgment

Judge NG when the malfunction criteria below are completed.

• Judgment Value

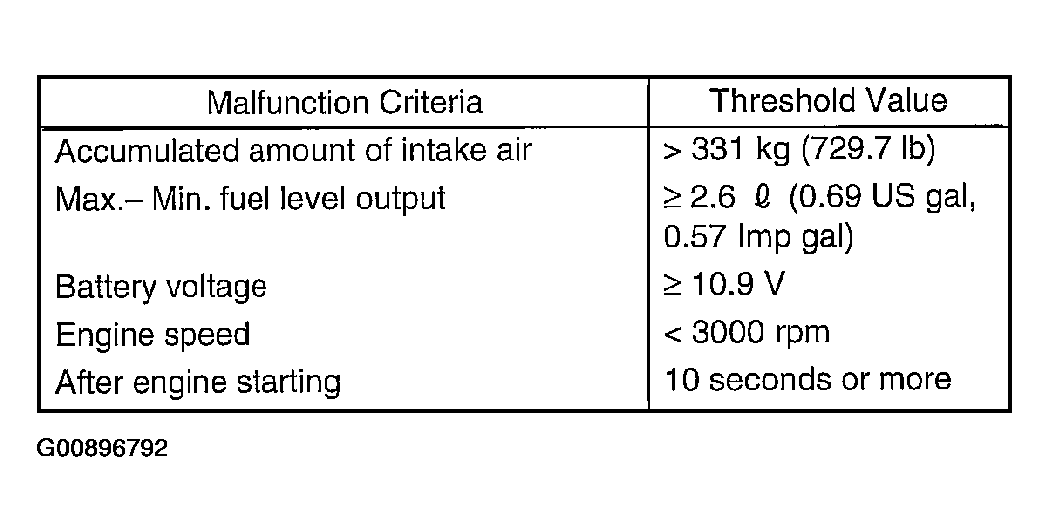

  Fig 1: Abnormality Judgment Value Table

  Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  To be determined.

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

Judge OK and clear the NG when the malfunction criteria below are completed.

• Judgment Value

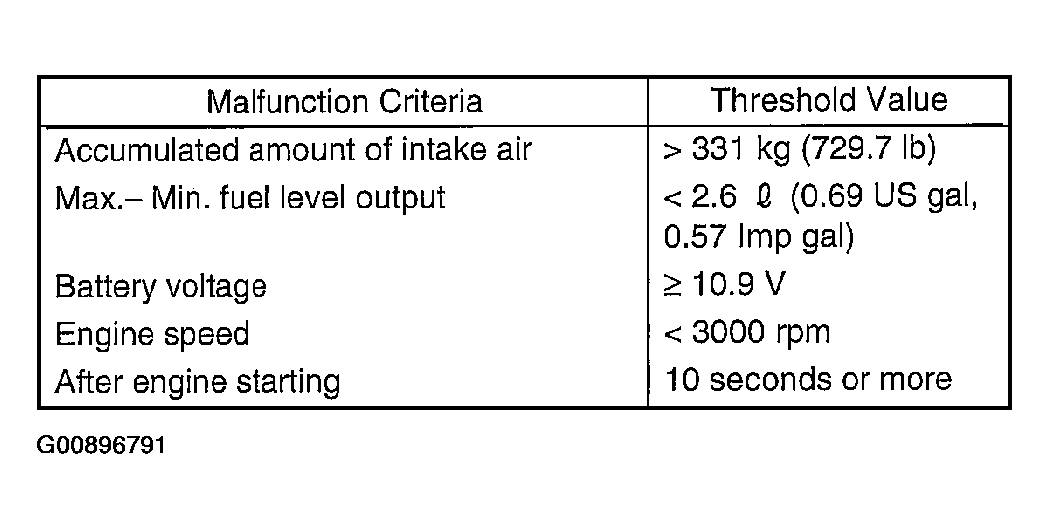

Fig 2: Normality Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.
