Diagnostic Method

• Abnormality Judgment

Judge NG when the continuous time of completing the malfunction criteria below becomes more than the time needed for diagnosis (2.5 seconds).

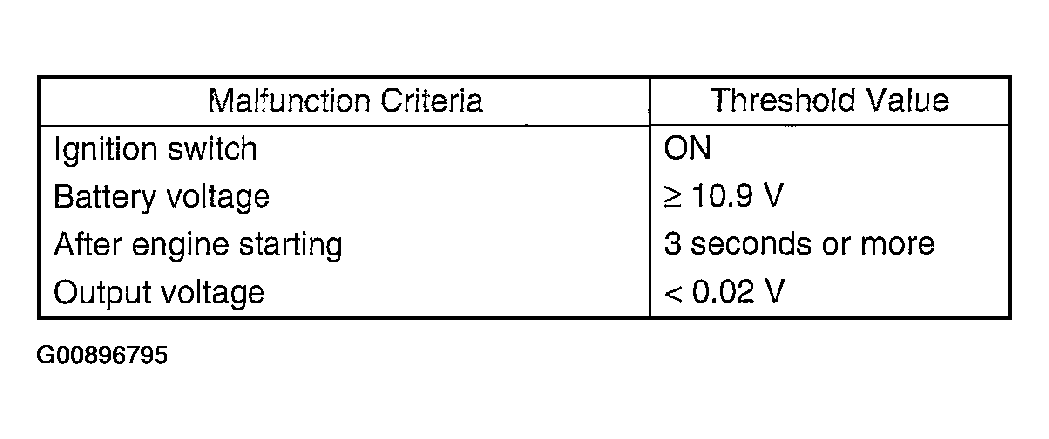

• Judgment Value
  Fig 1: Abnormality Judgment Value Table

  Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  2.5 seconds

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.

• Normality Judgment

Judge OK and clear the NG when the malfunction criteria below are completed.

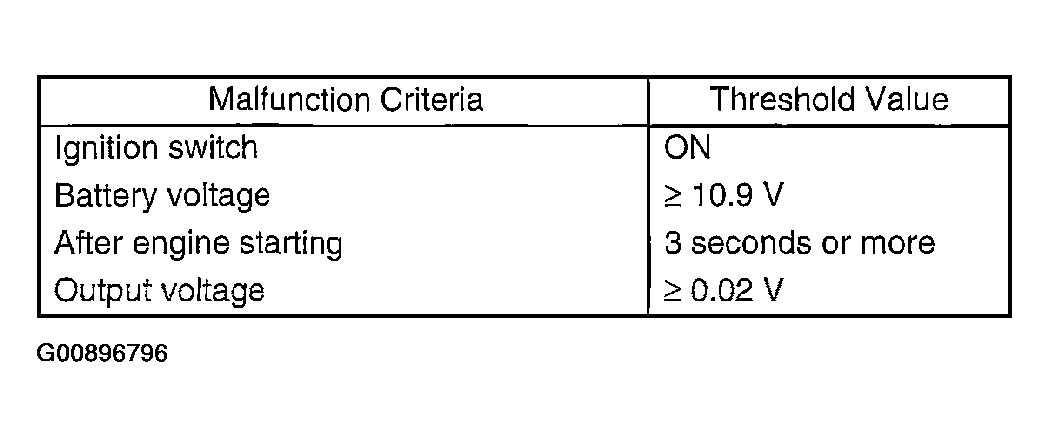

• Judgment Value

Fig 2: Normality Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.
