Diagnostic Method

• Abnormality Judgment

Judge NG when the continuous time of completing the malfunction criteria below becomes more than 4 seconds.

• Judgment Value

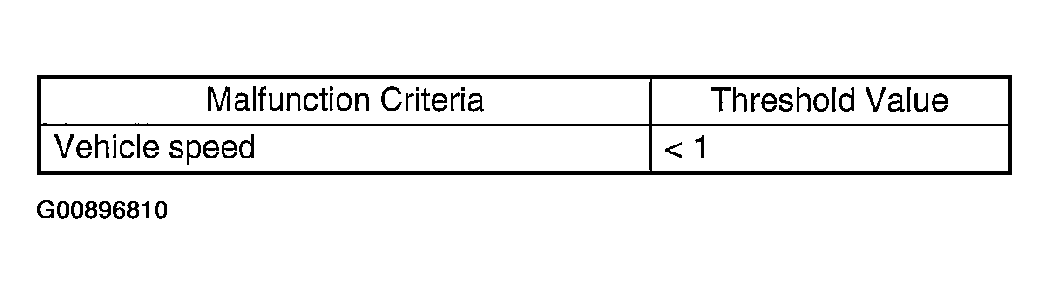

  Fig 1: Abnormality Judgment Value Table (1 Of 2)

  Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  4 seconds

Malfunction Indicator Light Illumination:  Illuminates as soon as the malfunction occurs.

• Abnormality Judgment

Judge OK and clear NG when the malfunction criteria below are completed.

• Judgment Value

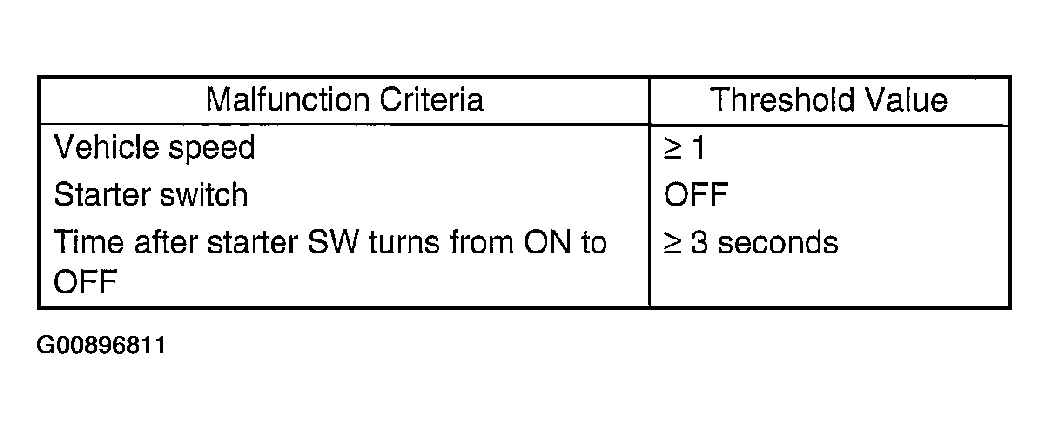

Fig 2: Abnormality Judgment Value Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
