Diagnostic Method

Judge NG when the malfunction criteria below are completed. Judge OK and clear NG when the malfunction criteria below are not completed.

Judgment Value

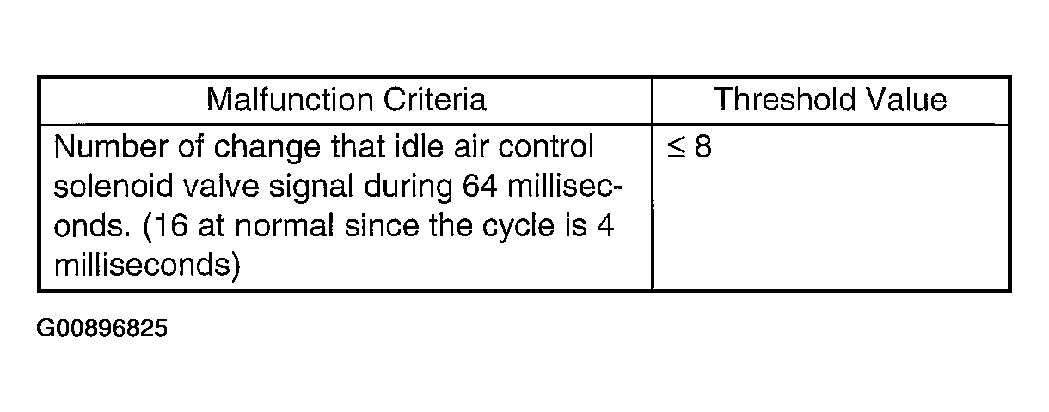

Fig 1: Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  64 milliseconds

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.
