Diagnostic Method

Judge NG when the number of times of completing the malfunction criteria below becomes more than 10 times. Judge OK and clear NG when the malfunction criteria below are not completed.

Judgment Value

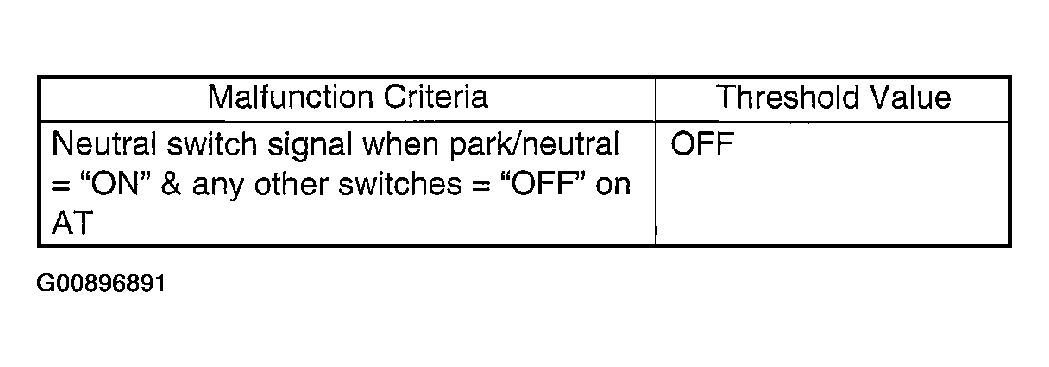

Fig 1: Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  10 times

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.
