Diagnostic Method

• Abnormality Judgment

Judge NG when the malfunction criteria below are completed.

• Judgment Value

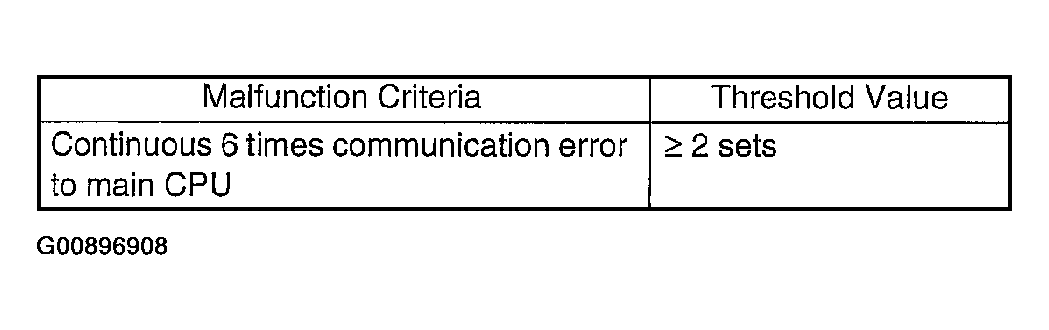

  Fig 1: Abnormality Judgment Value Table

  Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  Not determined

Malfunction Indicator Light Illumination:  Illuminates as soon as malfunction occurs.

• Normality Judgment

Judge OK when the malfunction criteria below are completed.

• Judgment Value

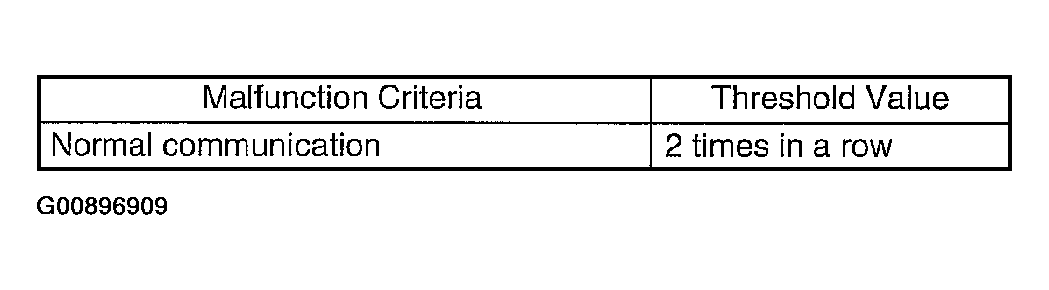

Fig 2: Normality Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.
