Diagnostic Method

Judge NG when the continuous time of completing the malfunction criteria below becomes more than the time needed for diagnosis (10 seconds). Judge OK and clear NG when the malfunction criteria below are not completed.

Judgment Value

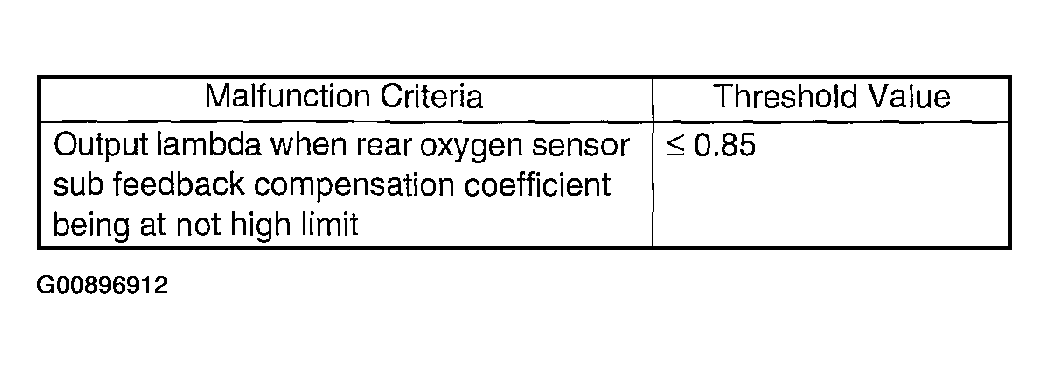

Fig 1: Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  10 seconds

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.
