Diagnostic Trouble Code (DTC) Detecting Criteria (H6DO)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P1153: O2 Sensor Circuit Range/Performance (High) (Bank 1 Sensor 1)
>>
Enable Condition
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Enable Condition

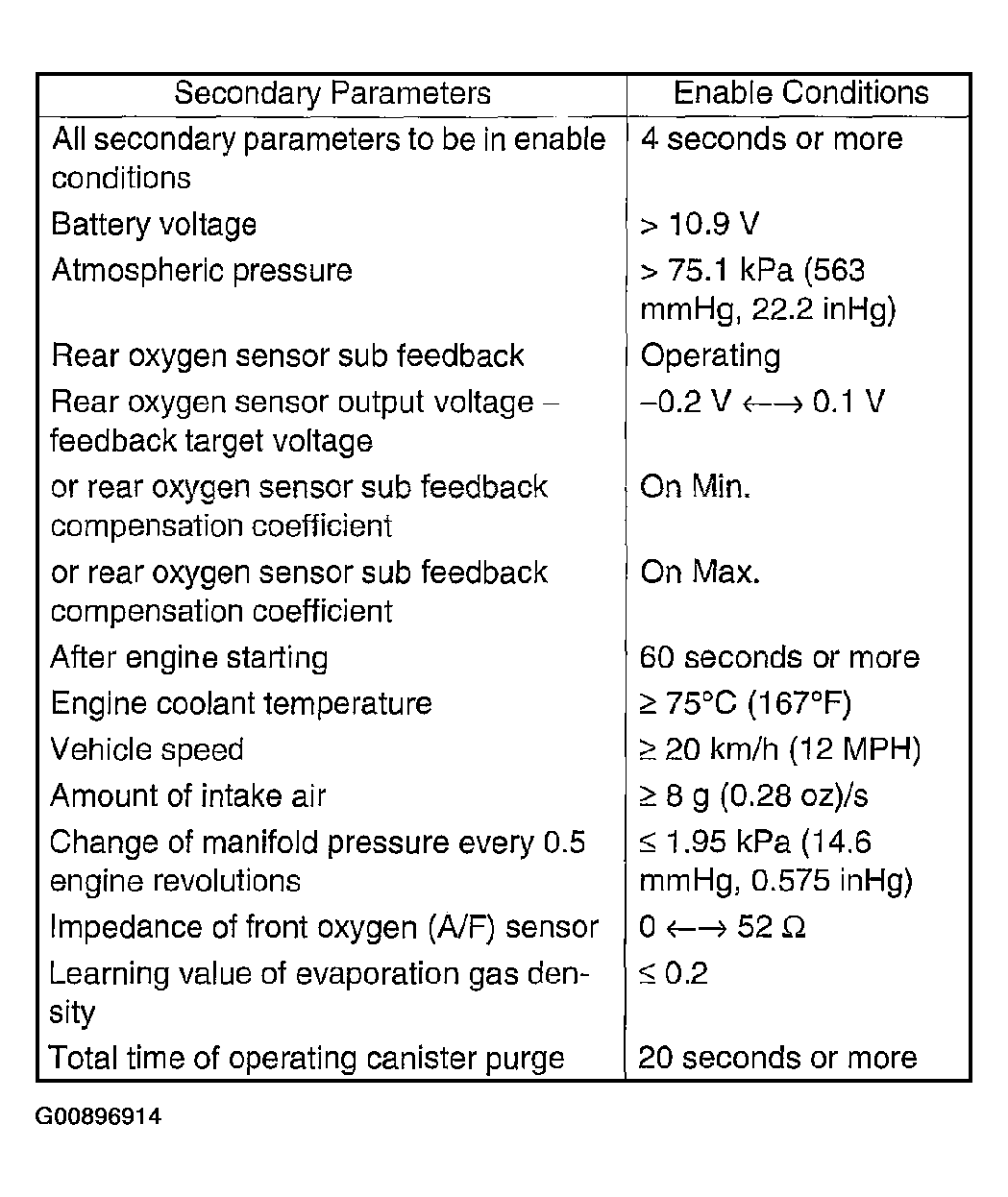

Fig 1: Enable Condition Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
