Diagnostic Method

• Abnormality Judgment

Judge NG when the cumulative time of completing the malfunction criteria below becomes more than 2.5 seconds.

• Judgment Value

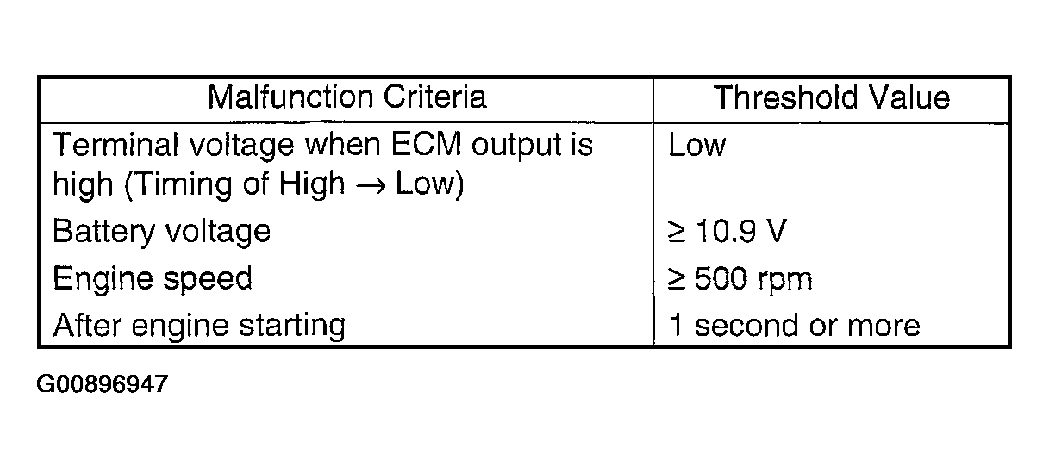

  Fig 1: Abnormality Judgment Value Table

  Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  2.5 seconds

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in two continuous drive cycles.

• Normality Judgment

Judge OK and clear NG when the malfunction criteria below is completed.

• Judgment Value

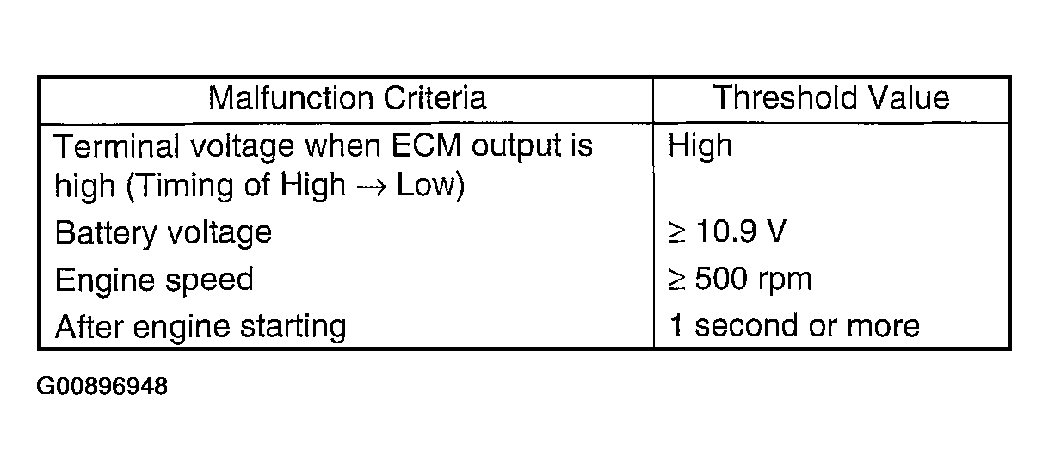

Fig 2: Normality Judgment Value Table

Courtesy of SUBARU OF AMERICA, INC.
