Judgment Value

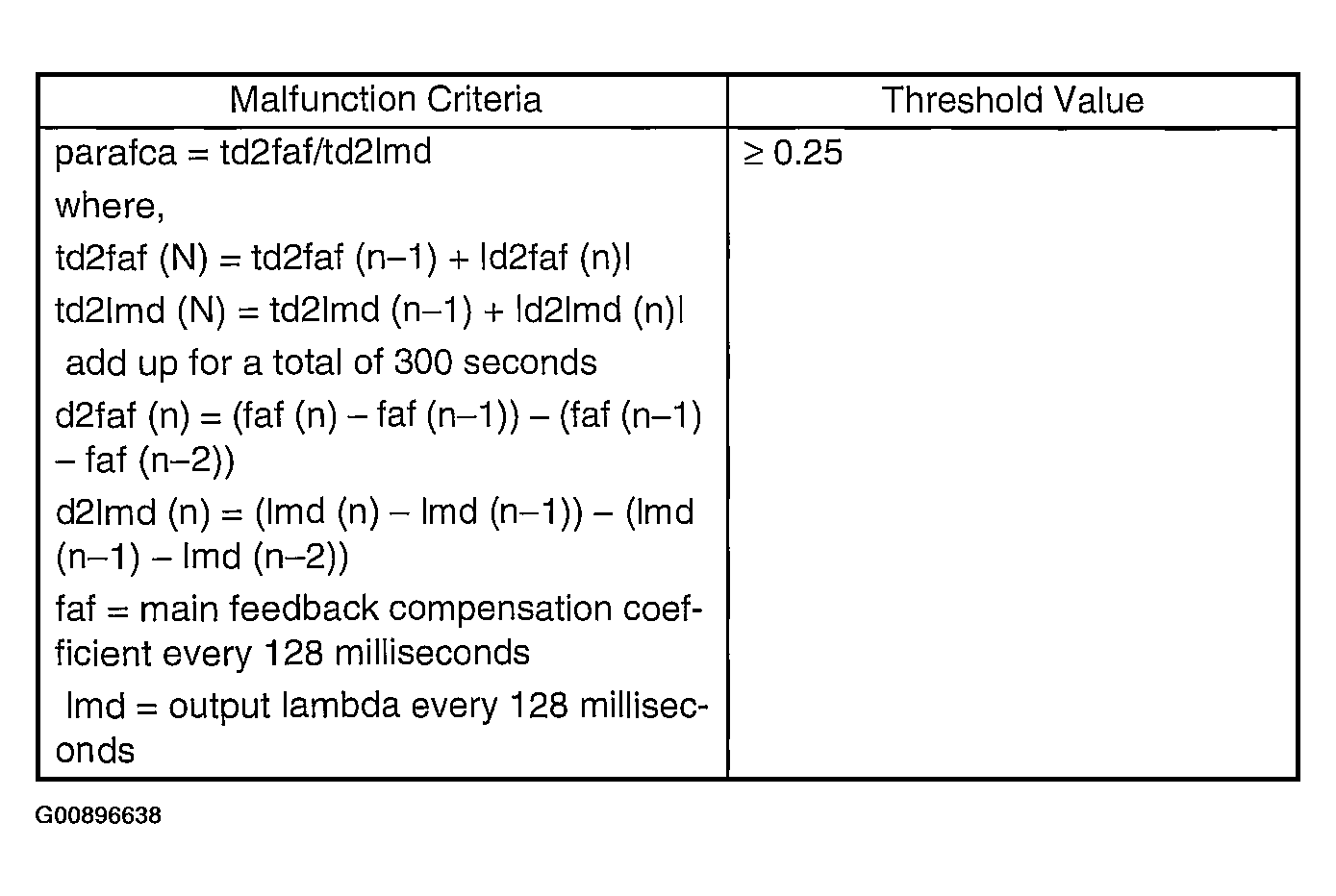

Fig 1: Judgment Value Chart

Courtesy of SUBARU OF AMERICA, INC.

Time Needed for Diagnosis:  300 seconds

Malfunction Indicator Light Illumination:  Illuminates when malfunction occurs in 2 continuous driving cycles.
