Lateral G Sensor Signal

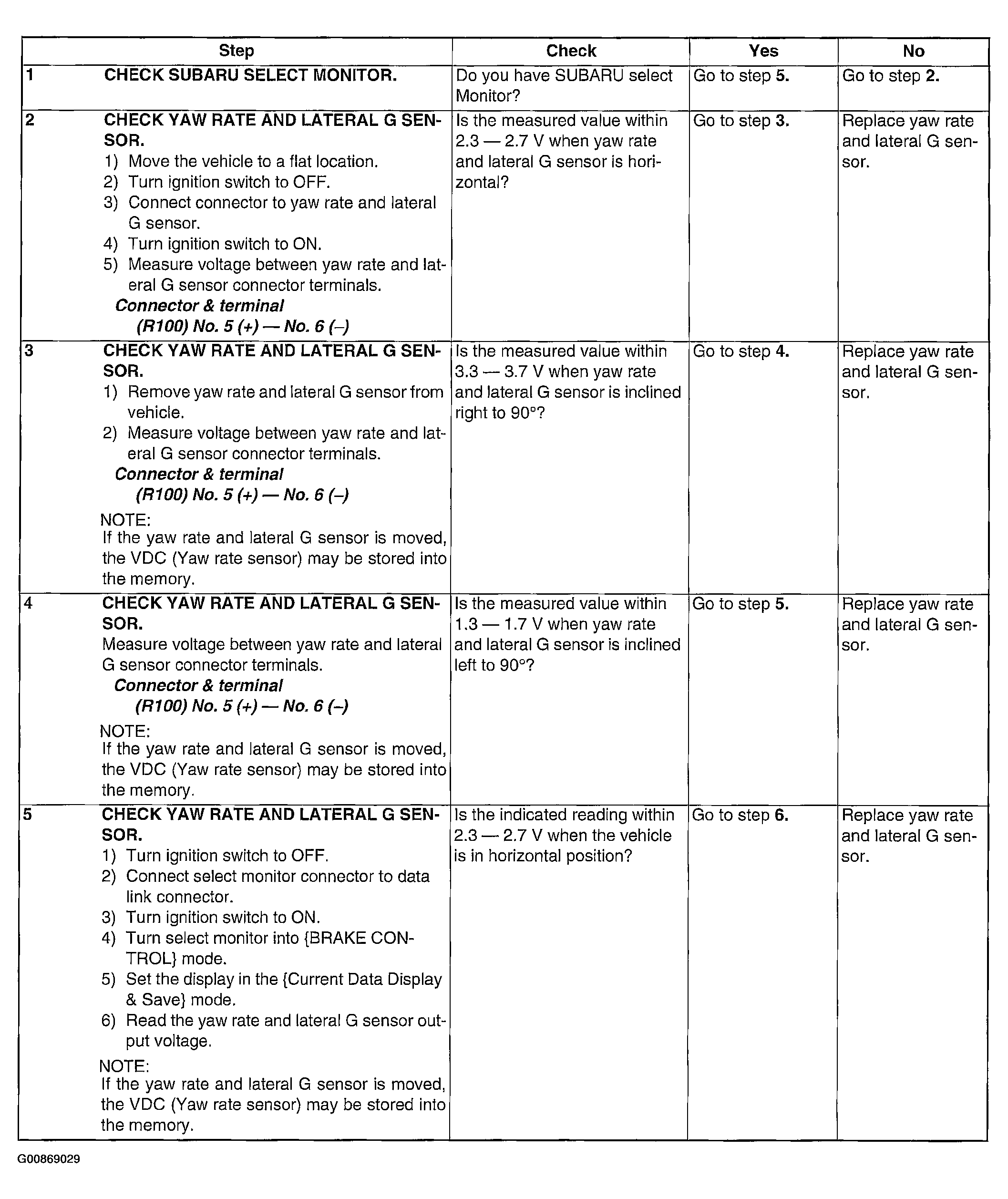

Fig 1: Lateral G Sensor Signal Inspection Chart (1 Of 2)
G00869029Courtesy of SUBARU OF AMERICA, INC.

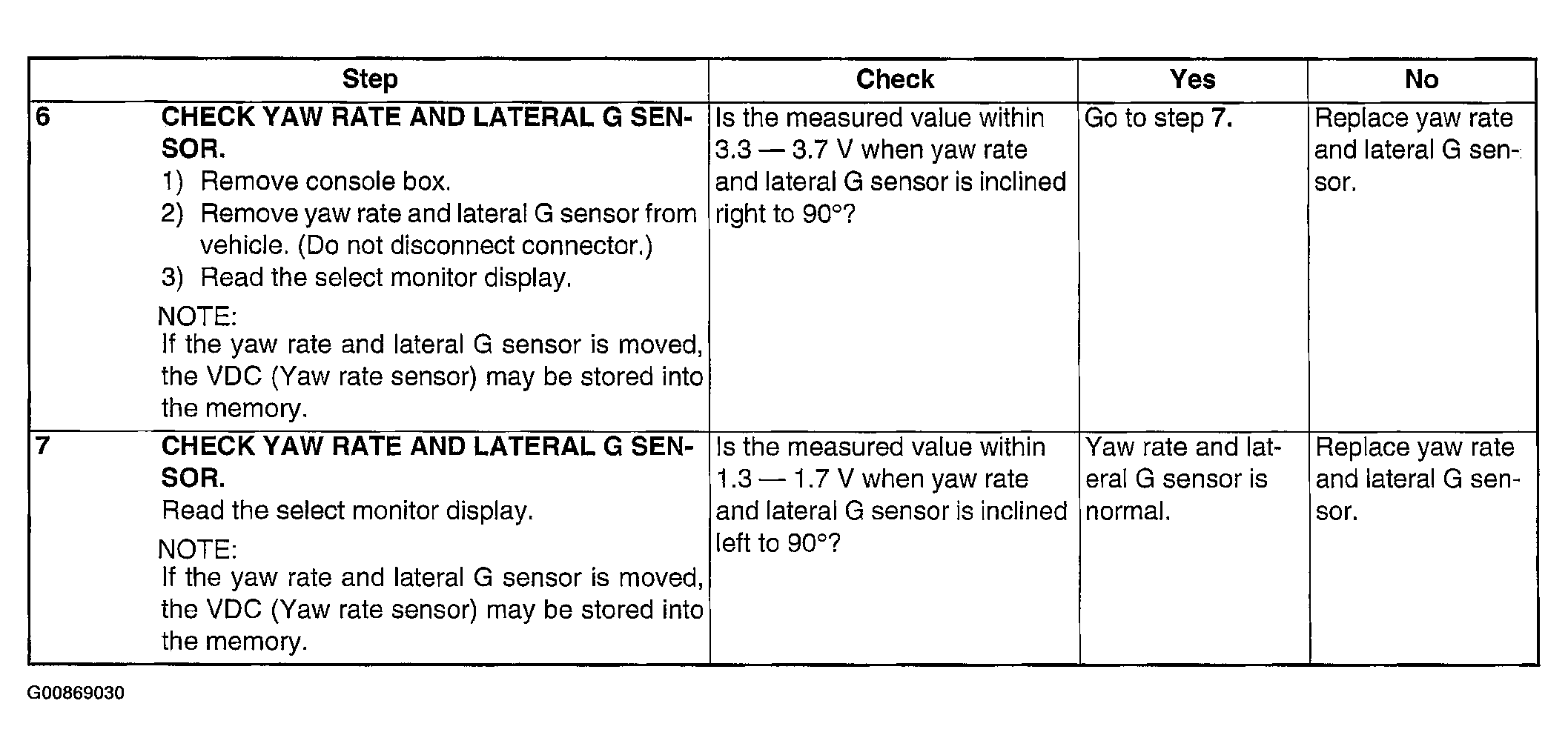

Fig 2: Lateral G Sensor Signal Inspection Chart (2 Of 2)
G00869030Courtesy of SUBARU OF AMERICA, INC.
