Pattern Recognition Method

Pattern Recognition Method has two patterns such as every time misfire on one cylinder and continuous misfire on two cylinders.

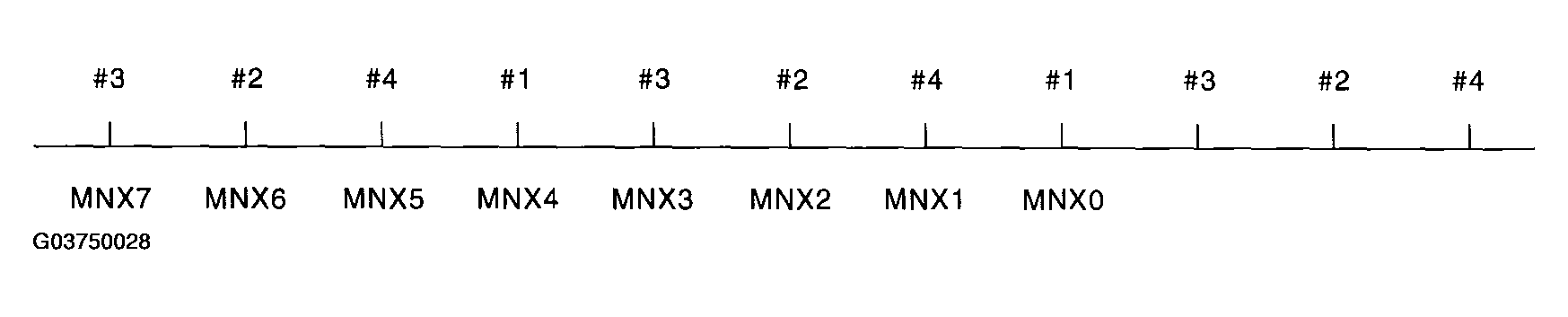

Fig 1: Pattern Recognition Method
G03750028Courtesy of SUBARU OF AMERICA, INC.
