Outline Of Diagnosis: Notes

Detect the malfunction of crankshaft position sensor output property.

Judge NG when continuing not to input the camshaft position sensor signal.

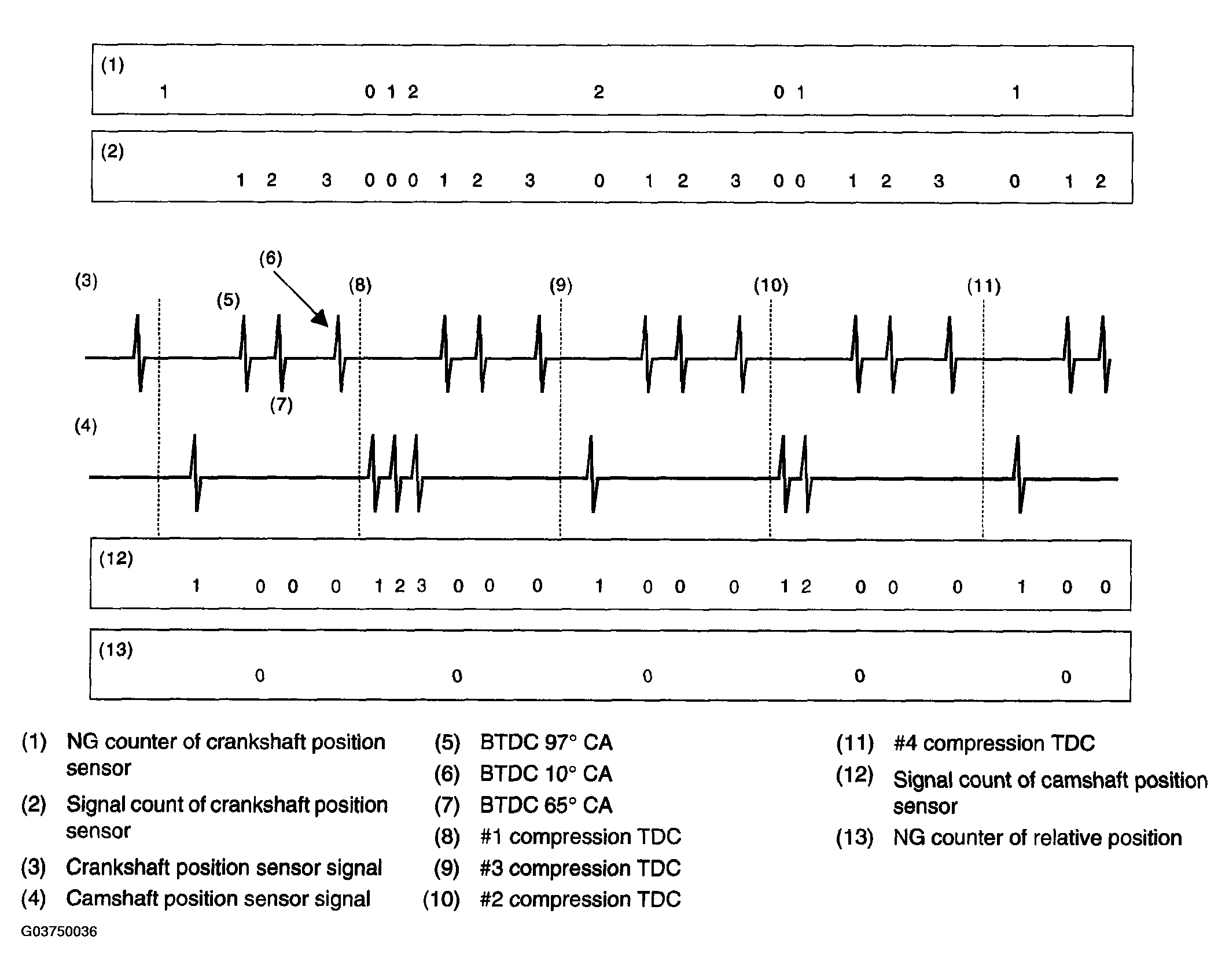

Fig 1: DTC P0340 Diagnosis Outline - Camshaft Position Sensor "A" Circuit - Bank 1 Or Single Sensor
G03750036Courtesy of SUBARU OF AMERICA, INC.
