Purge Control Solenoid Valve Open Fixation

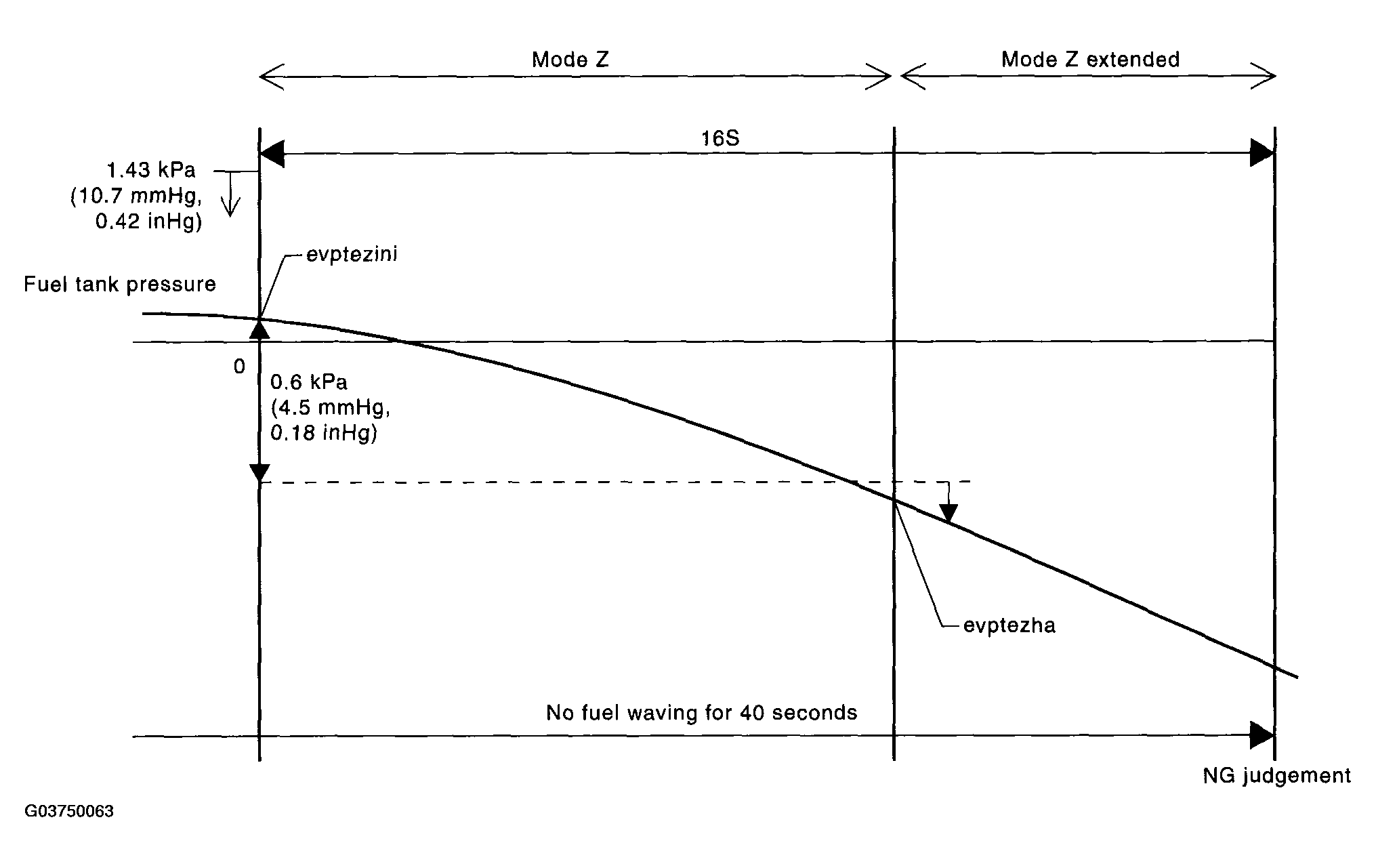

Fig 1: Purge Control Solenoid Valve Open Fixation

Courtesy of SUBARU OF AMERICA, INC.

evptezini </= 1.43 kPa (10.7 mmHg, 0.42 inHg)
No fuel rolling of above 2 l (0.79 US gal, 0.67 Imp gal) for more than 40 seconds.
Judge normal when these calculations are completed.

Cancel the evaporative emission control system diagnosis when the OK/NG judgment for purge control solenoid valve open fixation cannot be made in Mode Z.
