2nd HOLD CONTROL (IN MANUAL MODE)

When the "+" switch is operated when the vehicle is in Manual mode and not moving, the transmission shifts to 2nd speed enabling start in 2nd.This status is held unless the manual mode is canceled, or a speed other than 2nd is selected with the "-" switch. Also, the transmission is held in 2nd when the vehicle is stopped.

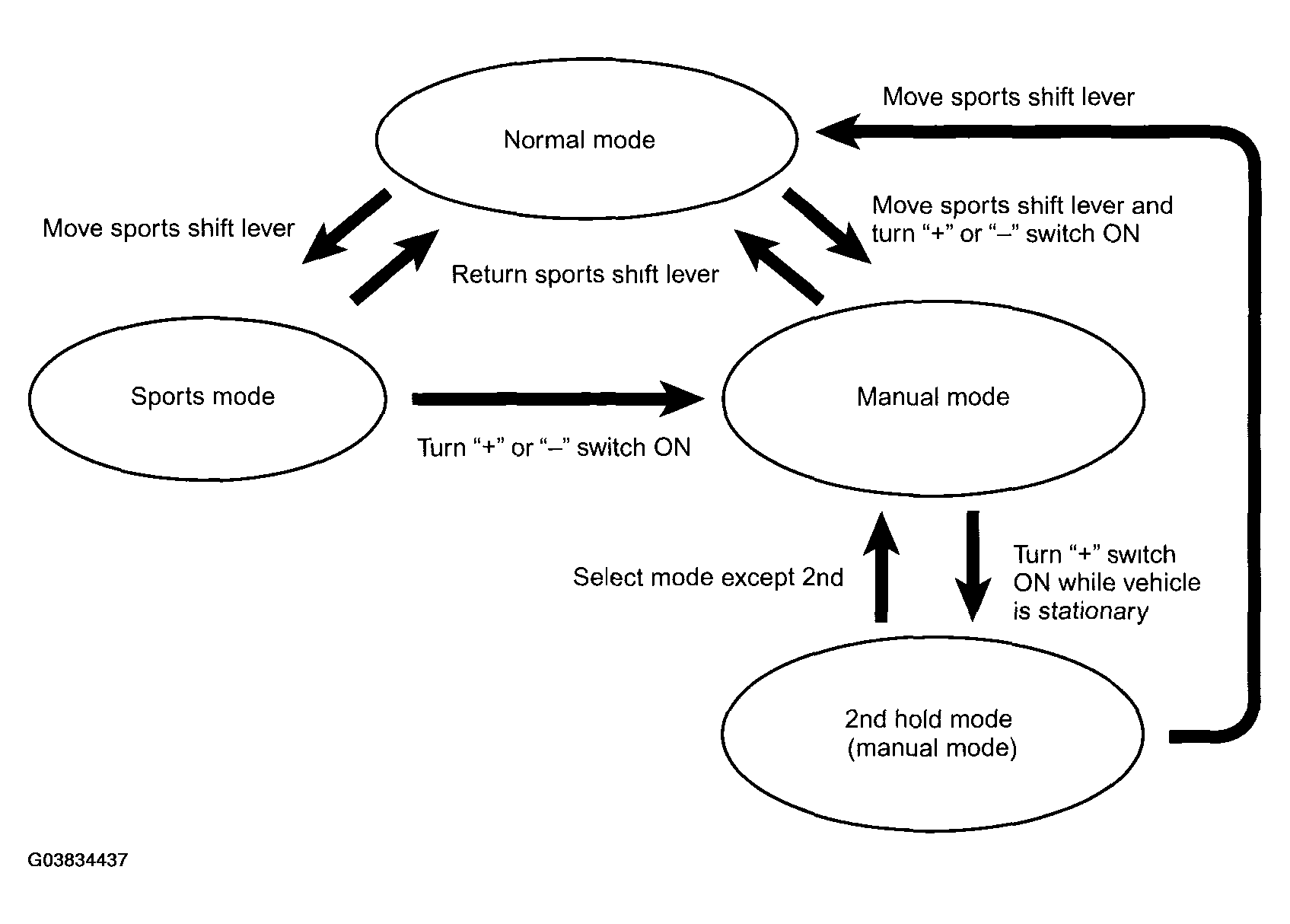

Fig 1: Flow Chart Of 2nd Hold Control (In Manual Mode)
G03834437Courtesy of SUBARU OF AMERICA, INC.
