Propeller Shaft

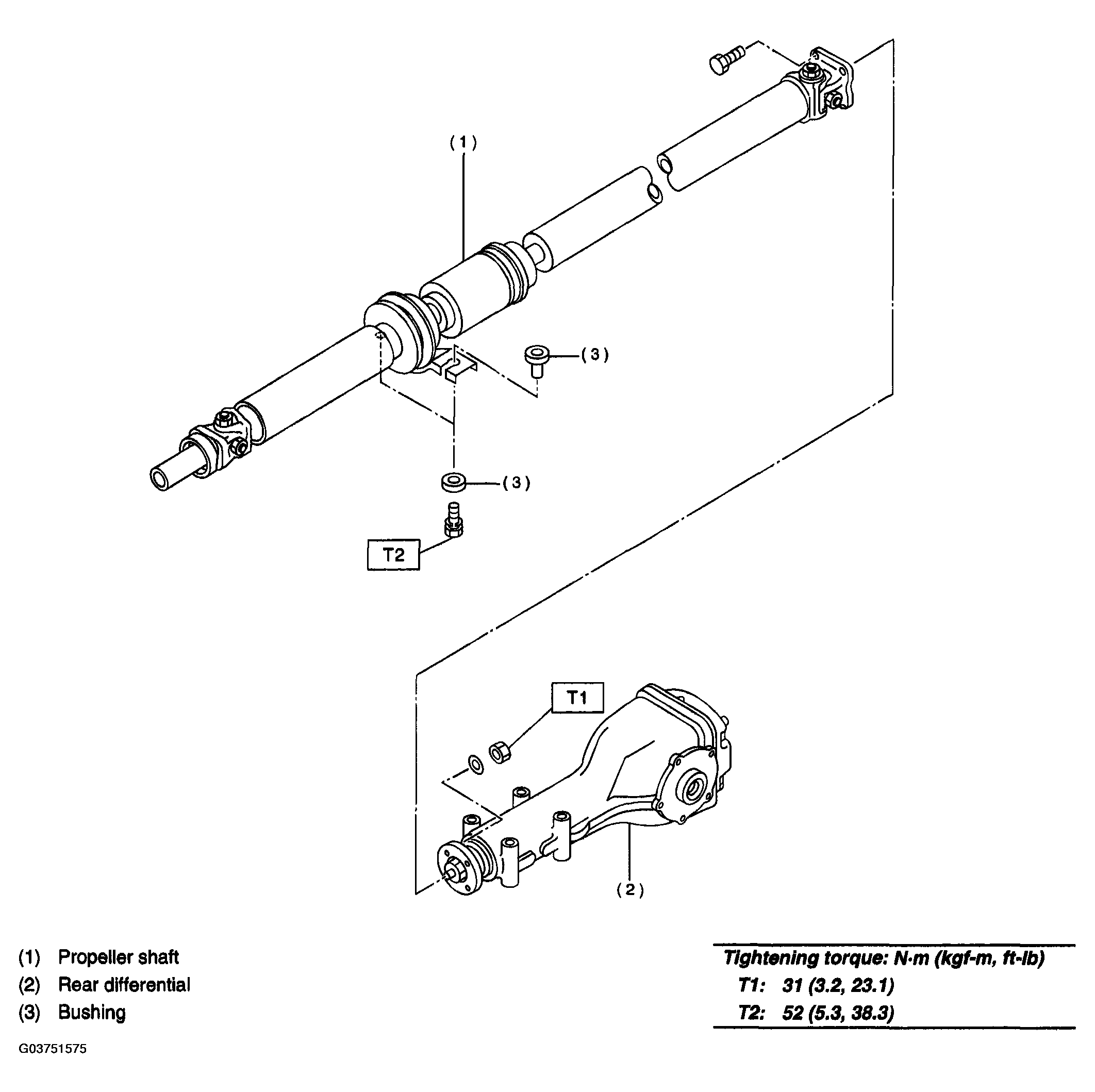

Fig 1: Propeller Shaft Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
