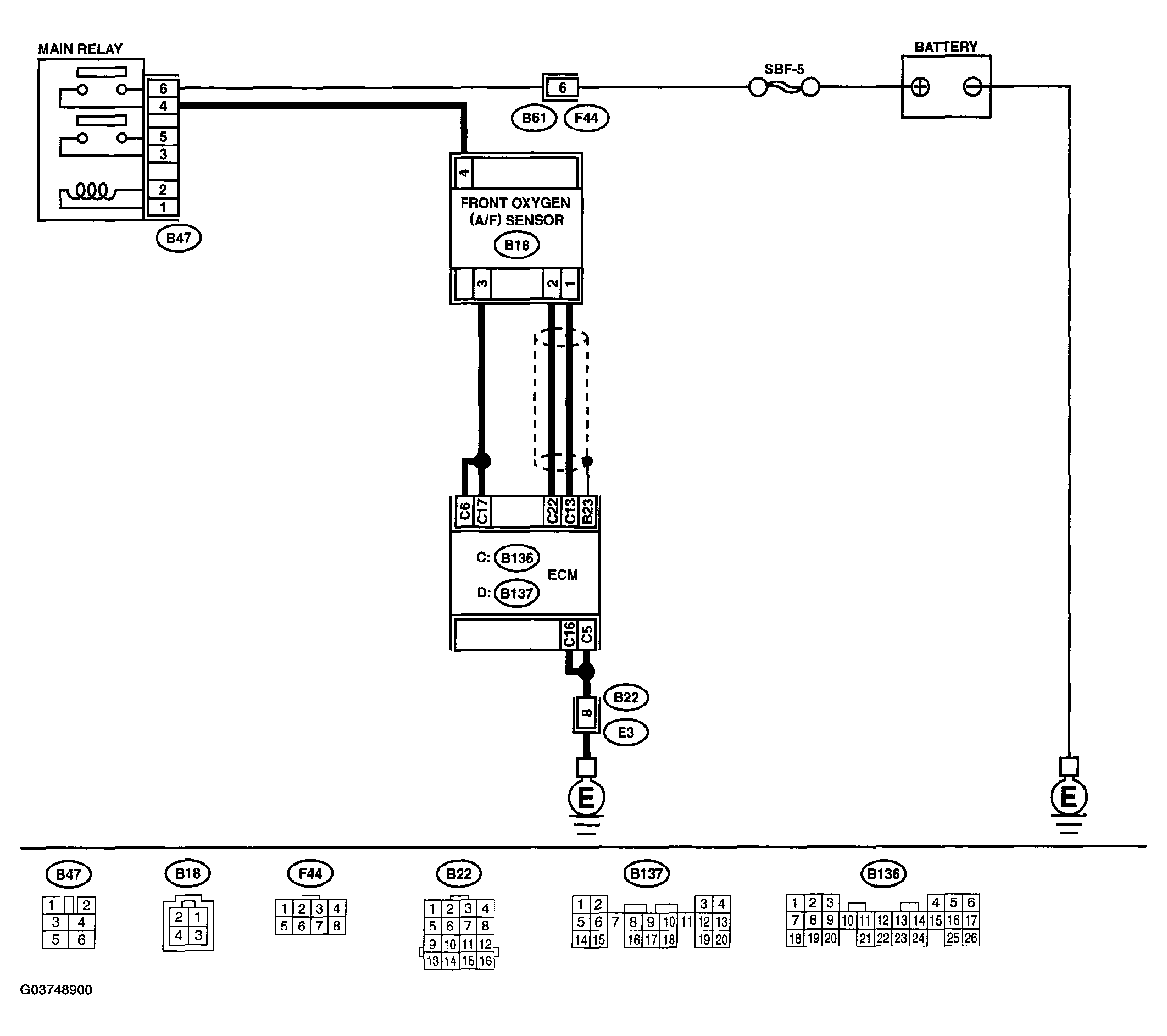

Wiring Diagram:
DIAGNOSTIC STEPS DTC P0130
| Step | Check | Yes | No |
|---|---|---|---|
| 1. CHECK ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Inspect the relevant DTC using LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . | Go to step 2. |
2. CHECK FRONT OXYGEN (A/F) SENSOR DATA.
NOTE:
|
Is the measured value within 0.85 to 1.15 V? | Go to step 3. | Go to step 4. |
3. CHECK FRONT OXYGEN (A/F) SENSOR DATA.
NOTE:
|
Is the measured value more than 1.1 V? | Go to step 6. | Go to step 4. |
4. CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR.
Connector & terminals (B136) No. 13 -(B18) No. 1: (B136) No. 22 -(B18) No. 2: |
Is the measured value less than 5 Ω? | Go to step 5. | Repair open circuit between ECM and front oxygen (A/F) sensor. |
| 5. CHECK HARNESS BETWEEN ECM AND FRONT OXYGEN (A/F) SENSOR. Measure resistance between ECM and chassis ground. Connector & terminals (B136) No. 13 - Chassis ground: (B136) No. 22 - Chassis ground: |
Is the measured value more than 1 MΩ? | Go to step 6. | Repair ground short circuit between ECM and front oxygen (A/F) sensor. |
| 6. CHECK EXHAUST SYSTEM. Check exhaust system parts.
NOTE:
Check the following items.
|
Is there any malfunction in exhaust system? | Repair or replace malfunctioning parts. | Replace front oxygen (A/F) sensor. < Ref. to FRONT OXYGEN (A/F) SENSOR . > |
