Select Cable: Installation

Install the select cable to base plate.
Tightening torque:

18 N.m (1.8 kgf-m, 13.0 ft-lb)
Install the select cable to range select lever.
Install the plate assembly to transmission.
Tightening torque:

T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

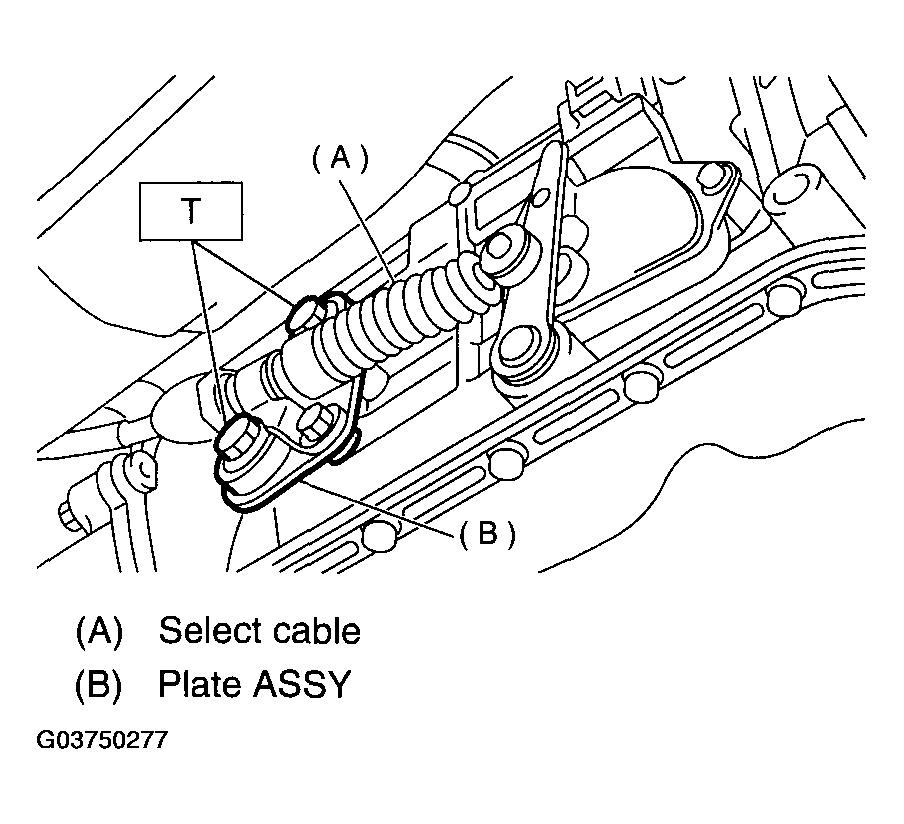

Fig 1: Installing Select Cable And Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.

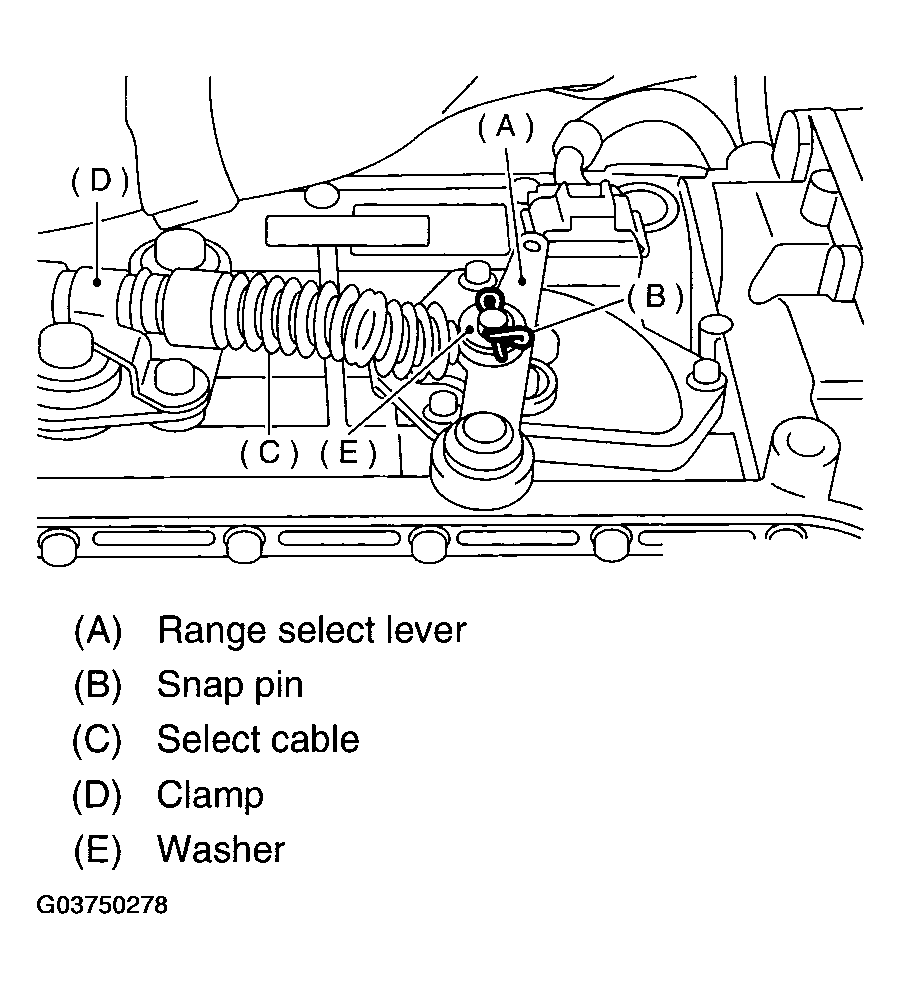

Fig 2: Installing Washer And Snap Pin To Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Move the select lever to "N" position, then adjust the select cable position. < Ref. to , ADJUSTMENT , Select Cable. >
Install the heat shield cover. (If equipped)
Install the front and center exhaust pipe. (Non-TURBO model)
< Ref. to INSTALLATION , Front Exhaust Pipe. >
Install center exhaust pipe. (TURBO model)
< Ref. to INSTALLATION , Center Exhaust Pipe. >
