Select Cable: Removal

  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.
  3. Prior to removal, set the lever to "N" position.
  4. Lift-up the vehicle.
  5. Remove the front and center exhaust pipe. (Non-TURBO model)

    < Ref. to REMOVAL , Front Exhaust Pipe. >

  6. Remove center exhaust pipe. (TURBO model)

    < Ref. to REMOVAL , Center Exhaust Pipe. >

  7. Remove the heat shield cover. (If equipped)
  8. Remove the snap pin from range select lever.

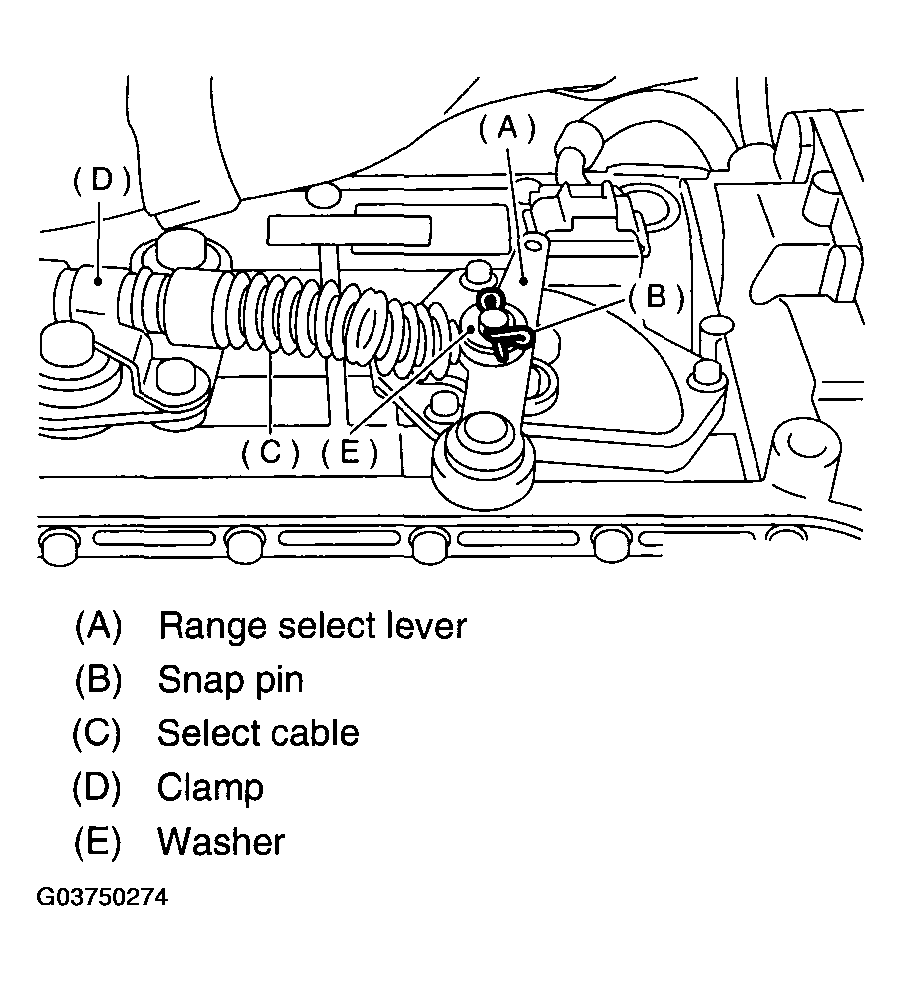

    Fig 1: Removing Snap Pin From Range Select Lever
    G03750274Courtesy of SUBARU OF AMERICA, INC.
  9. Remove the plate assembly from transmission case.

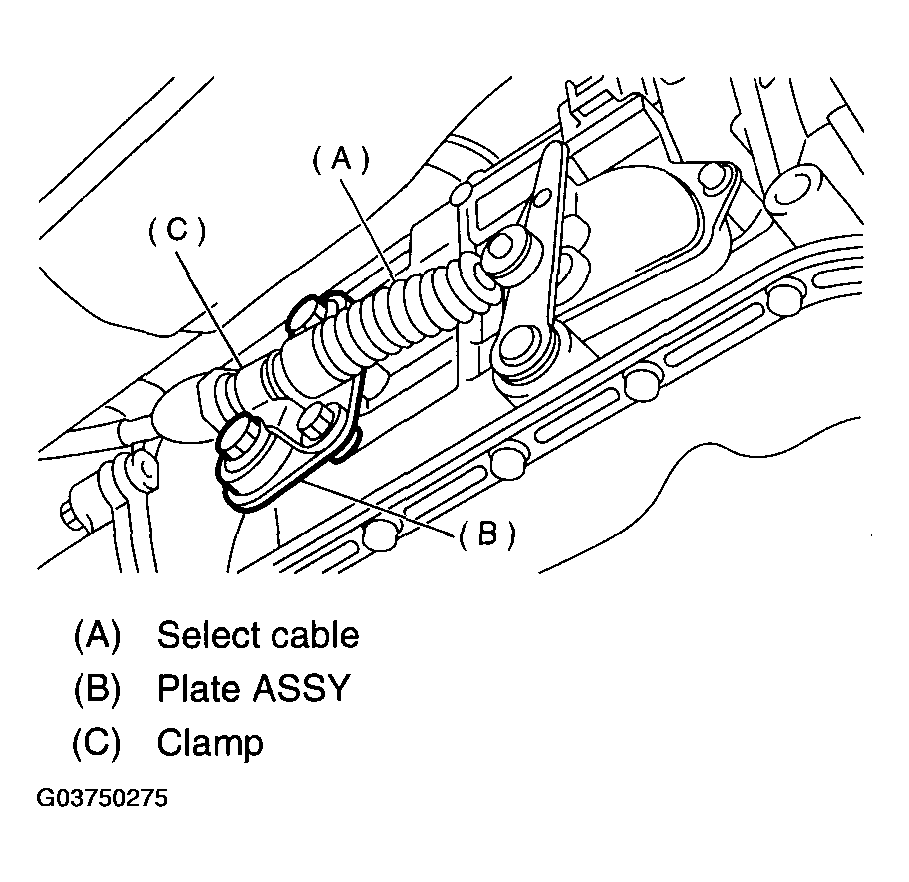

    Fig 2: Removing Plate Assembly From Transmission Case
    G03750275Courtesy of SUBARU OF AMERICA, INC.
  10. Disconnect the cable from select lever, and then remove the cable bracket.

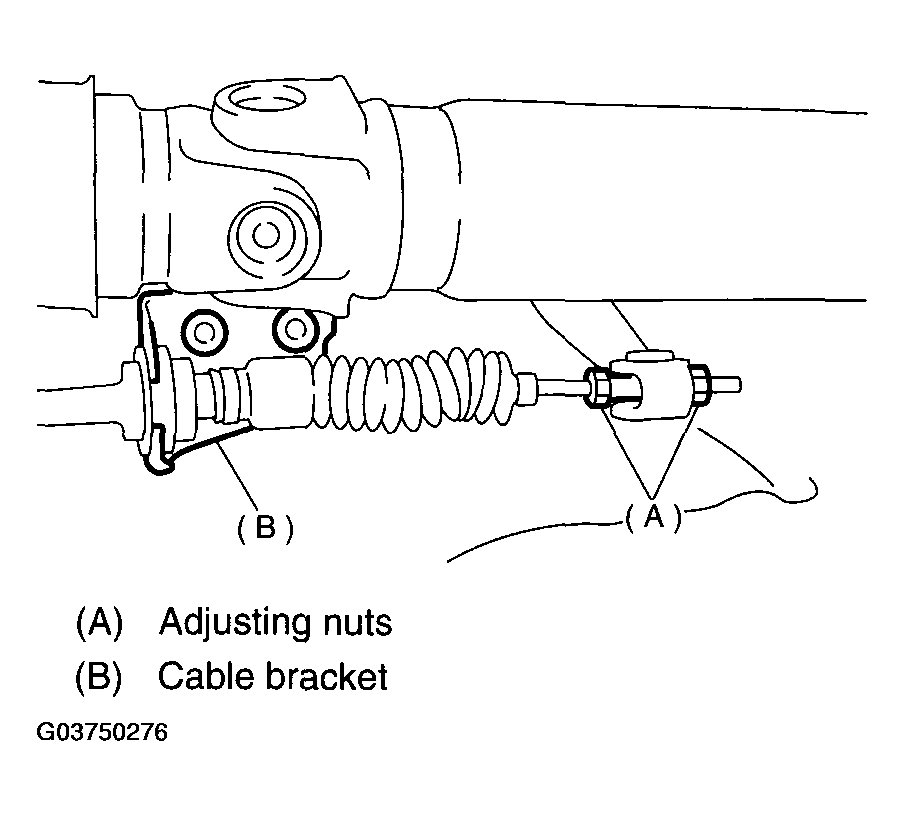

    Fig 3: Removing Cable Bracket
    G03750276Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the select cable from plate assembly.
