Except Sport Shift Model

Remove four washers and then detach rubber boot.
Remove bolts and then remove cable bracket and plate.

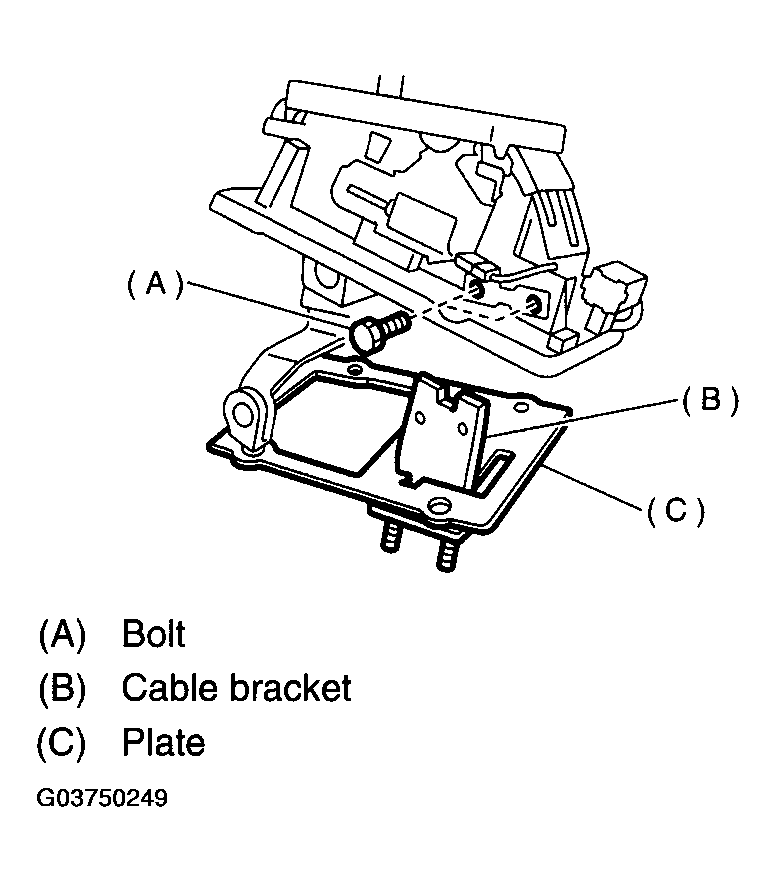

Fig 1: Removing Bolts, Cable Bracket And Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove select lever grip.
Detach indicator cover and pattern plate.

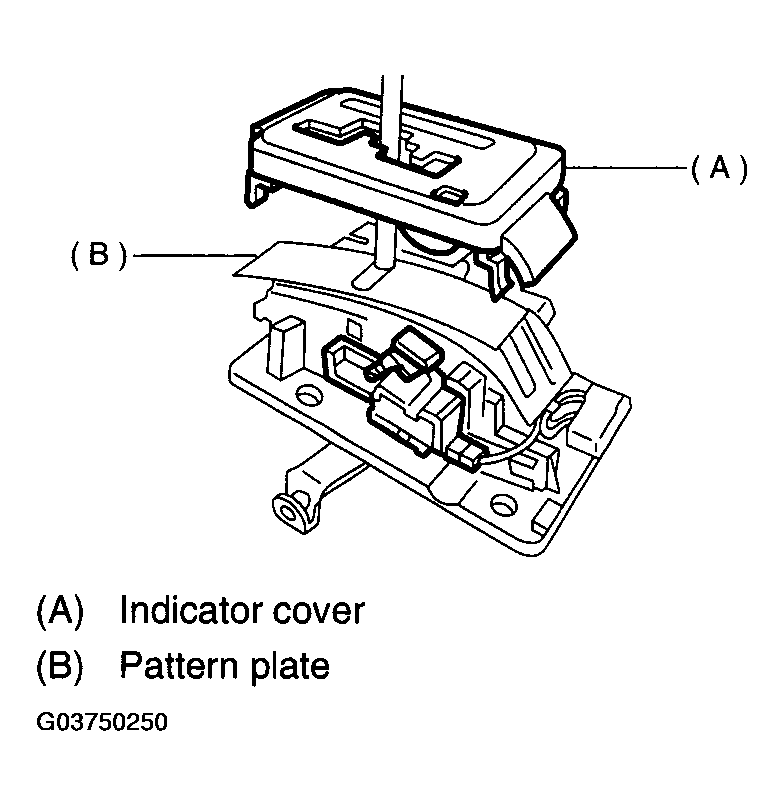

Fig 2: Detaching Indicator Cover And Pattern Plate
Courtesy of SUBARU OF AMERICA, INC.
Disconnect solenoid assembly connector.

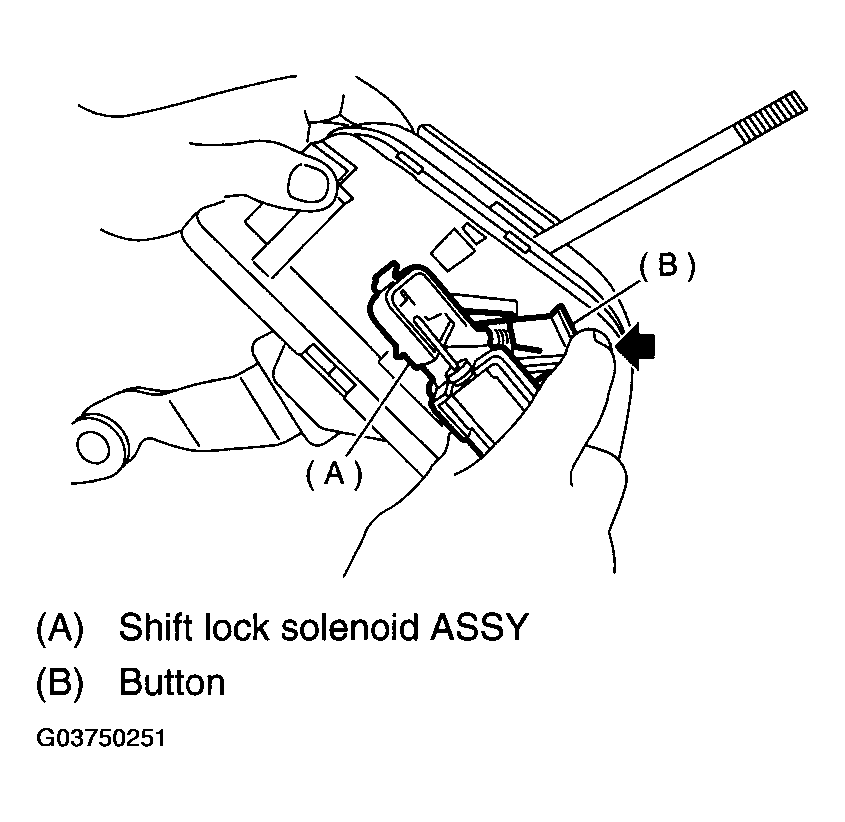

While pressing shift lock cancel button, remove shift lock solenoid assembly.

Fig 3: Removing Shift Lock Solenoid Assembly
Courtesy of SUBARU OF AMERICA, INC.

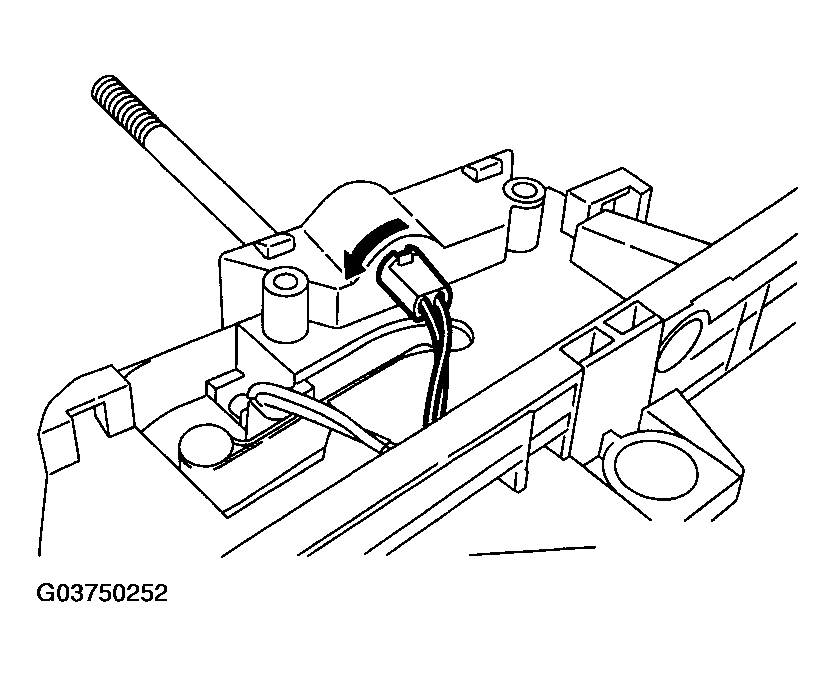

Remove indicator light.

Fig 4: Removing Indicator Light
Courtesy of SUBARU OF AMERICA, INC.
Remove indicator bulb.

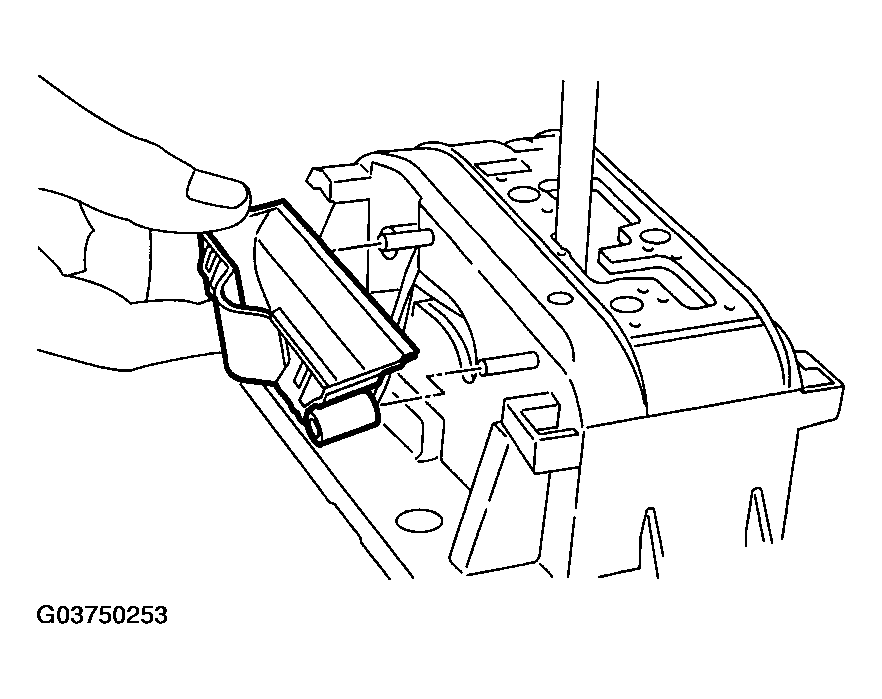

Remove indicator light cover.

Fig 5: Removing Indicator Light Cover
Courtesy of SUBARU OF AMERICA, INC.

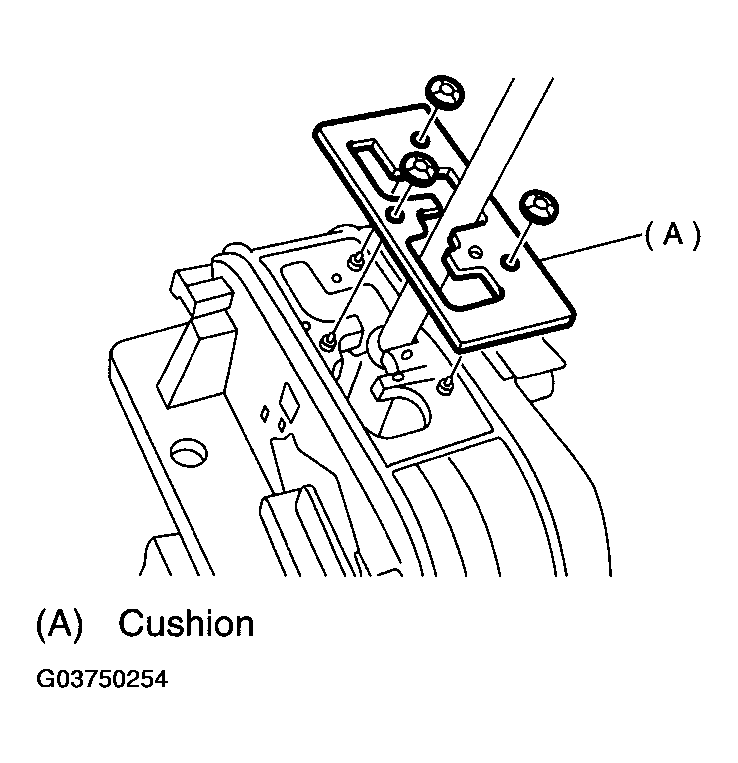

Remove cushion.

Fig 6: Removing Cushion
Courtesy of SUBARU OF AMERICA, INC.

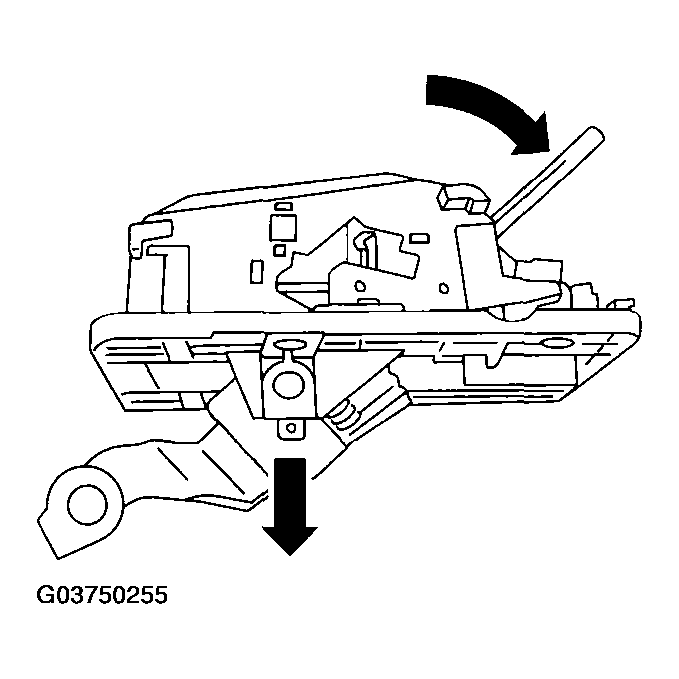

Tilt lever forward and pull down to separate it from frame.

Fig 7: Tilting Lever Forward
Courtesy of SUBARU OF AMERICA, INC.

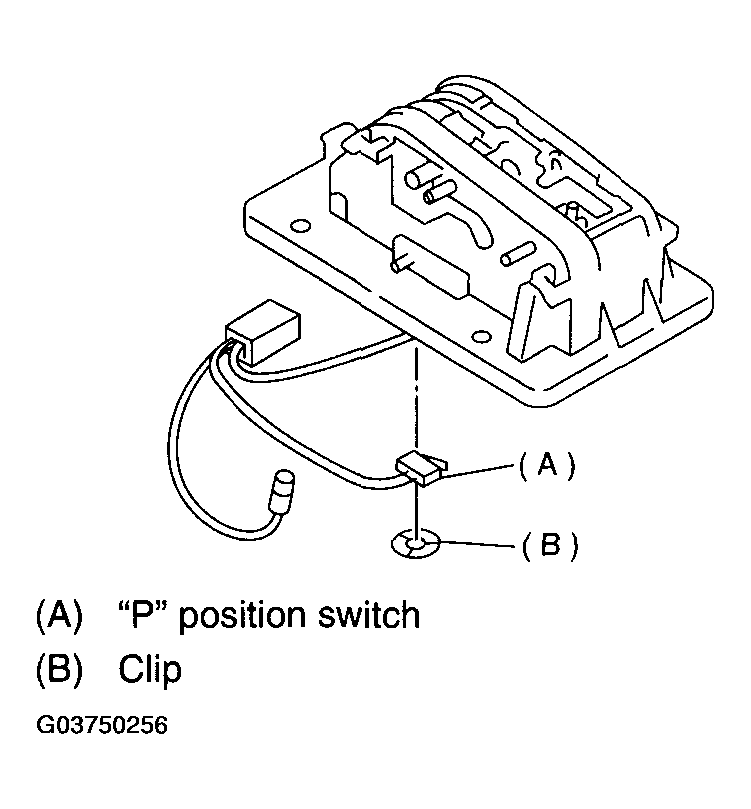

Remove clip, and "P" position switch with harness.

Fig 8: Removing Clip, And "P" Position Switch With Harness
Courtesy of SUBARU OF AMERICA, INC.

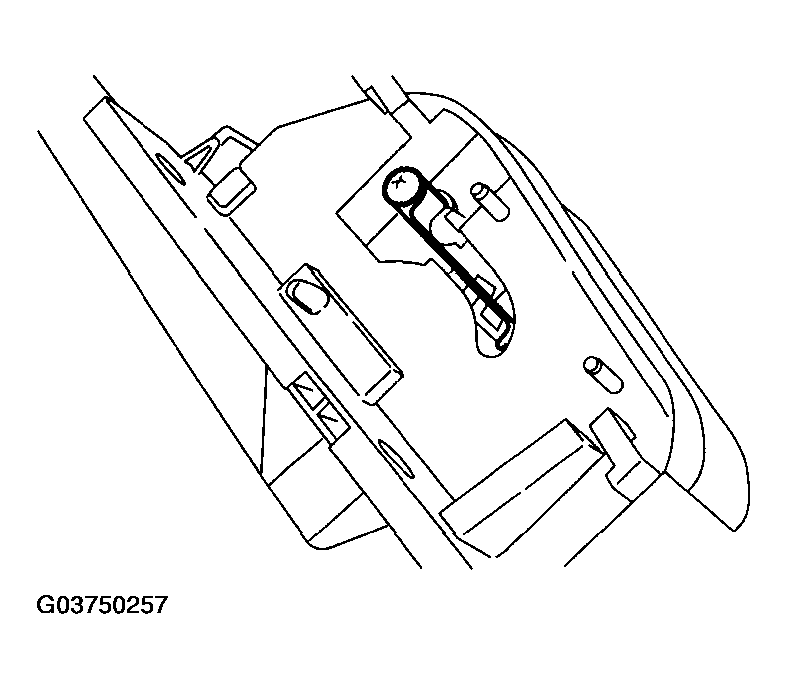

Remove detent spring.

Fig 9: Removing Detent Spring
Courtesy of SUBARU OF AMERICA, INC.

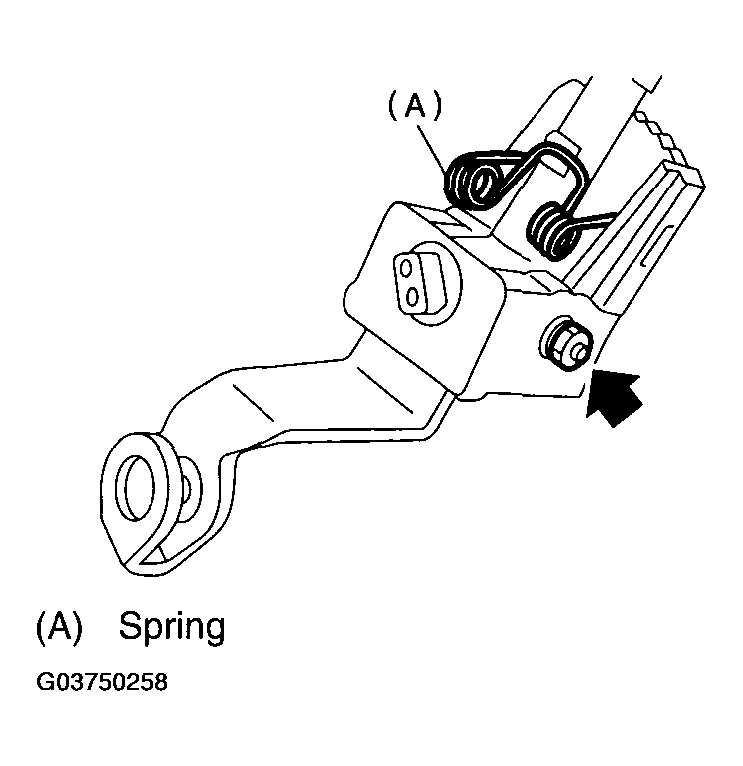

Remove spring.
CAUTION: Wear goggles. Do not allow spring to fly out during removal.
Remove bolt and then disconnect lever upper and lever lower.

Fig 10: Disconnecting Lever Upper And Lever Lower
Courtesy of SUBARU OF AMERICA, INC.
