Cruise Control Module: Service and Repair

Cruise Control Module

NOTE:
MODEL WITH ELECTRONIC CONTROL THROTTLE
Cruise control system is controlled by Engine Control Module (ECM).

REMOVAL

1. MODEL WITHOUT ELECTRONIC CONTROL THROTTLE
1. Disconnect ground cable from battery.
2. Remove glove box.

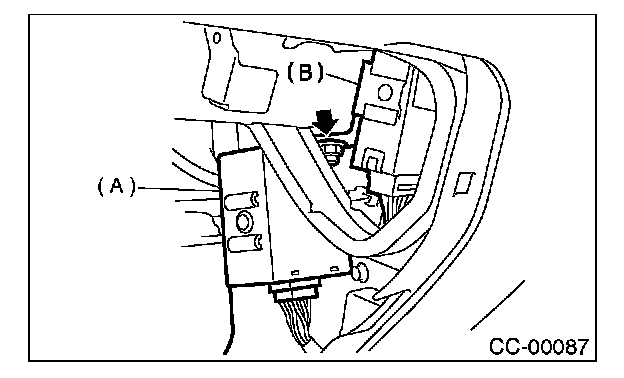

3. Remove nut, then remove cruise control module (A) and the other electrical control module (B) while disconnecting connector.
4. Disconnect cruise control module and the other electrical control module.

2. MODEL WITH ELECTRONIC CONTROL THROTTLE
Refer to Engine Control Module, Removal.

INSTALLATION

1. MODEL WITHOUT ELECTRONIC CONTROL THROTTLE
Install is in the reverse order of removal.

2. MODEL WITH ELECTRONIC CONTROL THROTTLE
Refer to Engine Control Module, Removal.
