Main Relay (Computer/Fuel System): Service and Repair

Main Relay

REMOVAL

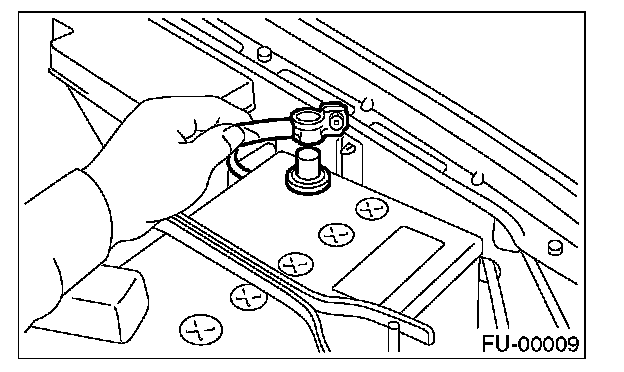

1. Disconnect ground cable from battery.
2. Remove lower inner trim of passenger side.

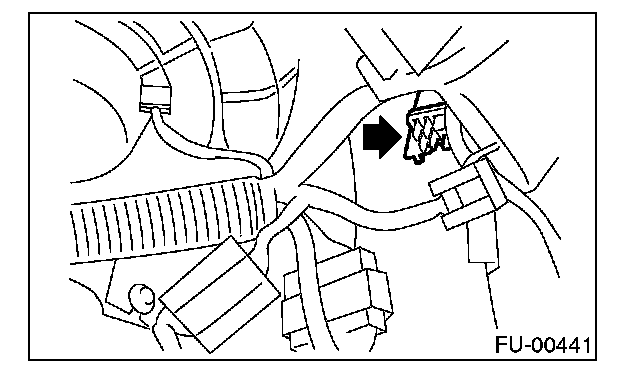

3. Disconnect connectors from main relay.




4. Remove bolt which holds main relay bracket on body.

INSTALLATION
Install in the reverse order of removal.
