Throttle Body: Removal

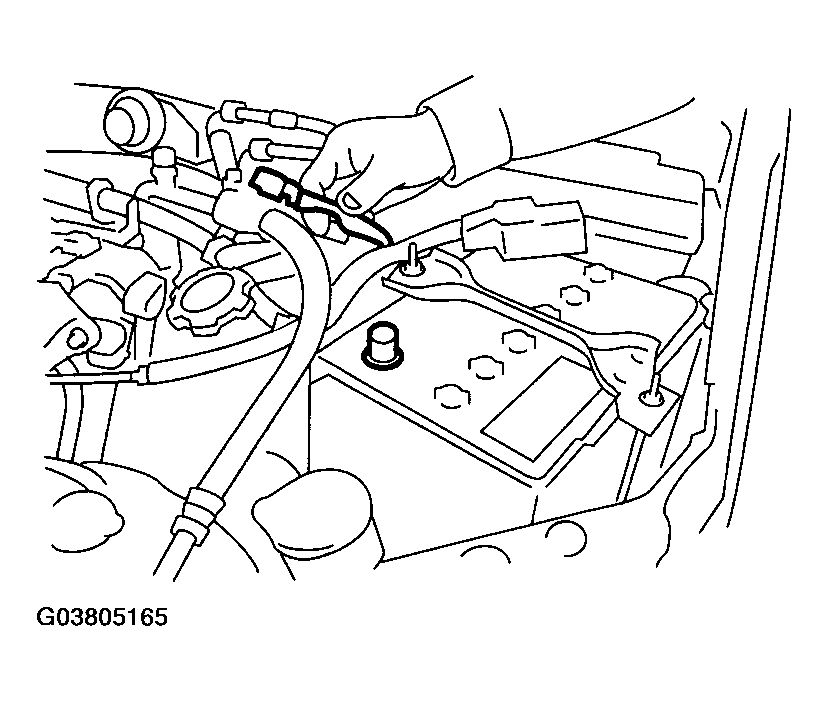

- Disconnect the ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the air intake chamber. < Ref. to
REMOVAL
, Air Intake Chamber.>

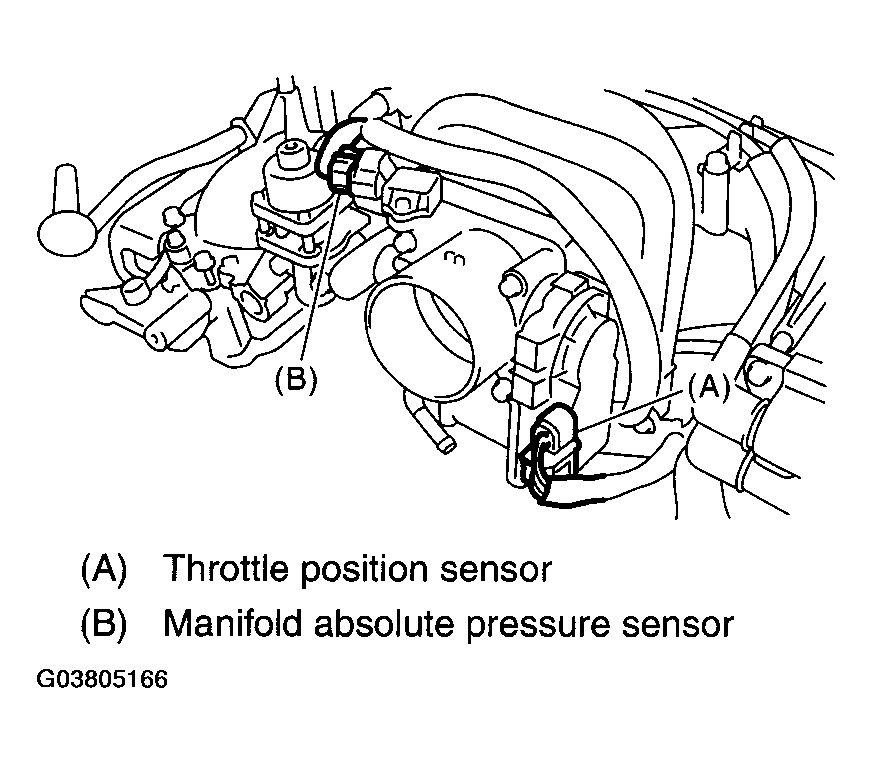

- Disconnect the connectors from the throttle position sensor and manifold absolute pressure sensor.
Courtesy of SUBARU OF AMERICA, INC.

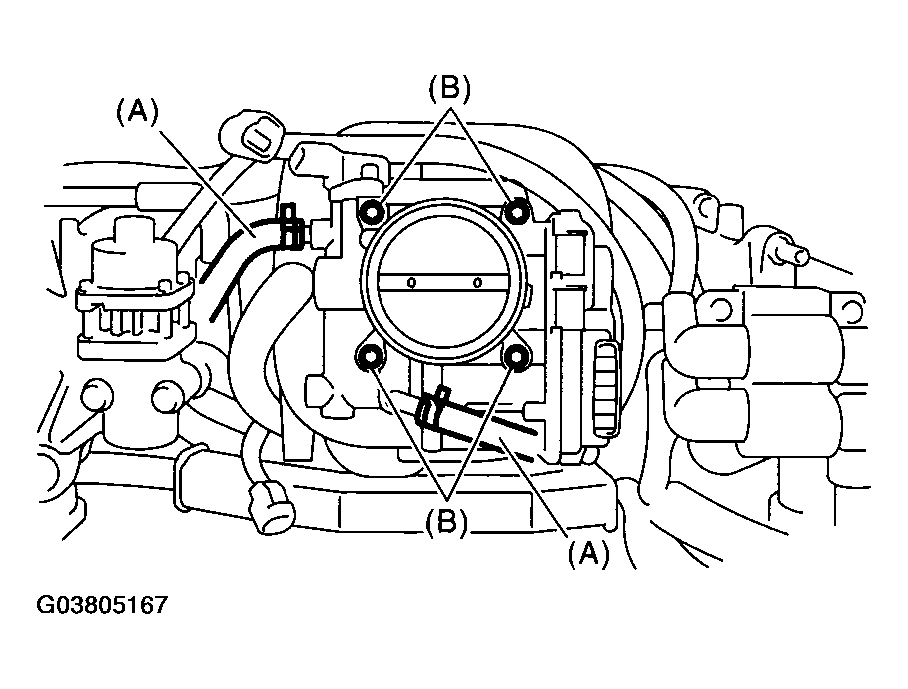

- Disconnect the engine coolant hoses (A) from throttle body.
- Remove the bolts (B) which secure throttle body to intake manifold.
Courtesy of SUBARU OF AMERICA, INC.
