Clutch Switch (Model With Cruise Control)

WARNING: This page is about a different variant/trim than selected.

Install the clutch switch and clutch pedal stopper so that the gap between them is 0 mm (0 in).
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

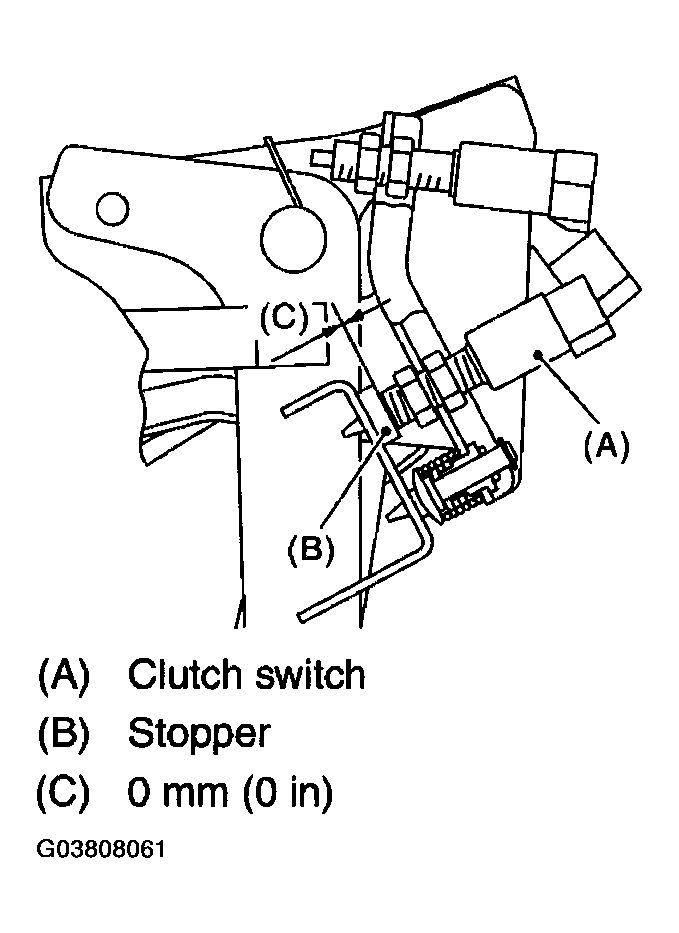

Fig 1: Installing Clutch Switch And Clutch Pedal Stopper
Courtesy of SUBARU OF AMERICA, INC.
Measure stroke of clutch pedal.
Specified clutch pedal full stroke:

A

130 - 135 mm (5.12 - 5.31 in)

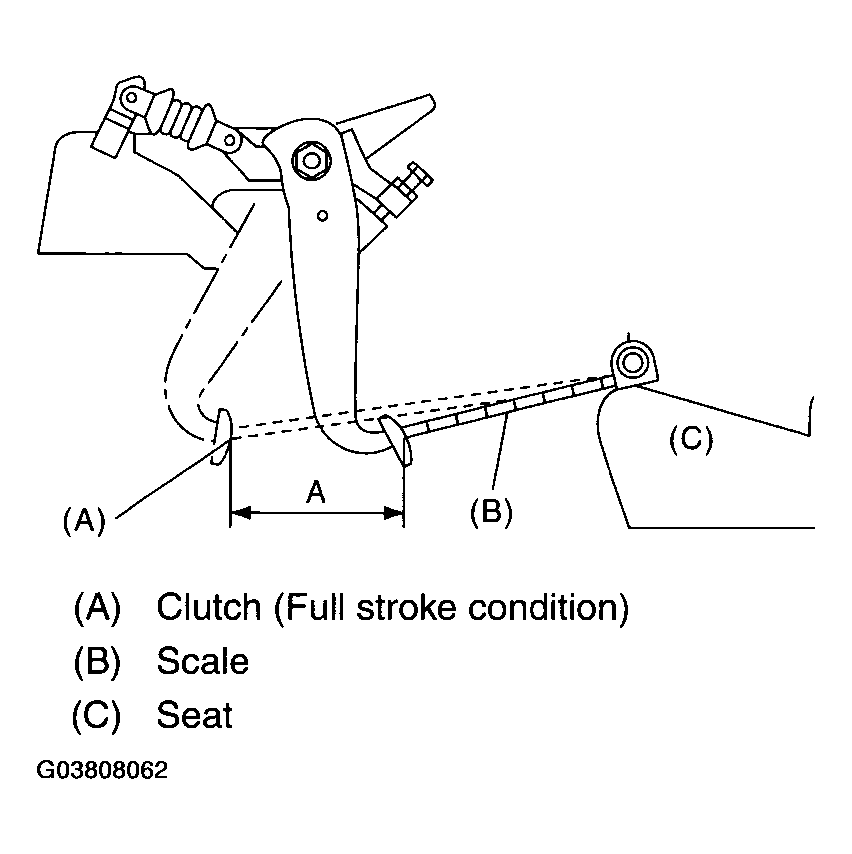

Fig 2: Identifying Clutch Pedal Stroke
Courtesy of SUBARU OF AMERICA, INC.
If the clutch pedal stroke is out of specification, adjust the stroke. < Ref. to ADJUSTMENT , Clutch Pedal. >
Connect clutch switch connector.
