Fuel Pump: Removal

WARNING:

NOTE: The fuel pump assembly consists of a fuel pump and a fuel level sensor.

Release the fuel pressure. < Ref. to RELEASING OF FUEL PRESSURE, PROCEDURE , Fuel. >
Open the fuel filler flap lid and remove the fuel filler cap.
Disconnect the ground cable from battery.
Lift up the vehicle.
Drain the fuel from the fuel tank. < Ref. to DRAINING FUEL, PROCEDURE , Fuel. >
Raise the rear seat and turn the floor mat up.
Remove the access hole cover.

Fig 1: Removing Access Hole Cover
Courtesy of SUBARU OF AMERICA, INC.

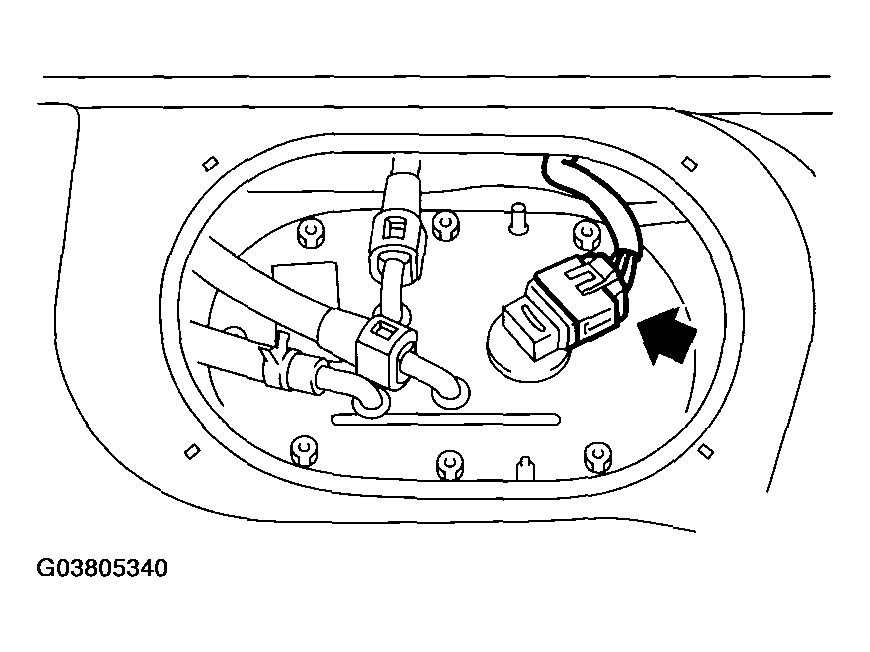

Disconnect the connector from fuel pump.

Fig 2: Disconnecting Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connector and then disconnect the fuel delivery hose and return hose. < Ref. to REMOVAL , Fuel Delivery, Return and Evaporation Lines. >

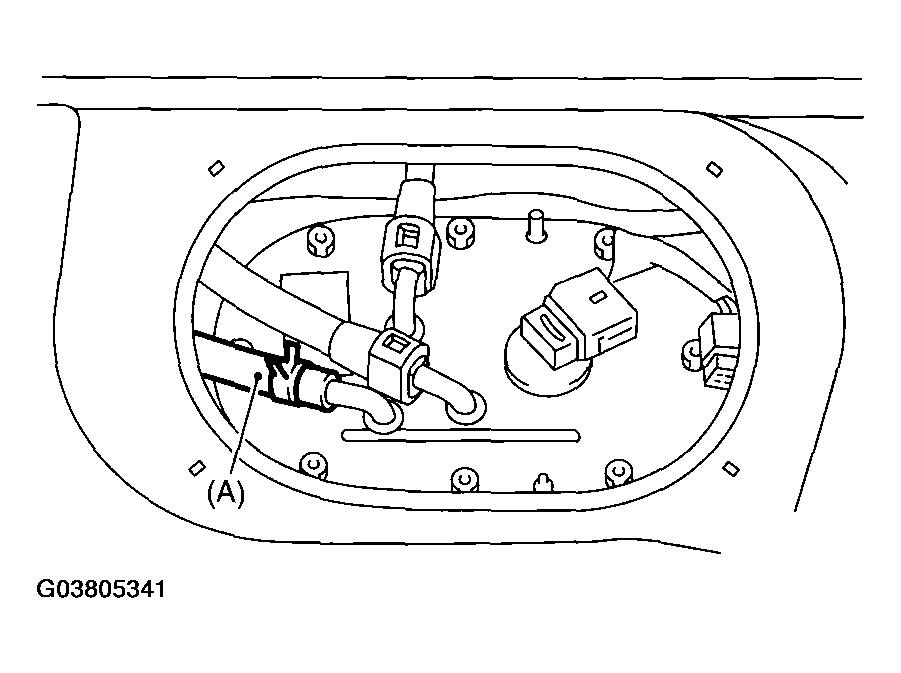

Move the clip and then disconnect the jet pump hose (A).

Fig 3: Disconnecting Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which install the fuel pump assembly onto the fuel tank.

Fig 4: Removing Nuts
Courtesy of SUBARU OF AMERICA, INC.
Take off the fuel pump assembly from the fuel tank.
