Section 10 (Clutch System): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the transmission assembly. < Ref. to REMOVAL , Manual Transmission Assembly. >
  2. Remove the clutch cover and clutch disc. < Ref. to REMOVAL , Clutch Disc and Cover. >
  3. Using the ST, remove the flywheel.

    ST 498497100 CRANKSHAFT STOPPER

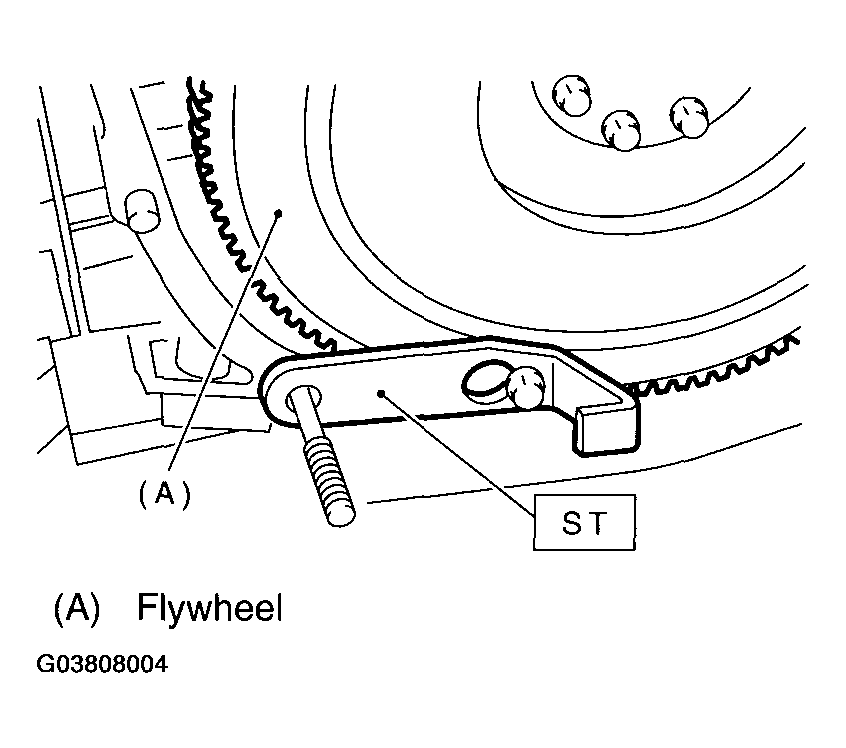

    Fig 1: Removing Flywheel Using Crankshaft Stopper ST 498497100
    G03808004Courtesy of SUBARU OF AMERICA, INC.
