Master Cylinder: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Remove the straight pin and reservoir tank.

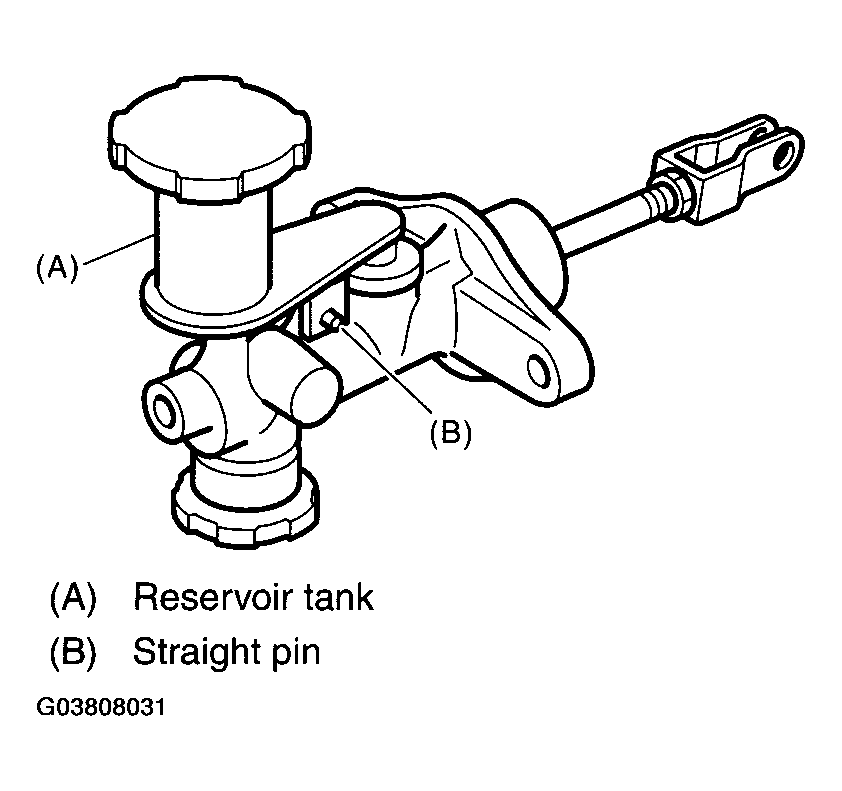

    Fig 1: Removing Straight Pin And Reservoir Tank
    G03808031Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the oil seal.

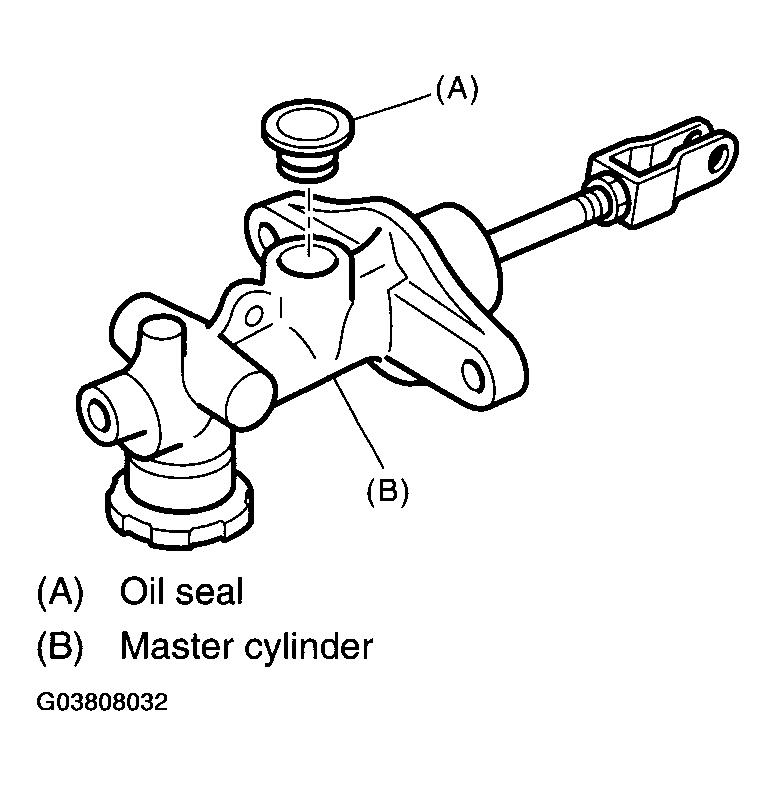

    Fig 2: Removing Oil Seal
    G03808032Courtesy of SUBARU OF AMERICA, INC.
  3. Move the cylinder boot backward.

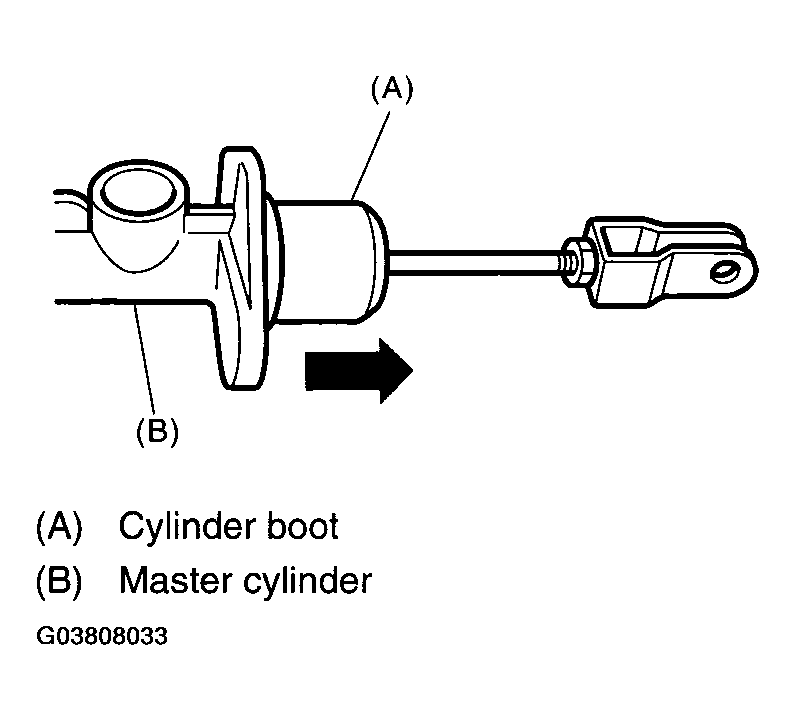

    Fig 3: Moving Cylinder Boot Backward
    G03808033Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the stop ring.
    CAUTION: Be careful when removing the stop ring to prevent the rod, washer, piston and return spring from flying out.
