Control Module I/O Signal: Wiring Diagram

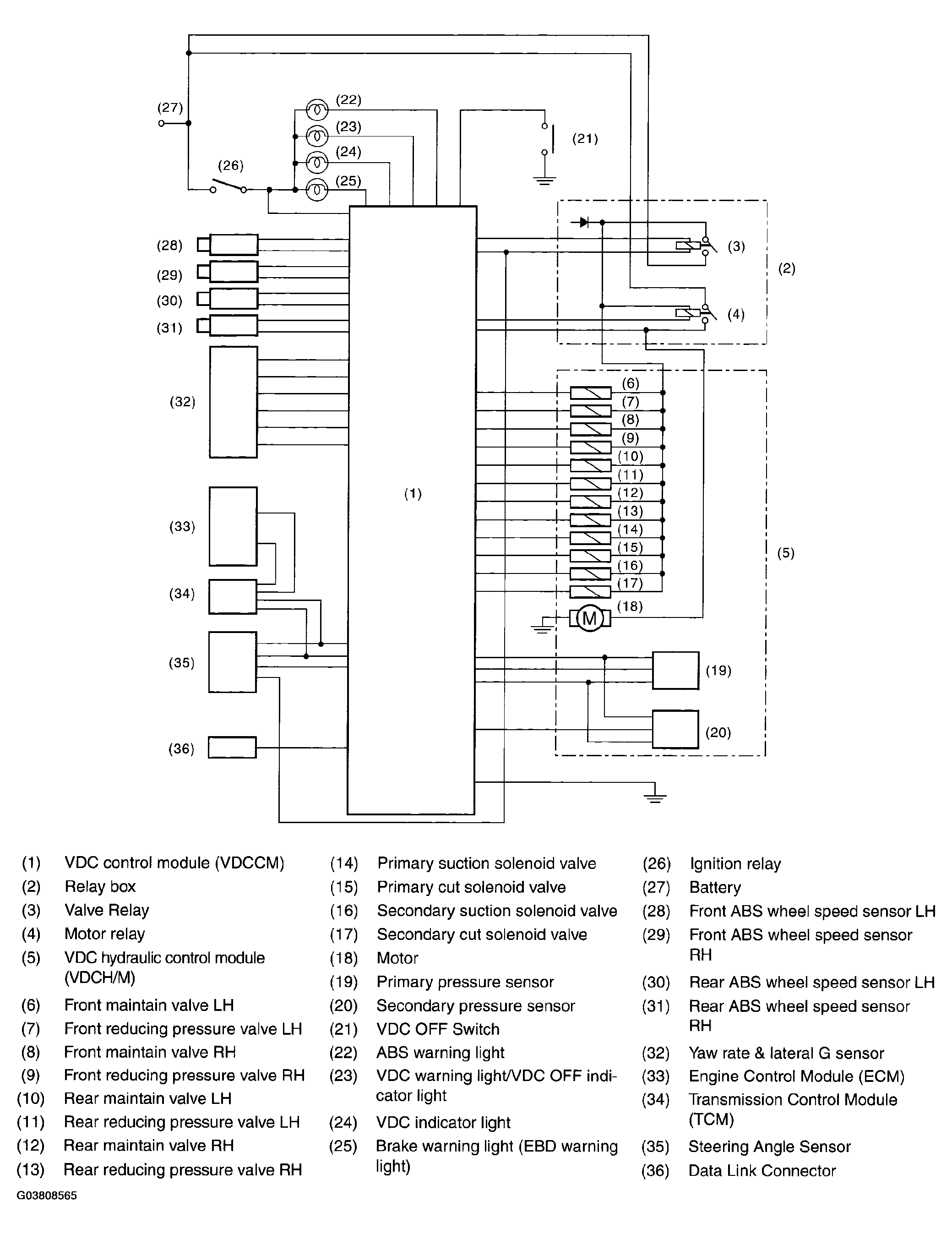

Fig 1: Identifying Control Module I/O Signal Wiring Diagram
G03808565Courtesy of SUBARU OF AMERICA, INC.
