Diagnostic Trouble Code (DTC) Detecting Criteria (H4DOTC)
>>
Diagnostic Trouble Code (DTC) Detecting Criteria
>>
DTC P0133 O Sensor Circuit Slow Response (Bank 1 Sensor 1)
>>
Component Description
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Component Description

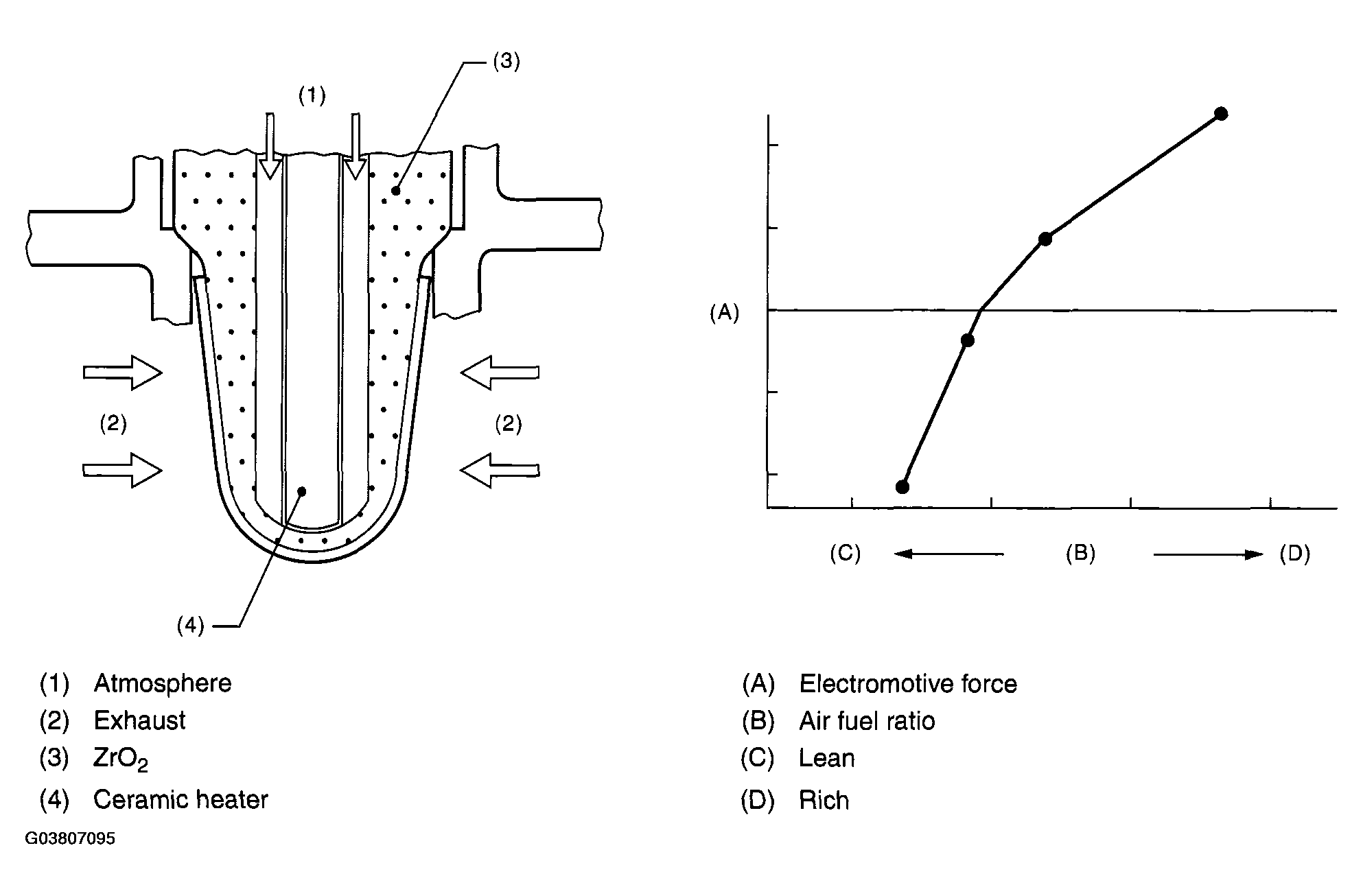

Fig 1: Identifying Front Oxygen (A/F) Sensor Components Description
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
