Electrical Specification

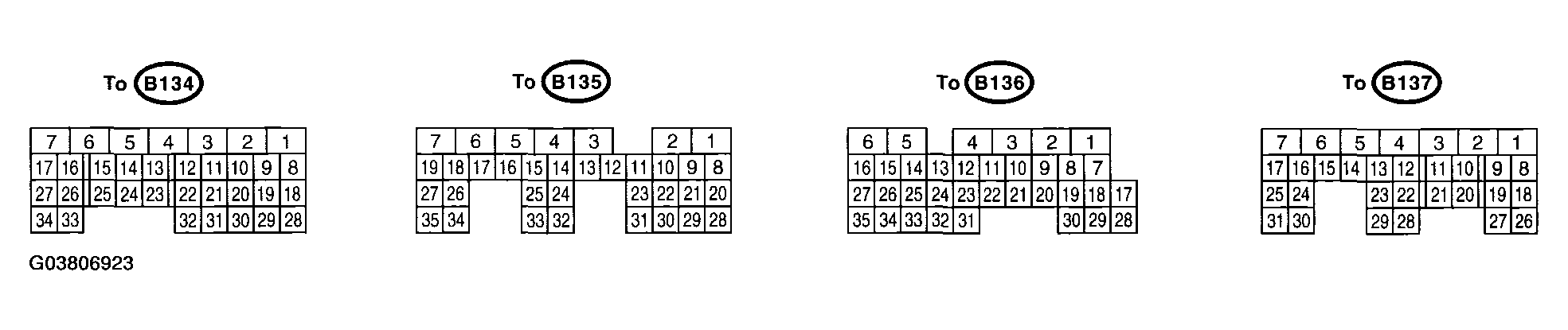

ENGINE CONTROL MODULE (ECM) CONNECTOR TERMINALS ELECTRICAL SPECIFICATION
| Content | Connector No. | Terminal No. | Signal (V) | Note | ||
|---|---|---|---|---|---|---|
| Ignition SW ON (Engine OFF) | Engine ON (Idling) | |||||
| Crankshaft position sensor | Signal (+) | B135 | 10 | 0 | -7 - +7 | Sensor output waveform |
| Signal (-) | B135 | 22 | 0 | 0 | - | |
| Shield | B135 | 31 | 0 | 0 | - | |
| Rear oxygen sensor | Signal | B137 | 25 | 0 | 0 - 0.9 | - |
| Shield | B137 | 31 | 0 | 0 | - | |
| GND (sensor) | B136 | 35 | 0 | 0 | - | |
| Front oxygen (A/F) sensor heater | Signal 1 | B134 | 3 | 0 - 1.0 | - | Sensor output waveform |
| Signal 2 | B134 | 2 | 0 - 1.0 | - | Sensor output waveform | |
| Rear oxygen sensor heater signal | B135 | 2 | 0 - 1.0 | - | Sensor output waveform | |
| Engine coolant temperature sensor | Signal | B136 | 14 | 1.0 - 1.4 | 1.0 - 1.4 | After warm-up the engine. |
| GND (sensor) | B136 | 35 | 0 | 0 | After warm-up the engine. | |
| Vehicle speed signal | B135 | 27 | 0 or 5 | 0 or 5 | "5" and "0" are repeatedly displayed when vehicle is driven. | |
| Mass air flow sensor | Signal | B136 | 23 | - | 0.3 - 4.5 | - |
| Shield | B136 | 32 | 0 | 0 | - | |
| GND | B136 | 31 | 0 | 0 | - | |
| Intake air temperature sensor signal | B136 | 13 | 0.3 - 4.6 | 0.3 - 4.6 | - | |
| Exhaust temperature sensor | Signal | B136 | 24 | - | - | - |
| GND (sensor) | B136 | 35 | 0 | 0 | - | |
| Tumble generator valve position sensor RH | Signal | B136 | 27 | Fully closed: 3.8 - 4.9 Fully opened: 0.2 - 0.9 | - | |
| Power supply | B136 | 16 | 5 | 5 | - | |
| GND (sensor) | B136 | 35 | 0 | 0 | - | |
| Tumble generator valve position sensor LH | Signal | B136 | 26 | Fully closed: 3.8 - 4.9 Fully opened: 0.2 - 0.9 | - | |
| Power supply | B136 | 16 | 5 | 5 | - | |
| GND (sensor) | B136 | 35 | 0 | 0 | - | |
| Tumble generator valve RH (open) | B134 | 9 | 0 or 10 - 13 | 0 or 13 - 14 | Sensor output waveform | |
| Tumble generator valve RH (close) | B134 | 8 | 0 or 10 - 13 | 0 or 13 - 14 | Sensor output waveform | |
| Tumble generator valve LH (open) | B134 | 11 | 0 or 10 - 13 | 0 or 13 - 14 | Sensor output waveform | |
| Tumble generator valve LH (close) | B134 | 10 | 0 or 10 - 13 | 0 or 13 - 14 | Sensor output waveform | |
| Wastegate control solenoid valve | B134 | 32 | 0 or 10 - 13 | 0 or 13 - 14 | Sensor output waveform | |
| Starter switch | B137 | 8 | 0 | 0 | Cranking: 8 - 14 | |
| A/C switch | B137 | 16 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - | |
| Ignition switch | B137 | 15 | 10 - 13 | 13 - 14 | - | |
| Neutral position switch | B137 | 9 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - | |
| Test mode connector | B137 | 14 | 10 - 13 | 13 - 14 | When connected: 0 | |
| Knock sensor | Signal | B136 | 25 | 2.8 | 2.8 | - |
| Shield | B136 | 33 | 0 | 0 | - | |
| Back-up power supply | B135 | 19 | 10 - 13 | 13 - 14 | Ignition switch "OFF": 10 - 13 | |
| Control unit power supply | B135 | 5 | 10 - 13 | 13 - 14 | - | |
| B135 | 6 | 10 - 13 | 13 - 14 | - | ||
| Sensor power supply | B136 | 16 | 5 | 5 | - | |
| Ignition control | #1 | B135 | 18 | 0 | 13 - 14 | Waveform |
| #2 | B135 | 17 | 0 | 13 - 14 | Waveform | |
| #3 | B135 | 16 | 0 | 13 - 14 | Waveform | |
| #4 | B135 | 15 | 0 | 13 - 14 | Waveform | |
| Fuel injector | #1 | B136 | 6 | 10 - 13 | 1 - 14 | Waveform |
| #2 | B136 | 5 | 10 - 13 | 1 - 14 | Waveform | |
| #3 | B136 | 4 | 10 - 13 | 1 - 14 | Waveform | |
| #4 | B136 | 3 | 10 - 13 | 1 - 14 | Waveform | |
| Fuel pump control unit | Signal 1 | B135 | 26 | 0 or 5 | 0 or 5 | Sensor output waveform |
| Signal 2 | B137 | 28 | 10 - 13 | 13 - 14 | - | |
| A/C relay control | B135 | 33 | ON: 0.5 or less OFF: 10 - 13 | ON: 0.5 or less OFF: 13 - 14 | - | |
| Radiator fan relay 1 control | B135 | 25 | ON: 0.5 or less OFF: 10 - 13 | ON: 0.5 or less OFF: 13 - 14 | - | |
| Radiator fan relay 2 control | B135 | 24 | ON: 0.5 or less OFF: 10 - 13 | ON: 0.5 or less OFF: 13 - 14 | Model with A/C only | |
| Malfunction indicator light | B134 | 17 | - | - | Light "ON": 1 or less Light "OFF": 10 - 14 | |
| Engine speed output | B134 | 23 | - | 0 - 13, or more | Waveform | |
| Purge control solenoid valve | B134 | 14 | ON: 1 or less OFF: 10 - 13 | ON: 1 or less OFF: 13 - 14 | Sensor output waveform | |
| Manifold absolute pressure sensor | Signal | B136 | 22 | 1.7 - 2.4 | 1.1 - 1.6 | - |
| Power supply | B136 | 16 | 5 | 5 | ||
| GND (sensor) | B136 | 35 | 0 | 0 | ||
| Fuel tank pressure sensor | Signal | B136 | 21 | 2.3 - 2.7 | 2.3 - 2.7 | The valve operates when fuel filler cap is removed and reinstalled. |
| GND (sensor) | B136 | 35 | 0 | 0 | - | |
| Fuel tank pressure control solenoid valve | B134 | 12 | ON: 1 or less OFF: 10 - 13 | ON: 1 or less OFF: 13 - 14 | - | |
| Drain valve | B134 | 13 | ON: 1 or less OFF: 10 - 13 | ON: 1 or less OFF: 13 - 14 | - | |
| Fuel tank sensor control valve | B134 | 24 | ON: 1 or less OFF: 10 - 13 | ON: 1 or less OFF: 13 - 14 | - | |
| Fuel level sensor | B136 | 20 | 0.12 - 4.75 | 0.12 - 4.75 | - | |
| Fuel temperature sensor signal | B136 | 12 | 2.5 - 3.8 | 2.5 - 3.8 | Ambient temperature: 25°C (75°F) | |
| Blow-by leak diagnosis signal | B137 | 24 | 0 | 0 | When disconnection (malfunction): 5 | |
| Small light switch | B137 | 12 | ON: 0 OFF: 10 - 13 | ON: 0 OFF: 13 - 14 | - | |
| Blower fan switch | B137 | 13 | ON: 0 OFF: 10 - 13 | ON: 0 OFF: 13 - 14 | - | |
| Rear defogger switch | B137 | 11 | ON: 0 OFF: 10 - 13 | ON: 0 OFF: 13 - 14 | - | |
| Power steering oil pressure switch | B137 | 10 | 10 - 13 | ON: 0 OFF: 13 - 14 | - | |
| Front oxygen (A/F) sensor signal (+) | B134 | 33 | 2.8 - 3.2 | 2.8 - 3.2 | - | |
| Front oxygen (A/F) sensor signal (-) | B134 | 26 | 2.4 - 2.7 | 2.4 - 2.7 | - | |
| Front oxygen (A/F) sensor shield | B134 | 25 | 0 | 0 | - | |
| SSM/GST communication line | B137 | 20 | 1 < --> 4 | 1 < --> 4 | - | |
| GND (injectors) | B137 | 7 | 0 | 0 | - | |
| GND (ignition system) | B135 | 12 | 0 | 0 | - | |
| GND (power supply) | B135 | 4 | 0 | 0 | - | |
| B135 | 1 | 0 | 0 | - | ||
| GND (control systems) | B137 | 1 | 0 | 0 | - | |
| B137 | 2 | 0 | 0 | - | ||
| GND (front oxygen (A/F) sensor heater 1) | B134 | 7 | 0 | 0 | - | |
| GND (front oxygen (A/F) sensor heater 2) | B134 | 6 | 0 | 0 | - | |
| Camshaft position sensor (LH) | B135 | 8 | 0 - 0.9 | ON: 0 OFF: 4.7 - 5.3 | Sensor output waveform | |
| Camshaft position sensor (RH) | B135 | 9 | 0 - 0.9 | ON: 0 OFF: 4.7 - 5.3 | Sensor output waveform | |
| Electronic throttle control | Main | B136 | 18 | 0.64 - 0.72 Fully opened: 3.96 | 0.64 - 0.72 (After engine warm-up) | Fully closed: 0.6 Fully opened: 3.96 |
| Sub | B136 | 29 | 1.51 - 1.58 Fully opened: 4.17 | 1.51 - 1.58 (After engine warm-up) | Fully closed: 1.48 Fully opened: 4.17 | |
| Power supply | B136 | 16 | 5 | 5 | - | |
| GND (sensor) | B137 | 3 | 0 | 0 | - | |
| Electronic throttle control motor (+) | B137 | 5 | Duty waveform | Duty waveform | Driving frequency: 500 Hz | |
| Electronic throttle control motor (-) | B137 | 4 | Duty waveform | Duty waveform | Driving frequency: 500 Hz | |
| Electronic throttle control motor power supply | B137 | 6 | 10 - 13 | 13 - 14 | - | |
| Electronic throttle control motor relay | B135 | 35 | ON: 0 OFF: 10 - 13 | ON: 0 OFF: 13 - 14 | When ignition switch is ON: ON | |
| Oil flow control solenoid valve (LH) | Signal (+) | B134 | 19 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - |
| Signal (-) | B134 | 29 | 0 | 0 | - | |
| Oil flow control solenoid valve (RH) | Signal (+) | B134 | 18 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - |
| Signal (-) | B134 | 28 | 0 | 0 | - | |
| Accelerator pedal position sensor | Main | B136 | 17 | Fully closed: 1 Fully opened: 3.5 | Fully closed: 1 Fully opened: 3.5 | - |
| Power supply | B136 | 15 | 5 | 5 | - | |
| GND (sensor) | B136 | 34 | 0 | 0 | - | |
| Sub | B136 | 28 | Fully closed: 1 Fully opened: 3.5 | Fully closed: 1 Fully opened: 3.5 | - | |
| Main light | B134 | 15 | ON: 0 OFF: 10 - 13 | ON: 0 OFF: 13 - 14 | - | |
| Cruise control set light | B134 | 16 | ON: 0 OFF: 10 - 13 | ON: 0 OFF: 13 - 14 | - | |
| Clutch switch | B134 | 1 | When clutch pedal is depressed: 0 When clutch pedal is released: 10 - 13 | When clutch pedal is depressed: 0 When clutch pedal is released: 13 - 14 | - | |
| SET/COAST switch | B136 | 11 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - | |
| Brake switch 1 | B136 | 9 | When brake pedal is depressed: 0 When brake pedal is released: 10 - 13 | When brake pedal is depressed: 0 When brake pedal is released: 13 - 14 | - | |
| Brake switch 2 | B136 | 8 | When brake pedal is depressed: 10 - 13 When brake pedal is released: 0 | When brake pedal is depressed: 13 - 14 When brake pedal is released: 0 | - | |
| RESUME/ACCEL switch | B136 | 10 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - | |
| Main switch | B136 | 7 | ON: 10 - 13 OFF: 0 | ON: 13 - 14 OFF: 0 | - | |
| CAN communication | Signal (+) | B137 | 18 | Pulse signal | - | |
| Signal (-) | B137 | 26 | Pulse signal | - | ||
