Transmission
>>
Automatic Trans
>>
Automatic Transmission - Mechanism & Function (4AT)
>>
Transmission Control Module (TCM)
>>
Schematic Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Schematic Diagram

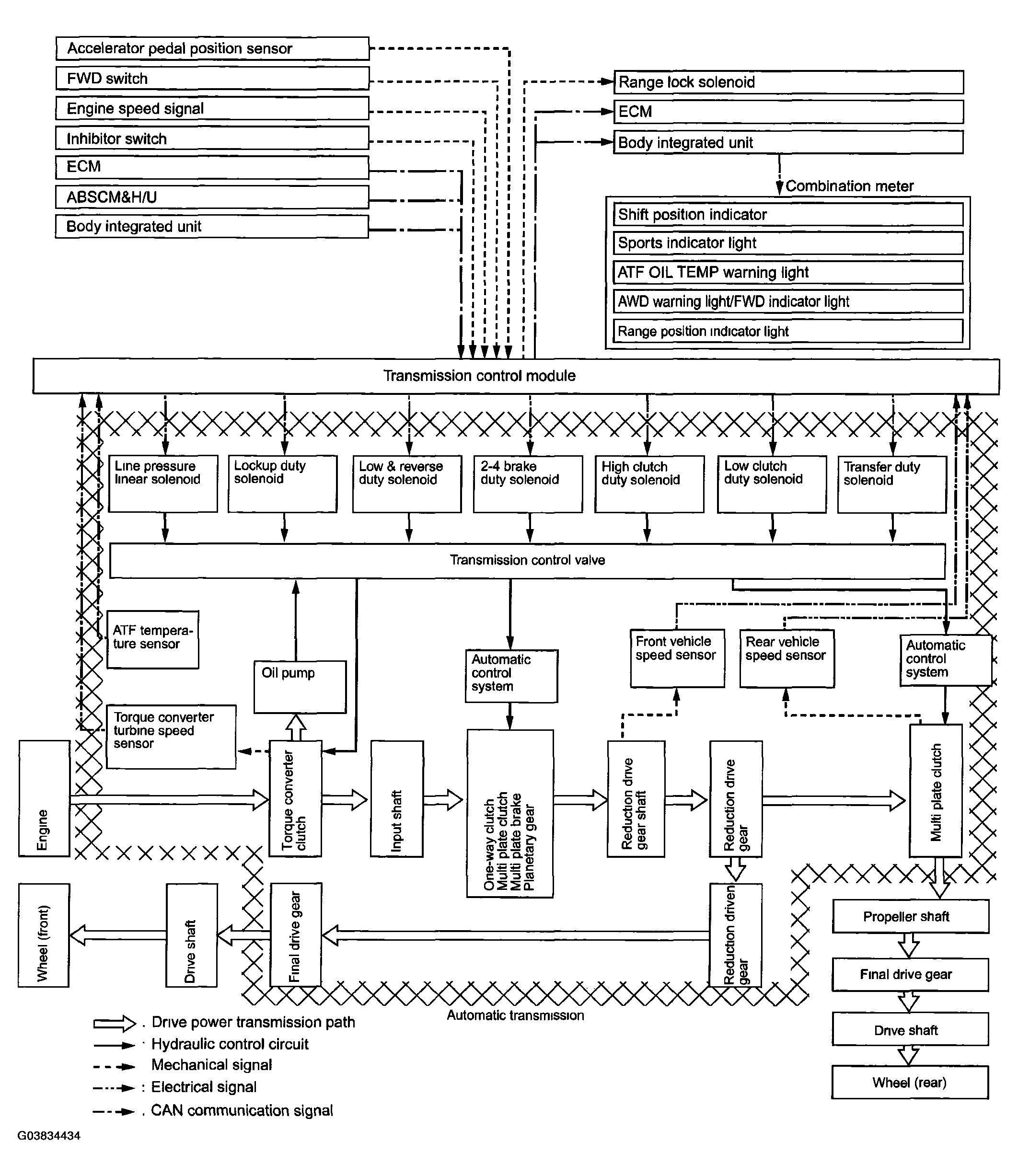

Fig 1: Schematic Diagram Of Transmission Control Module (TCM)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
