Yaw Rate & Lateral G Sensor

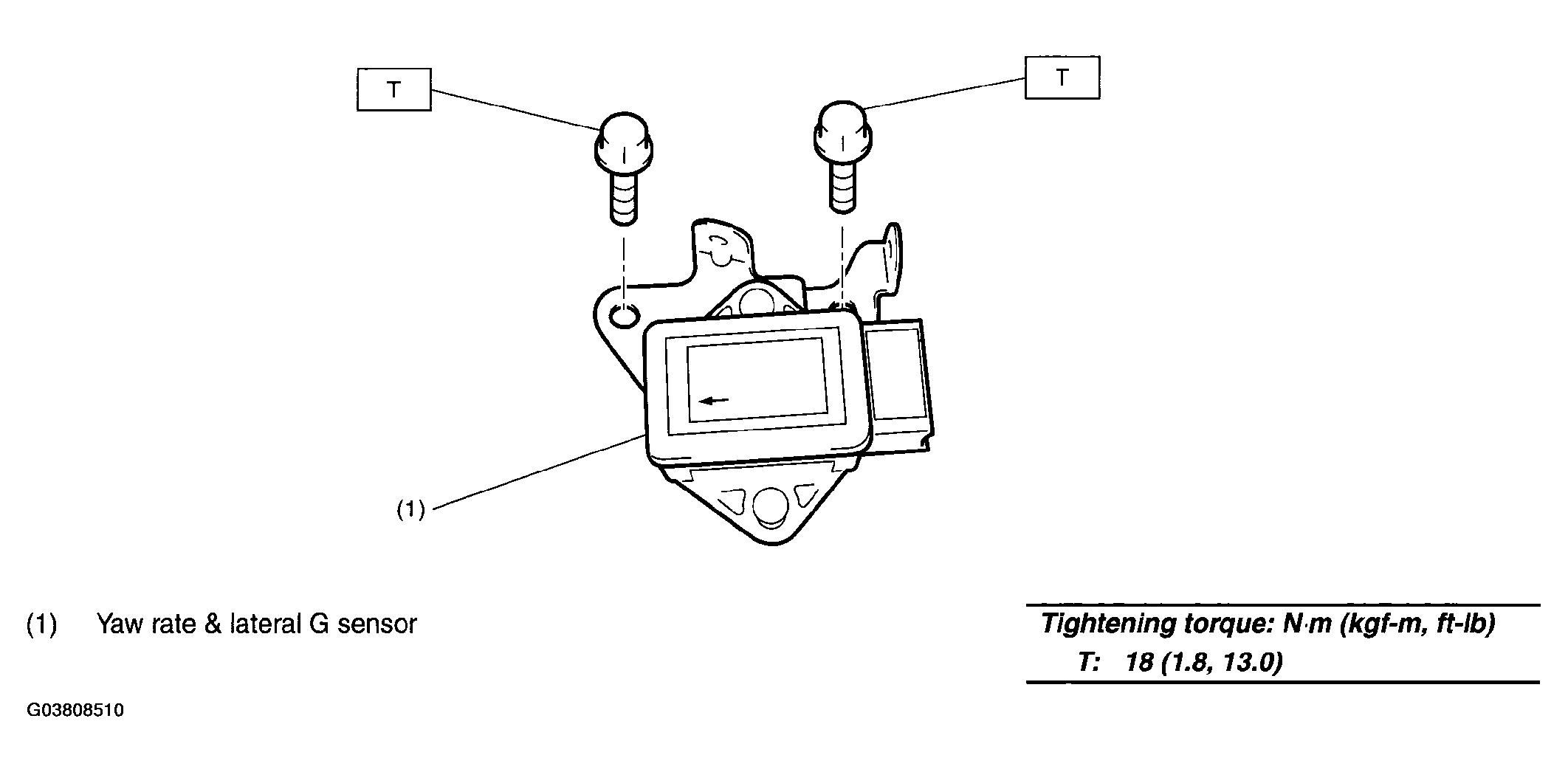

Fig 1: Identifying Components Of Yaw Rate & Lateral G Sensor
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
