Fuel Sub Level Sensor: Removal

WARNING:

Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.

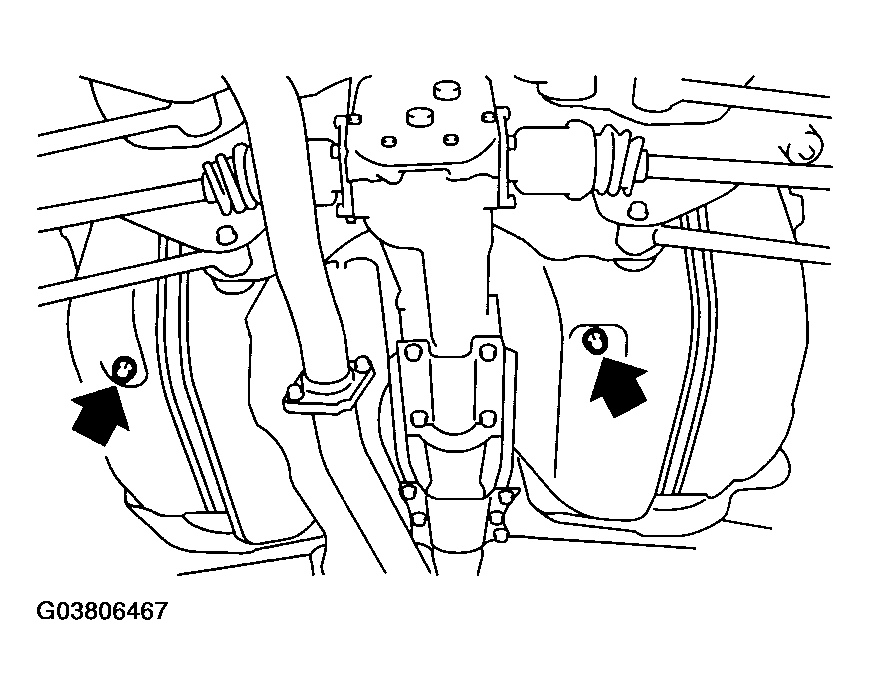

Fig 2: Draining Fuel From Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
Tightening torque:

26 N.m (2.65 kgf-m, 19.2 ft-lb)

Fig 3: Tightening Fuel Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat.
Remove the service hole cover.

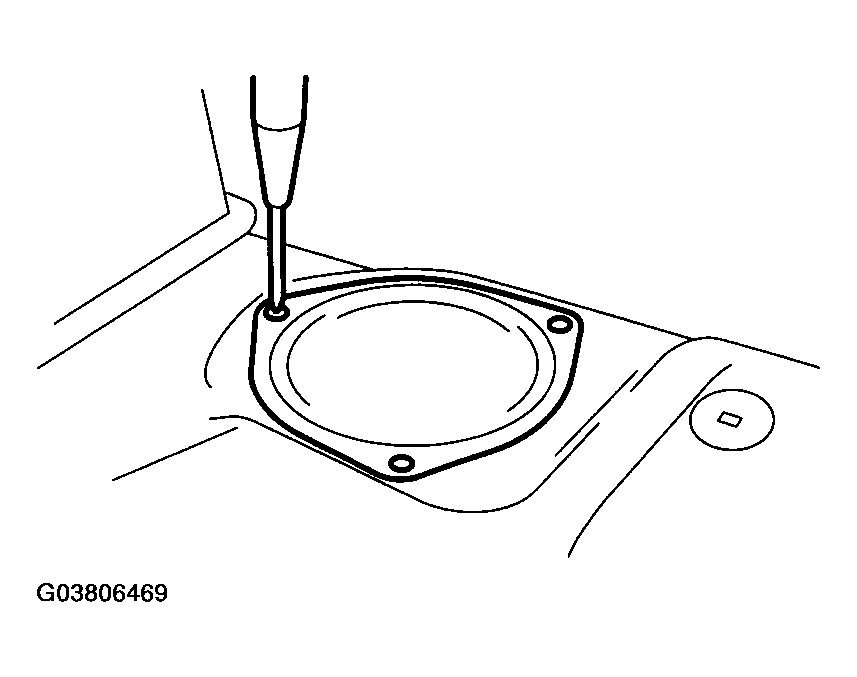

Fig 4: Removing Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub meter.
Disconnect the fuel jet pump hose.

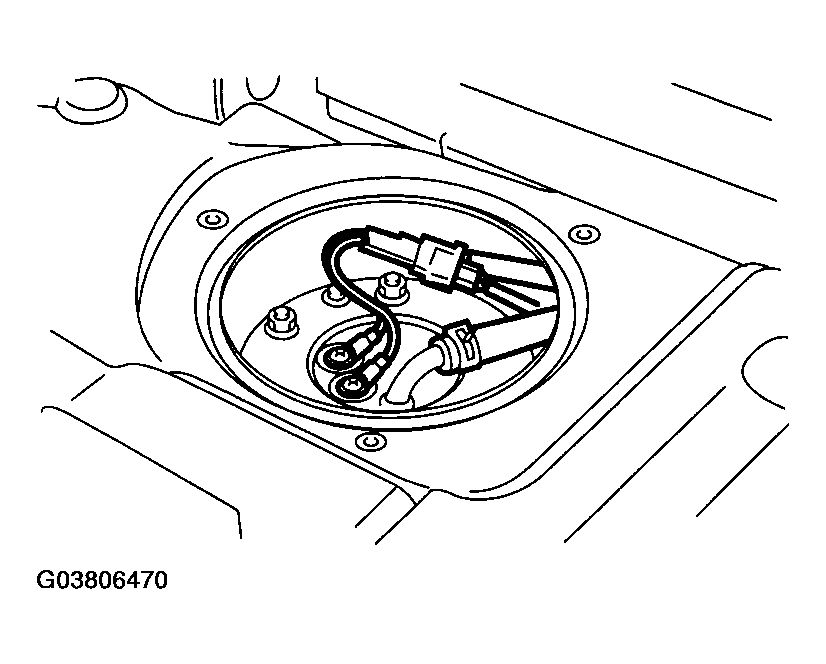

Fig 5: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install the fuel sub meter unit on the fuel tank.

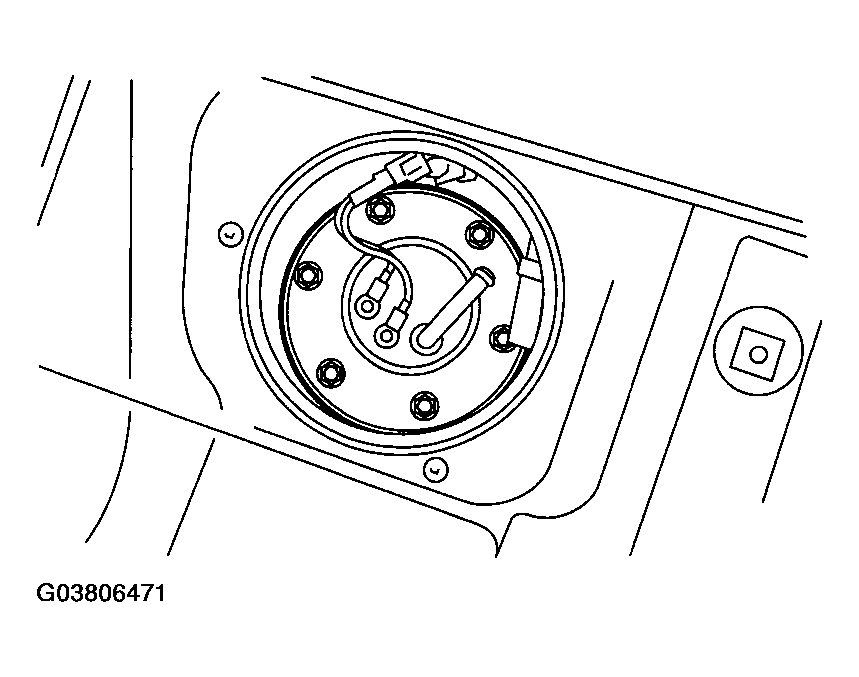

Fig 6: Removing Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub meter unit.

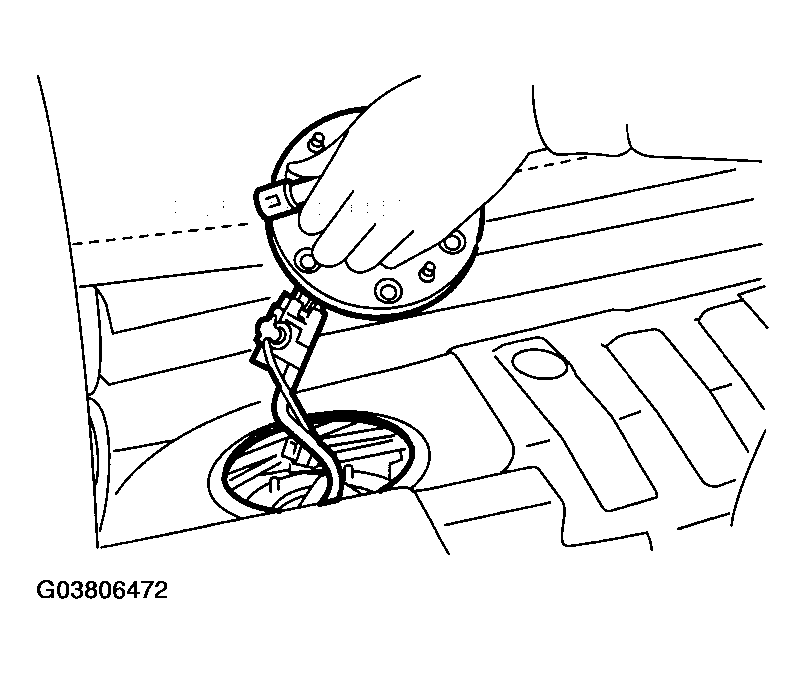

Fig 7: Removing Fuel Sub Meter Unit
Courtesy of SUBARU OF AMERICA, INC.
