Draining Fuel

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill the fuel.
  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.

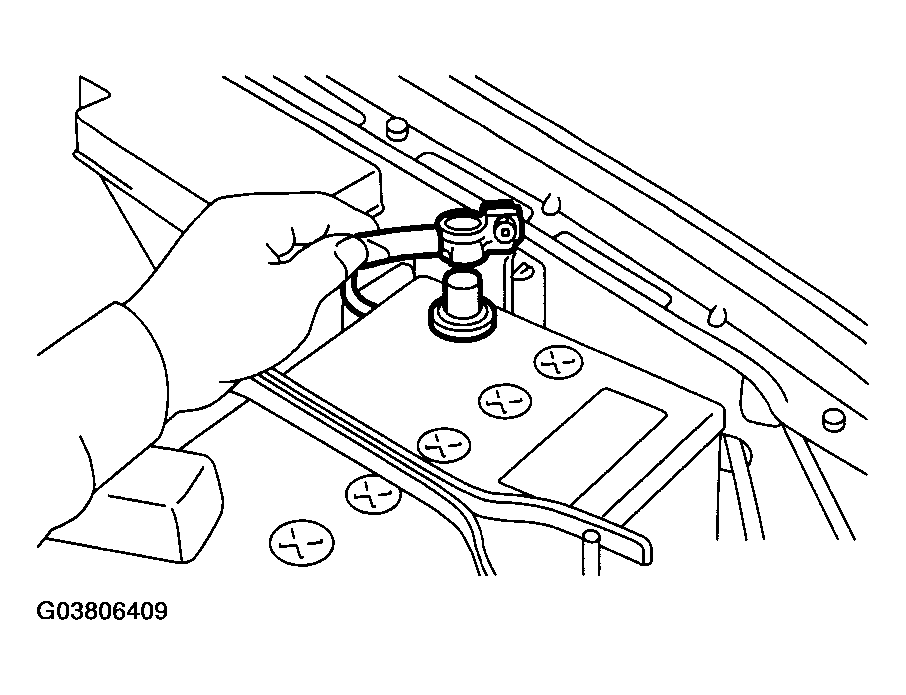

    Fig 1: Disconnecting Ground Cable From Battery
    G03806409Courtesy of SUBARU OF AMERICA, INC.
  3. Open the fuel filler flap lid, and remove the fuel filler cap.
  4. Lift-up the vehicle.
  5. Drain the fuel from the fuel tank. Set a container under the vehicle, and remove drain plug from the fuel tank.

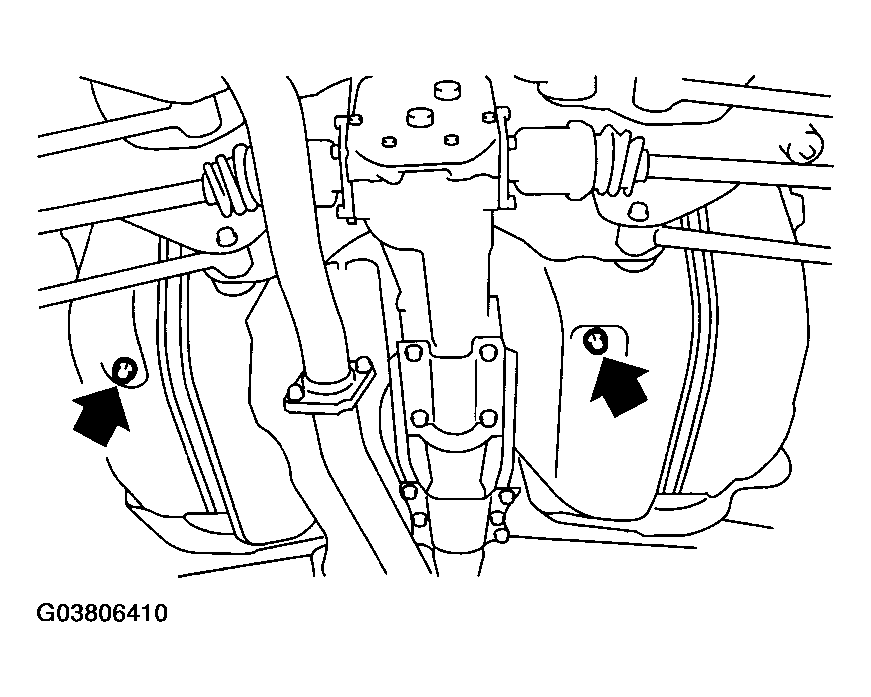

    Fig 2: Draining Fuel From Fuel Tank
    G03806410Courtesy of SUBARU OF AMERICA, INC.
  6. Tighten the fuel drain plug.

    Tightening torque:

    26 N.m (2.65 kgf-m, 19.2 ft-lb)

    Fig 3: Tightening Fuel Drain Plug
    G03806411Courtesy of SUBARU OF AMERICA, INC.
