Main Relay: Removal

Disconnect the ground cable from battery.

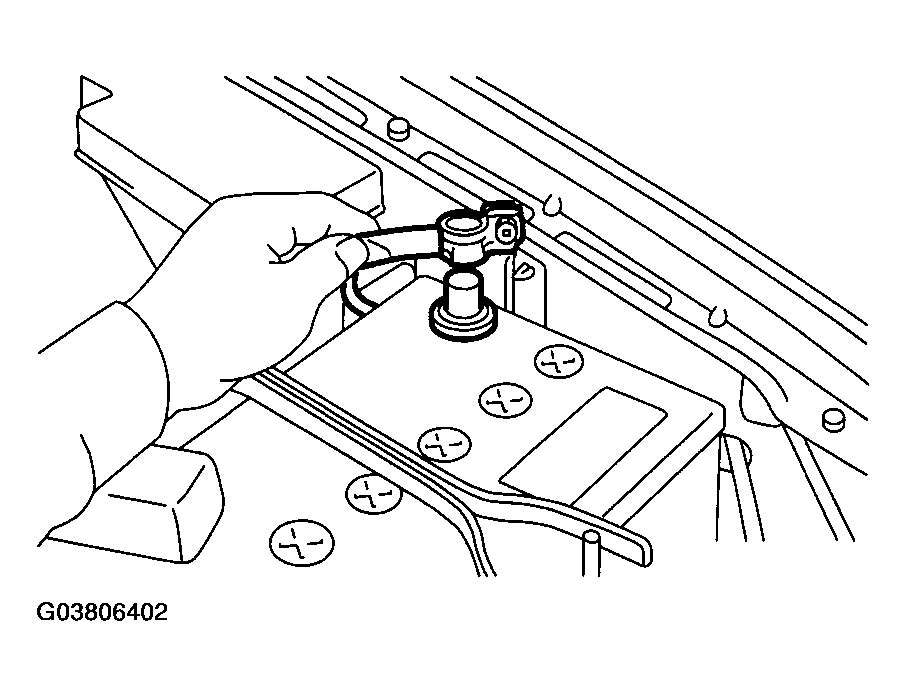

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box. < Ref. to REMOVAL , Glove Box. >
Remove the bolt which holds the main relay bracket on the body.
Disconnect the connectors from the main relay.

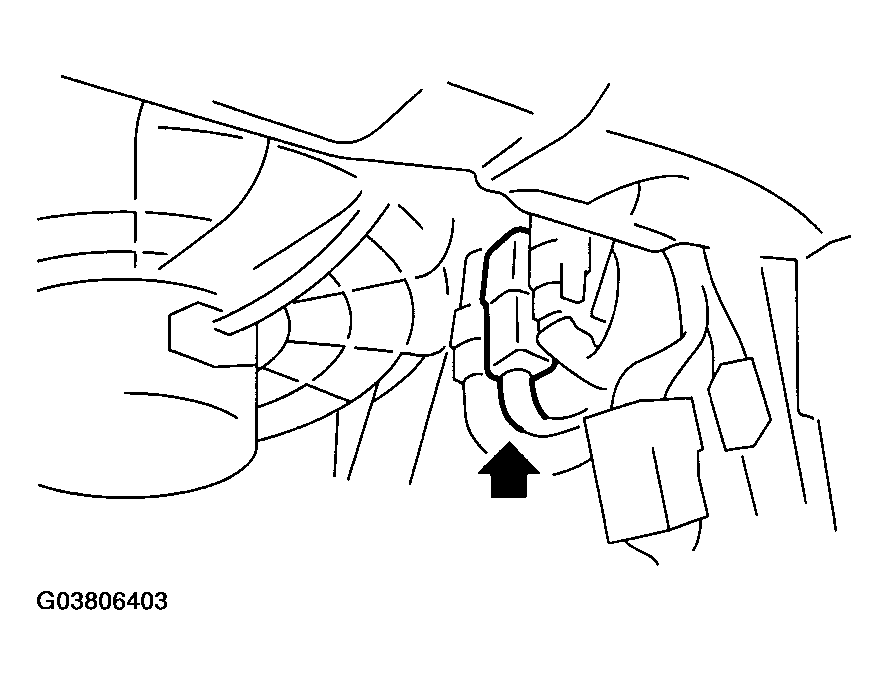

Fig 2: Disconnecting Connectors From Main Relay
Courtesy of SUBARU OF AMERICA, INC.
