Manifold Absolute Pressure Sensor: Removal

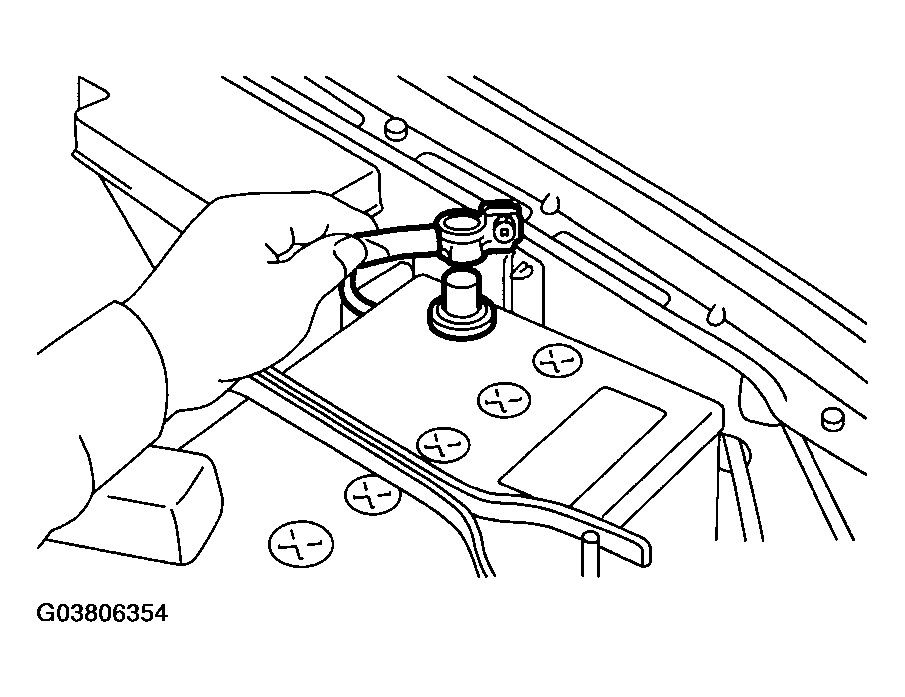

- Disconnect the ground cable from battery.
Courtesy of SUBARU OF AMERICA, INC.

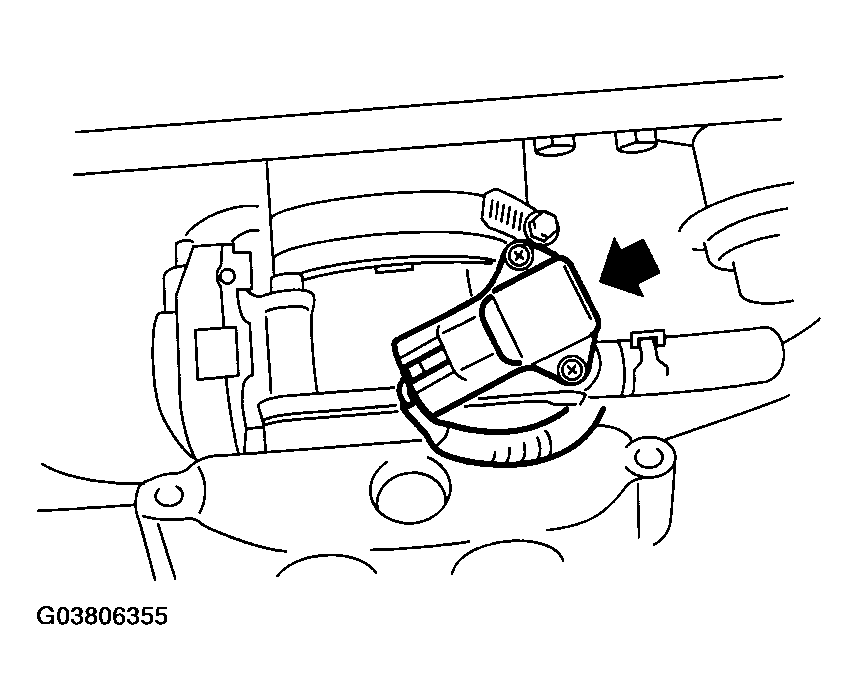

- Disconnect the connectors from manifold absolute pressure sensor.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the manifold absolute pressure sensor from the throttle body.
