Tumble Generator Valve Assembly: Installation

Install in the reverse order of removal.

NOTE: Always use new gaskets.

Tightening torque:

8.25 N.m (0.84 kgf-m, 6.1 ft-lb)

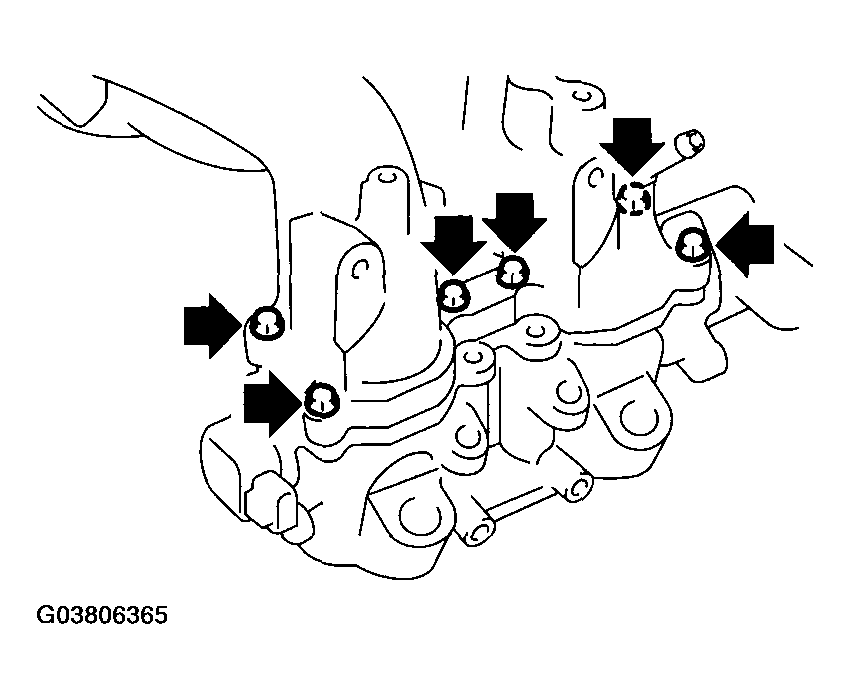

Fig 1: Installing Tumble Generator Valve Body
G03806365Courtesy of SUBARU OF AMERICA, INC.
