DTC P0461: Fuel Level Sensor Circuit Range/Performance
WARNING: This page is about a different variant/trim than selected.
DTC DETECTING CONDITION:
- Two consecutive driving cycles with fault
- GENERAL DESCRIPTION < Ref. to DTC P0461 FUEL LEVEL SENSOR CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >
CAUTION:
After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to
, OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to
, PROCEDURE , Inspection Mode. >.

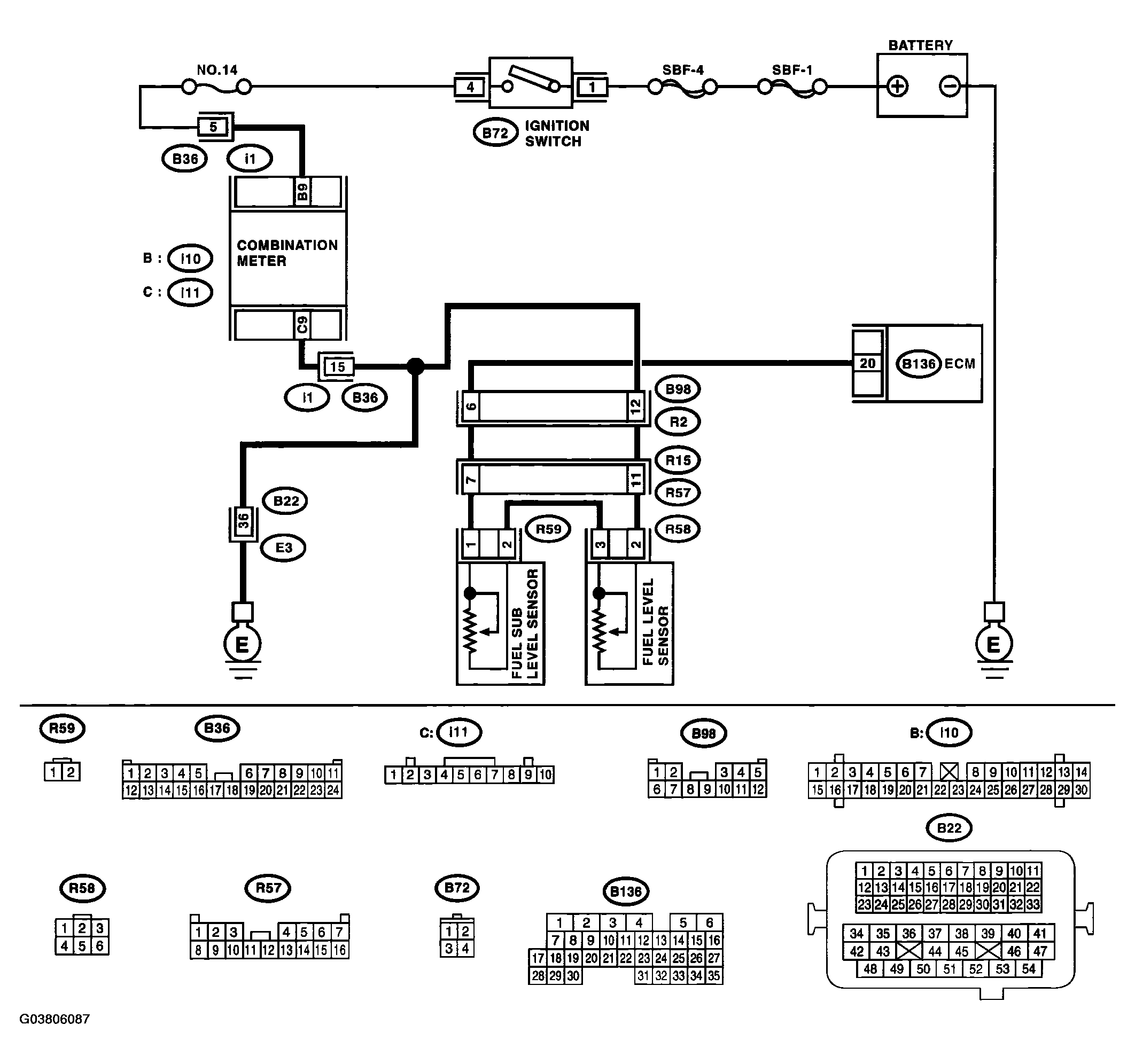

WIRING DIAGRAM:
DIAGNOSTIC PROCEDURE DTC P0461
| Step | Check | Yes | No |
|---|---|---|---|
| 1 CHECK ANY OTHER DTC ON DISPLAY. | Is any other DTC displayed? | Inspect DTC using "List of Diagnostic Trouble Code (DTC)". < Ref. to
, LIST OF DIAGNOSTIC TROUBLE CODE (DTC) . >
NOTE:
In this case, it is not necessary to inspect this trouble.
|
Replace the fuel level sensor < Ref. to FUEL LEVEL SENSOR . < Ref. to FUEL SUB LEVEL SENSOR . > |
