DTC P2122: Throttle/Pedal Position Sensor/Switch "D" Circuit Low Input

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Immediately at fault recognition
GENERAL DESCRIPTION < Ref. to DTC P2122 THROTTLE/PEDAL POSITION SENSOR/SWITCH "D" CIRCUIT LOW INPUT , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Erroneous idling
Poor driving performance

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to , PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

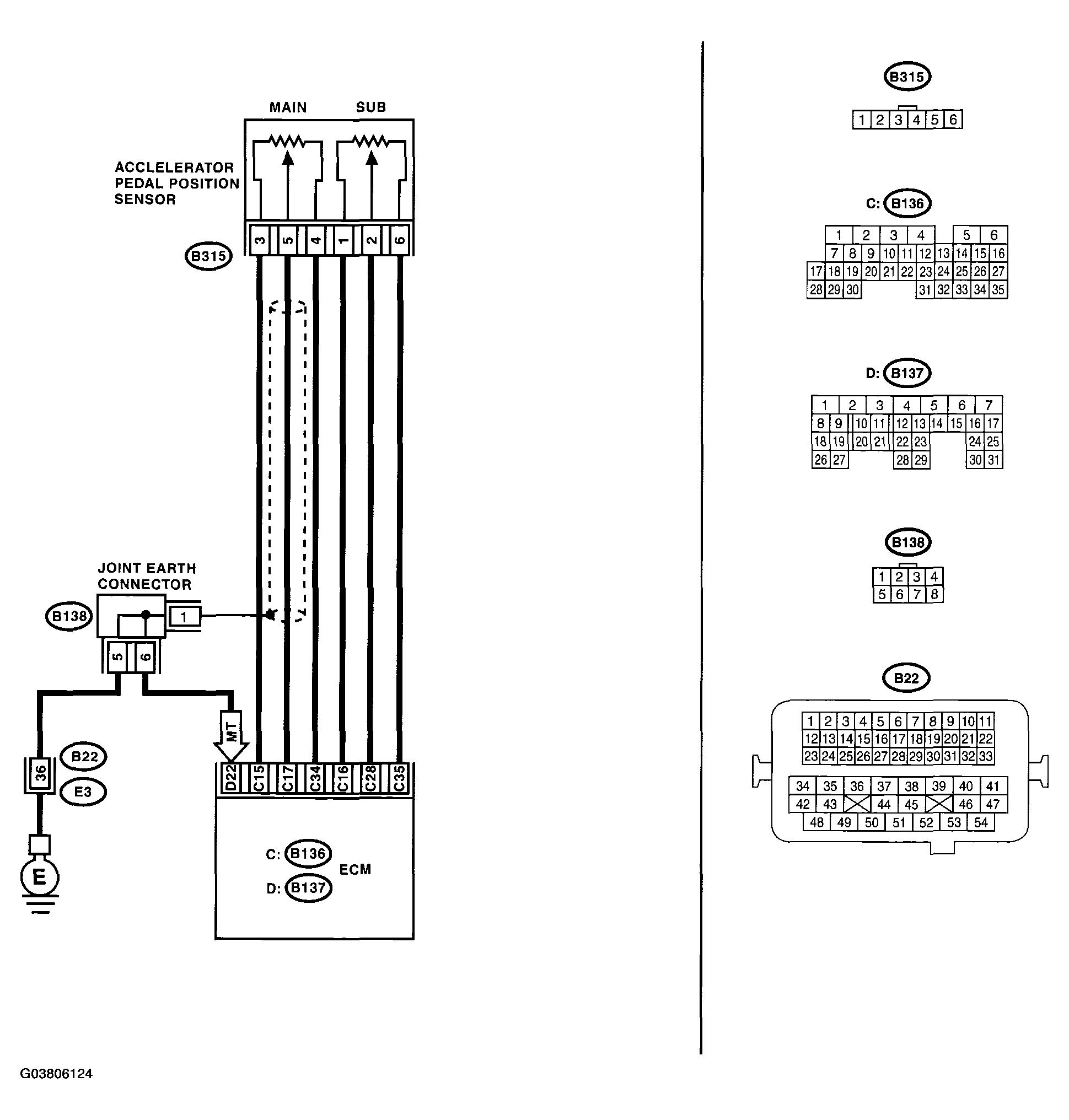

Fig 1: DTC P2122 Throttle/Pedal Position - Wiring Diagram And Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE DTC P2122

Step	Check	Yes	No
1 CHECK OUTPUT VOLTAGE OF ACCELERATOR PEDAL POSITION SENSOR. Turn the ignition switch to ON. Read the data of main accelerator pedal position sensor signal using Subaru Select Monitor.	Is the voltage more than 0.4 V? Go to step 2 .	Go to step	3 .
2 CHECK POOR CONTACT IN CONNECTORS. Check poor contact in connectors between ECM and accelerator pedal position sensor.	Is there poor contact in connectors between ECM and accelerator pedal position sensor?	Repair the poor contact in connectors.	Connector has returned to its normal condition at this time. A temporary poor contact of the connector may be the cause.
3 CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Disconnect the connector from accelerator pedal position sensor. Measure the resistance between ECM connector and accelerator pedal position sensor. Connector & terminal (B136) No. 17- (B315) No. 5: (B136) No. 15 - (B315) No. 3:	Is the resistance less than 1 Ω?	Go to step 4 .	Repair the open harness connector.
4 CHECK HARNESS BETWEEN ECM AND ACCELERATOR PEDAL POSITION SENSOR. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B136) No. 17 - Chassis ground: (B136) No. 15 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 5 .	Repair the open harness connector.
5 CHECK ACCELERATOR PEDAL POSITION SENSOR POWER SUPPLY Connect the ECM connector. Turn the ignition switch to ON. Measure the voltage between accelerator pedal position sensor connector and chassis ground. Connector & terminal (B315) No. 3 (+) - Chassis ground (-):	Is the voltage 4.5 - 5.5 V?	Go to step 6 .	Repair the poor contact in ECM connector. If problem persists, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
6 CHECK ACCELERATOR PEDAL POSITION SENSOR. Measure the resistance of accelerator pedal position sensor. Terminals No. 3 - No. 4:	Is the resistance 1.2 - 4.8 kΩ?	Go to step 7 .	Replace the accelerator pedal position sensor.
7 CHECK ACCELERATOR PEDAL POSITION SENSOR. Measure the resistance of accelerator pedal position sensor when accelerator pedal is released. Terminals No. 5 - No. 4:	Is the resistance 0.2 - 1.0 kΩ?	Go to step 8 .	Replace the accelerator pedal position sensor.
8 CHECK ACCELERATOR PEDAL POSITION SENSOR. Measure the resistance of accelerator pedal position sensor when acceleration pedal is being depressed. Terminals No. 5 - No. 4:	Is the resistance 0.5 - 2.5 kΩ?	Repair the poor contact in ECM connector. If problem persists, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >	Replace the accelerator pedal position sensor.
