Front Seat Belt

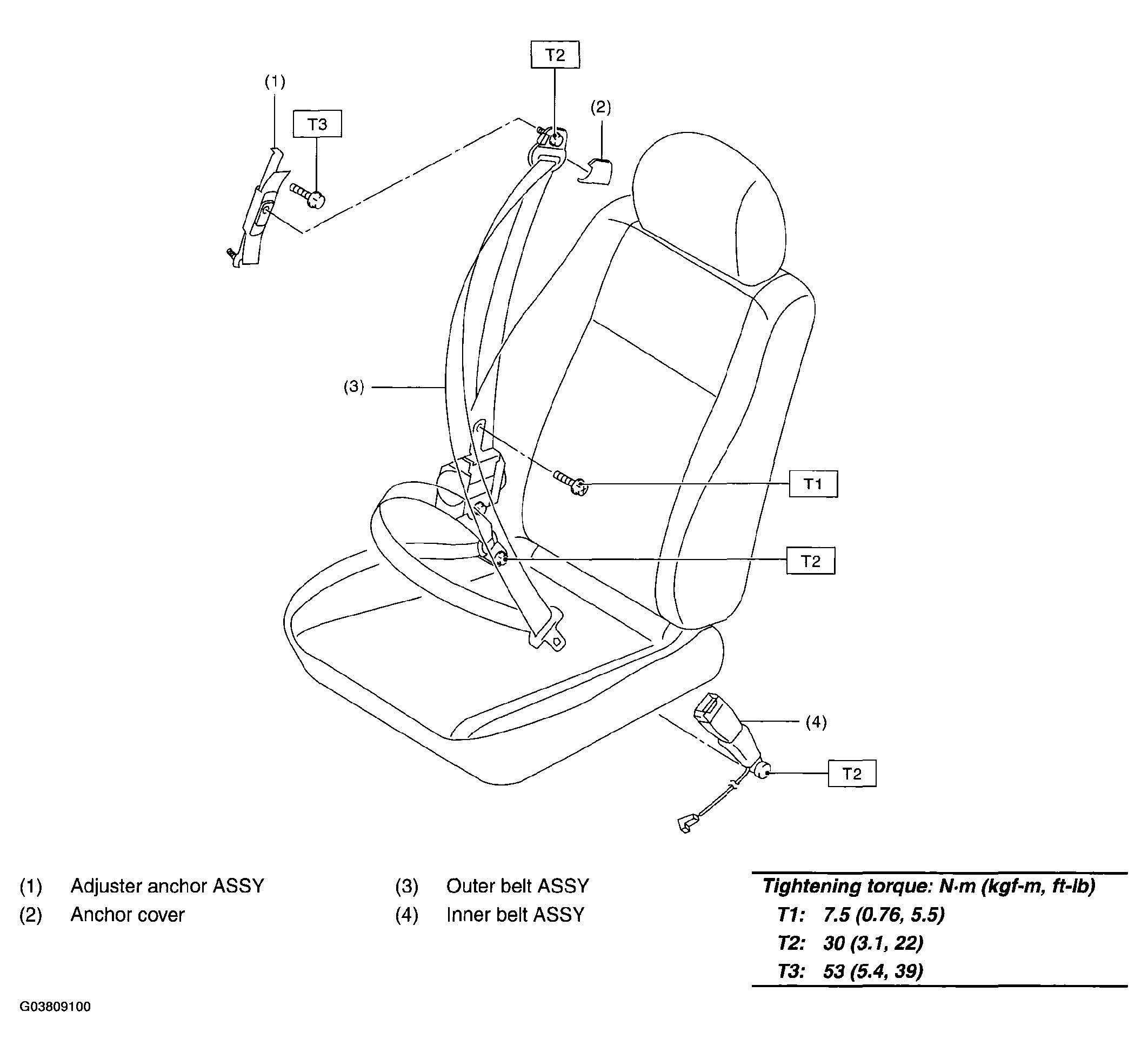

Fig 1: Front Seat Belt Replacement Components With Torque Specifications
G03809100Courtesy of SUBARU OF AMERICA, INC.
