At Select Lever

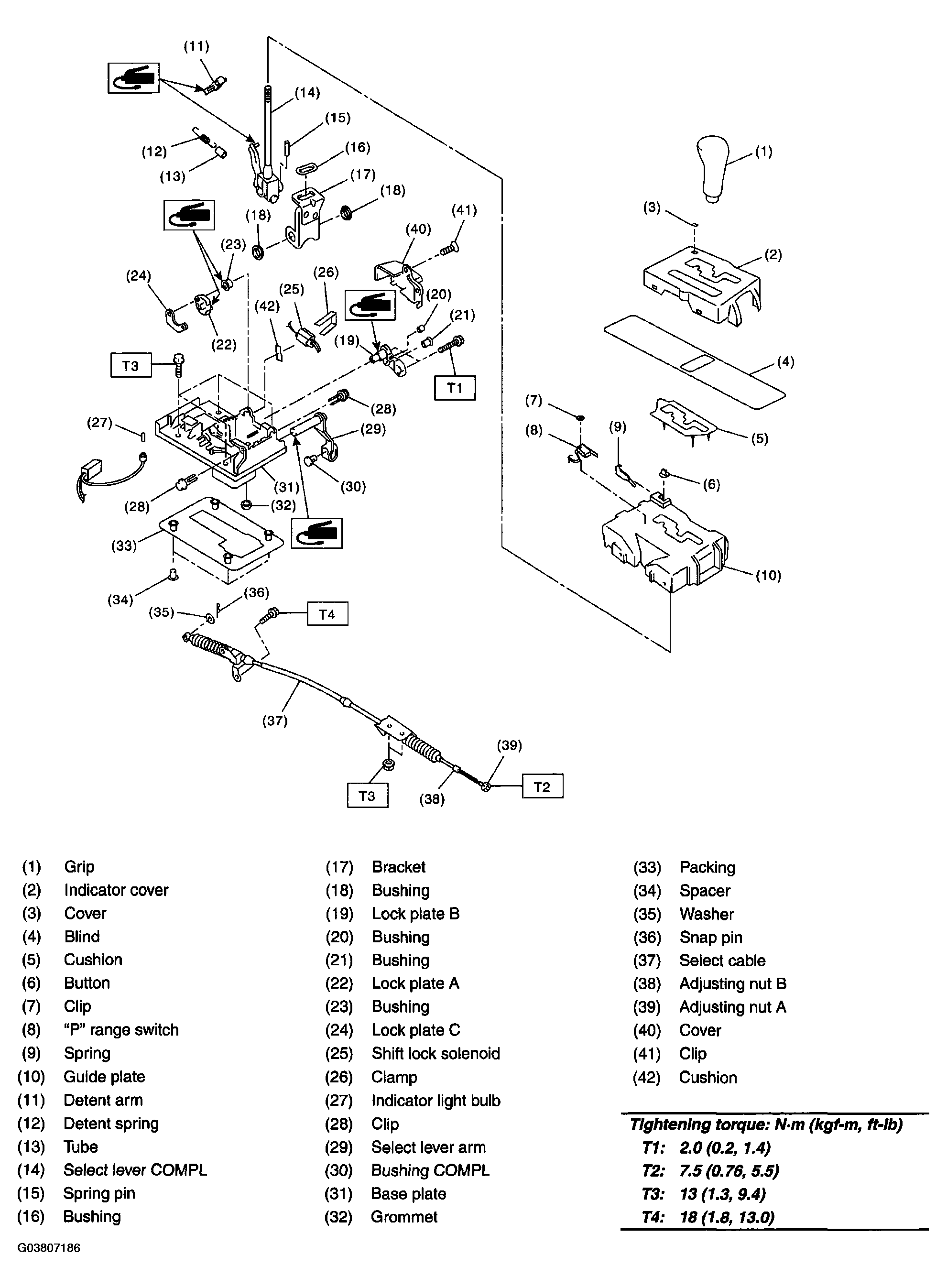

Fig 1: Exploded View Of Select Lever Components With Torque Specifications (AT)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
