Select Lever: Disassembly

Remove the packing.
Remove the grip.

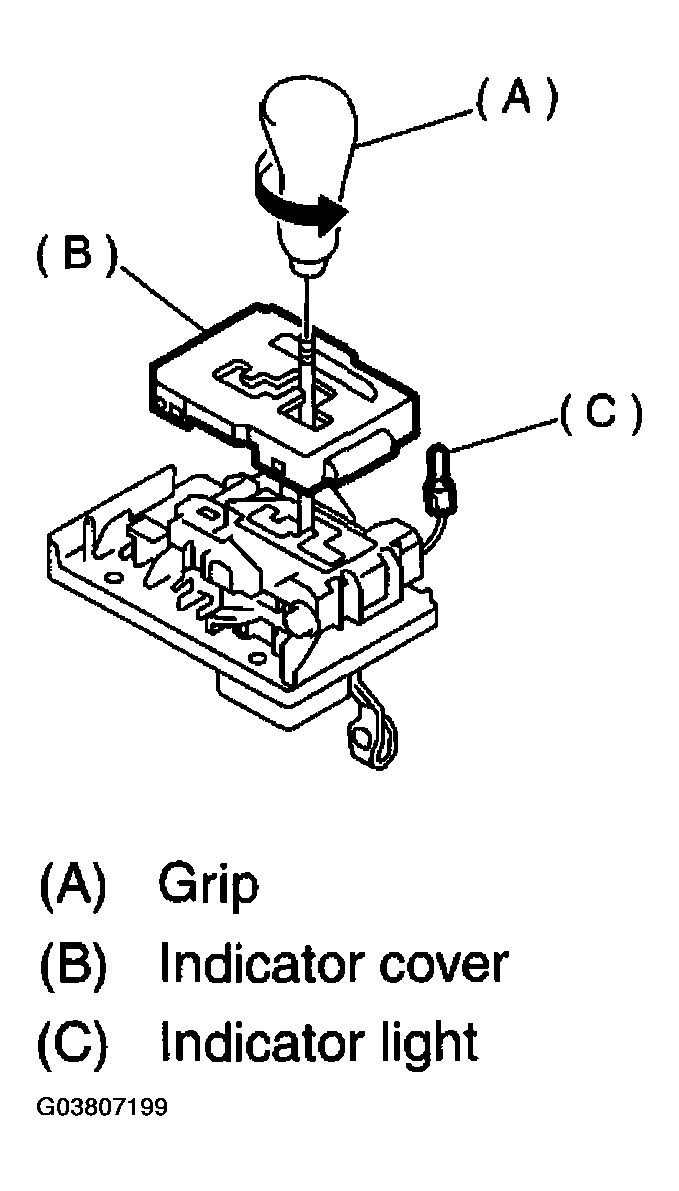

Remove the indicator light, and then remove the indicator cover.
NOTE: Be careful not to break the indicator light during removal.

Fig 1: Removing Indicator Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the blind.

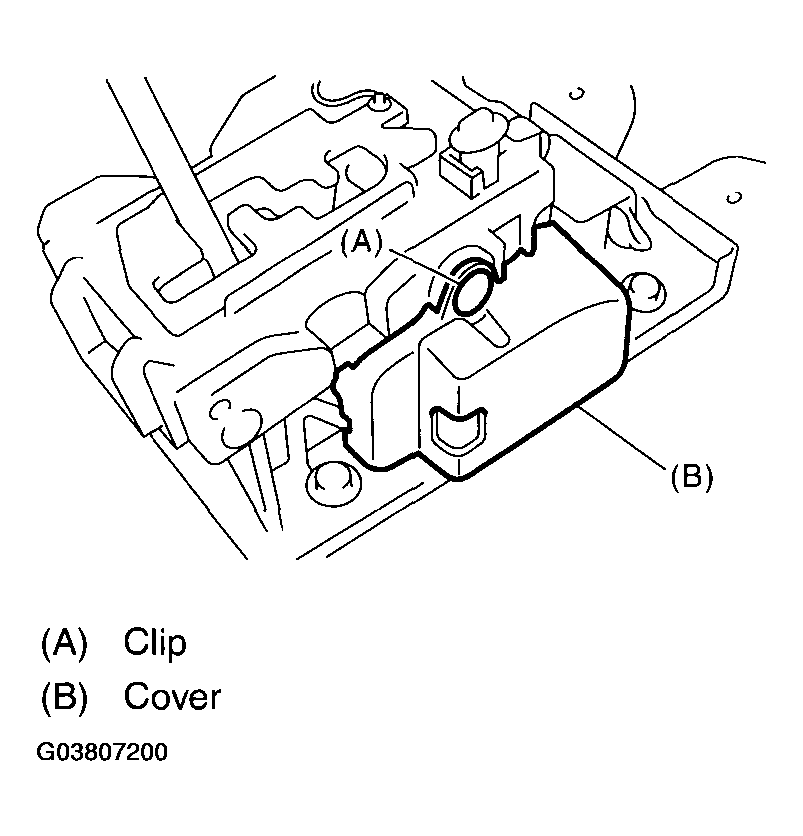

Remove the cover.

Fig 2: Removing Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips, and then remove the guide plate.

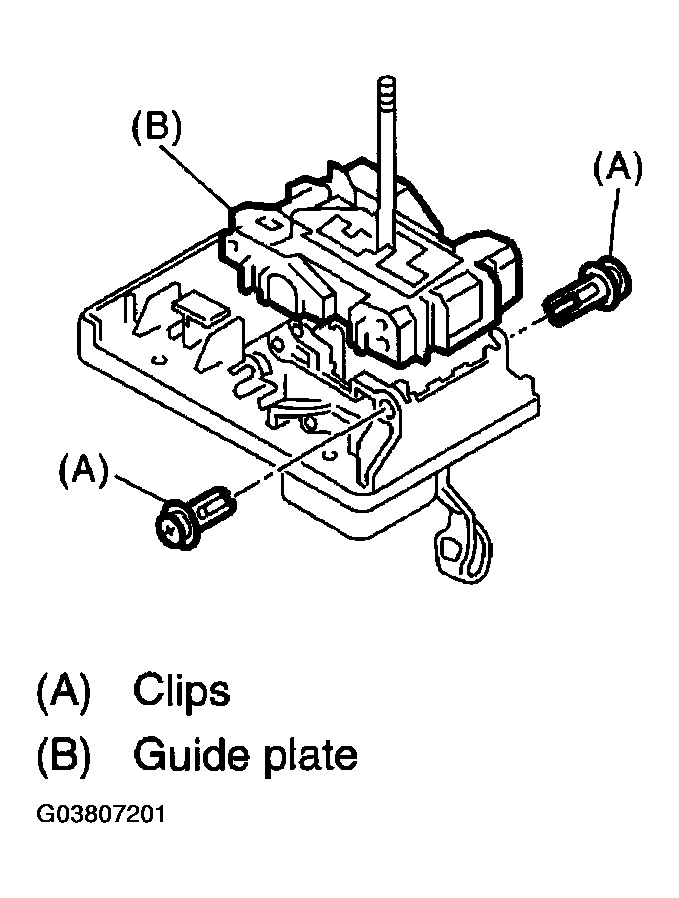

Fig 3: Removing Guide Plate
Courtesy of SUBARU OF AMERICA, INC.

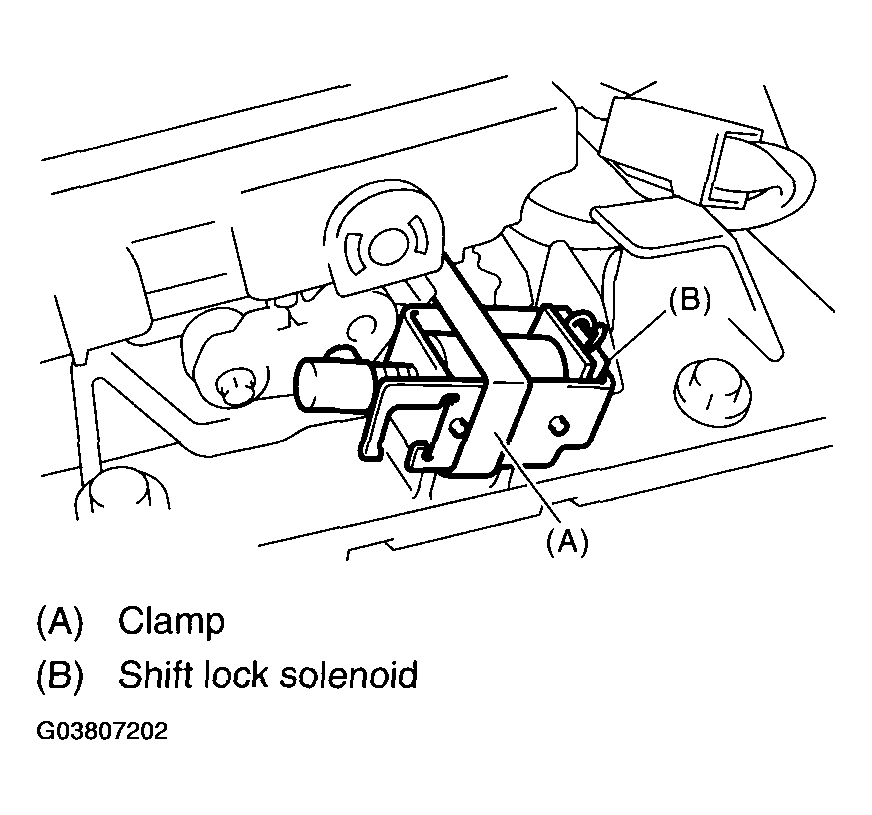

Remove the clamp, and the remove the shift lock solenoid.

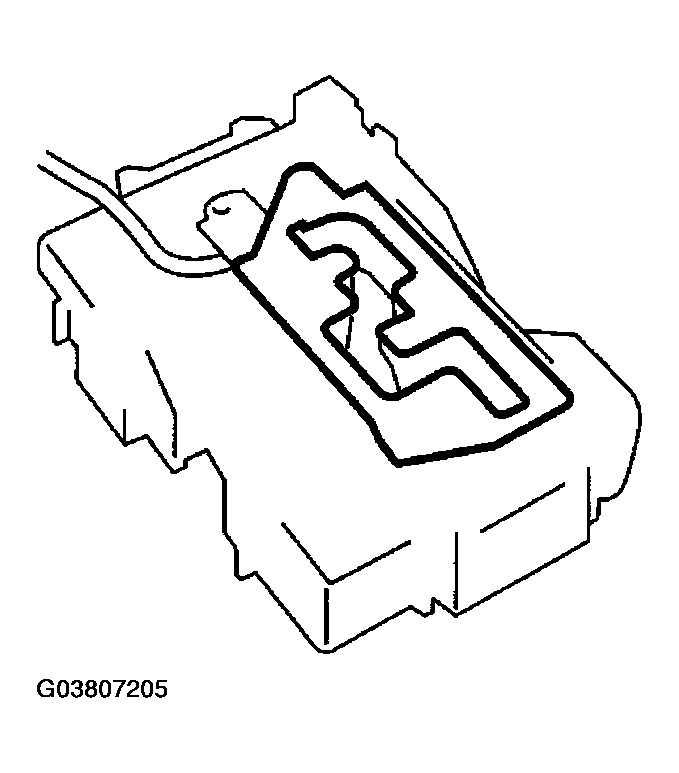

Fig 4: Removing Shift Lock Solenoid
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt.

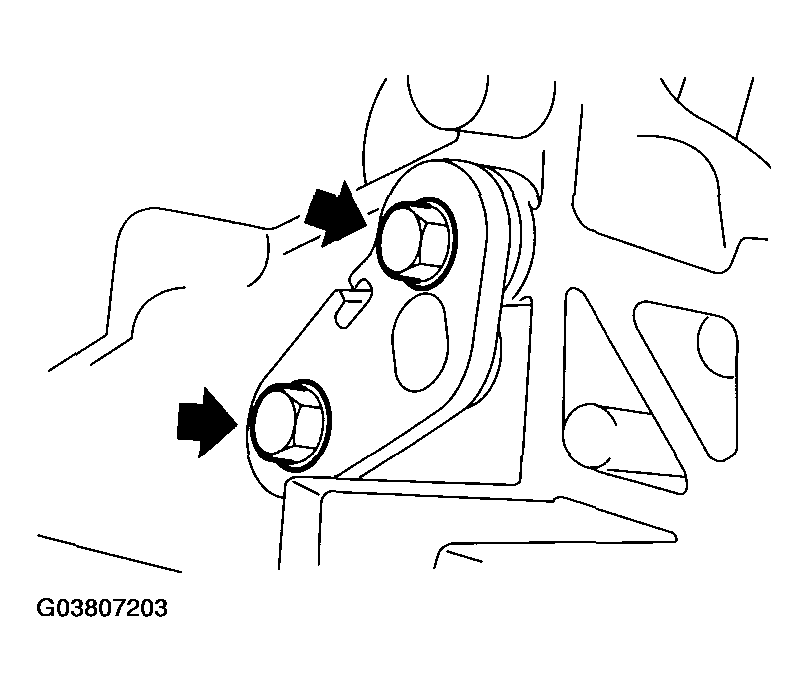

Fig 5: Removing Bolt
Courtesy of SUBARU OF AMERICA, INC.

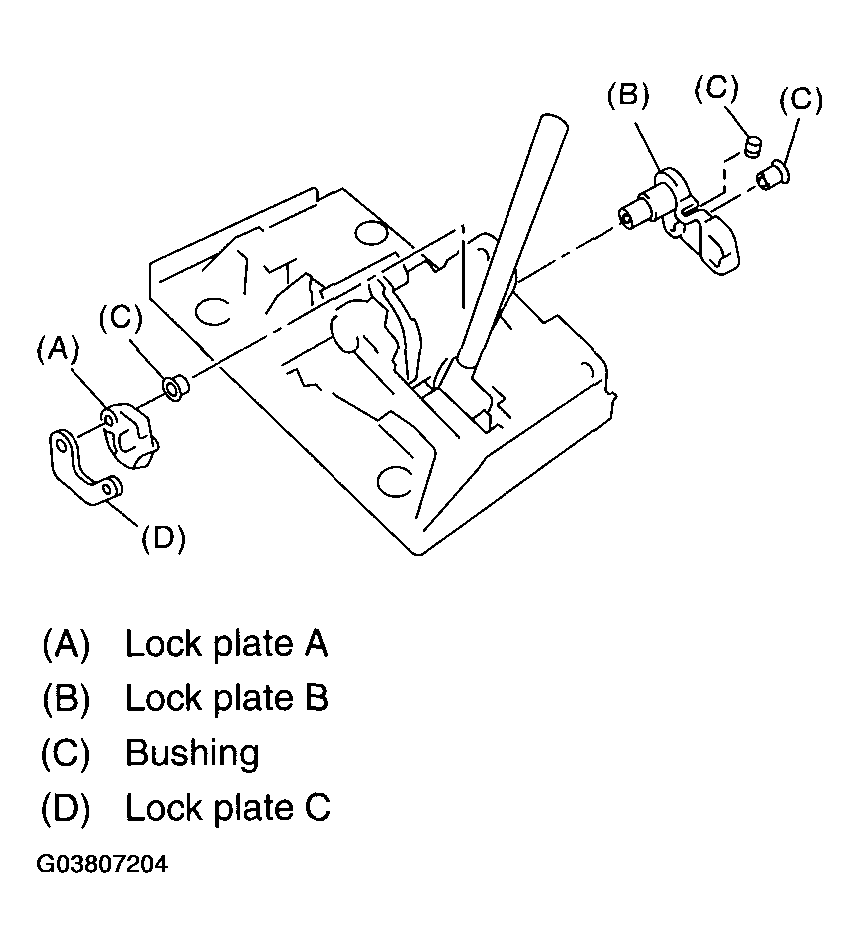

Remove the lock plate A, B, C and bushing.

Fig 6: Removing Lock Plate A, B, C And Bushing
Courtesy of SUBARU OF AMERICA, INC.
Remove the cushion plate.

Fig 7: Removing Cushion Plate
Courtesy of SUBARU OF AMERICA, INC.
Remove the clip, and then remove the "P" range switch.

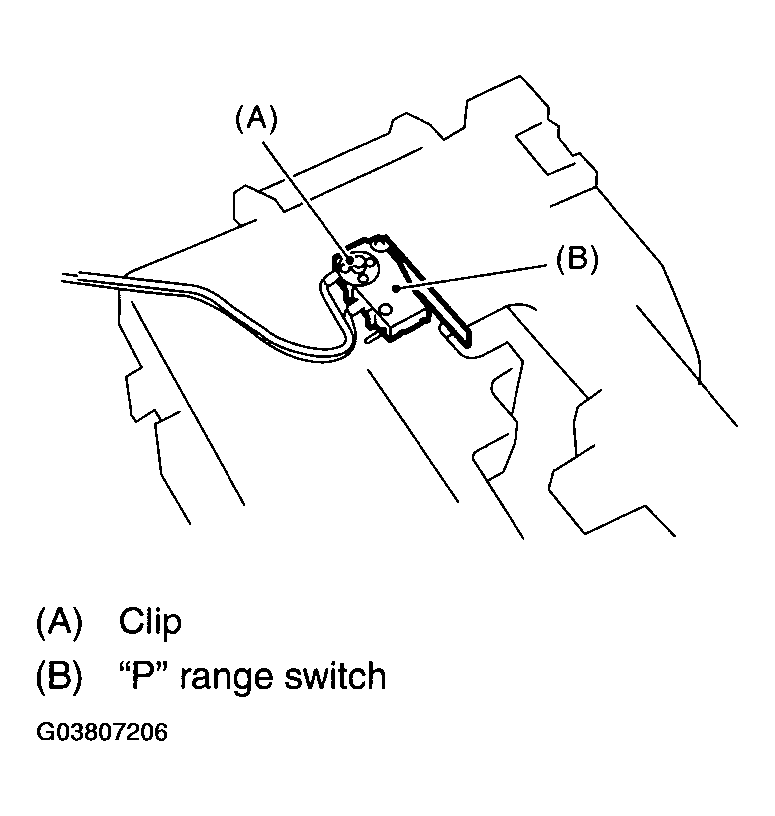

Fig 8: Removing Range Switch
Courtesy of SUBARU OF AMERICA, INC.

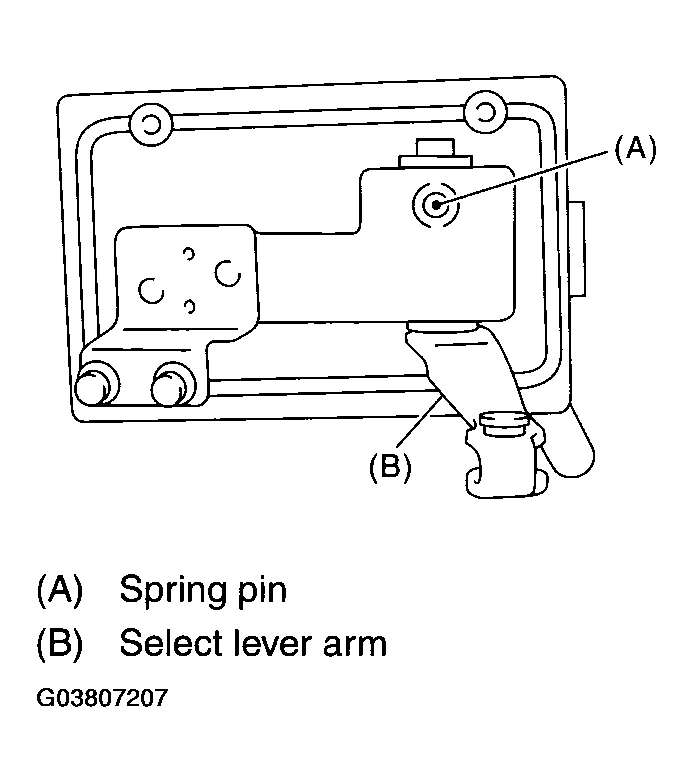

Remove the grommet, and then extract spring pin.

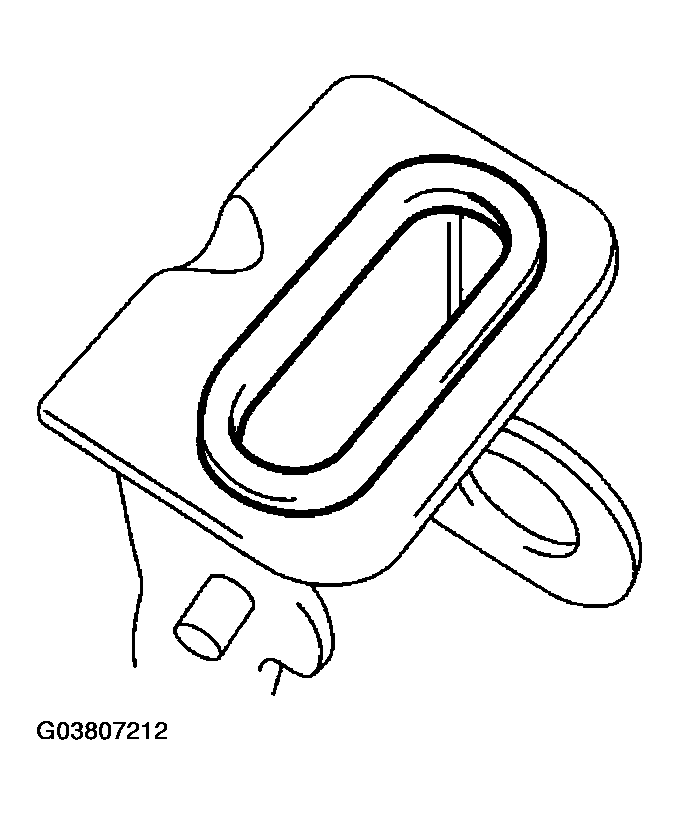

Fig 9: Removing Grommet And Extract Spring Pin
Courtesy of SUBARU OF AMERICA, INC.

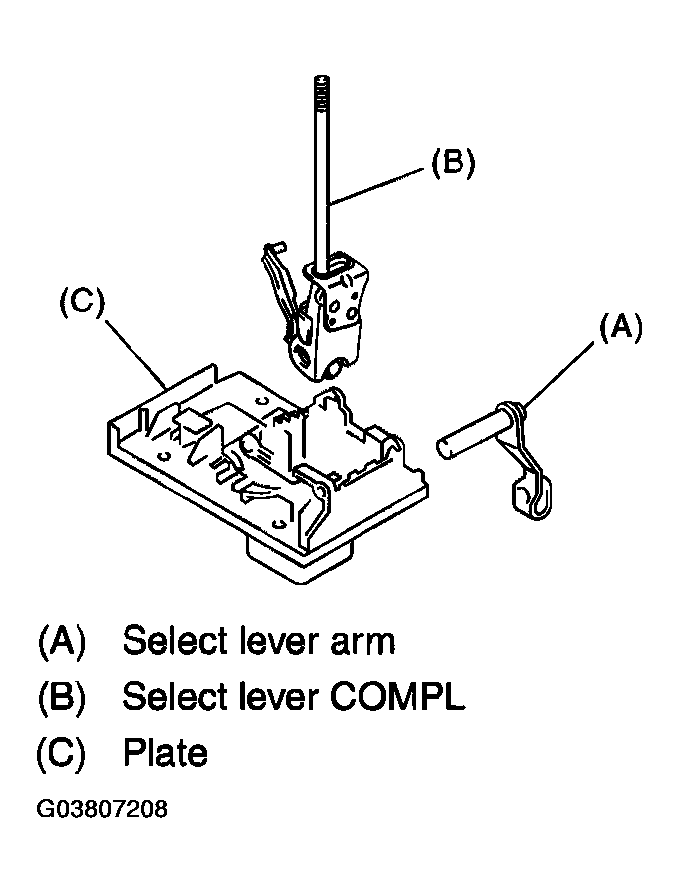

Remove the select lever arm, and then take away the select lever COMPL from plate.

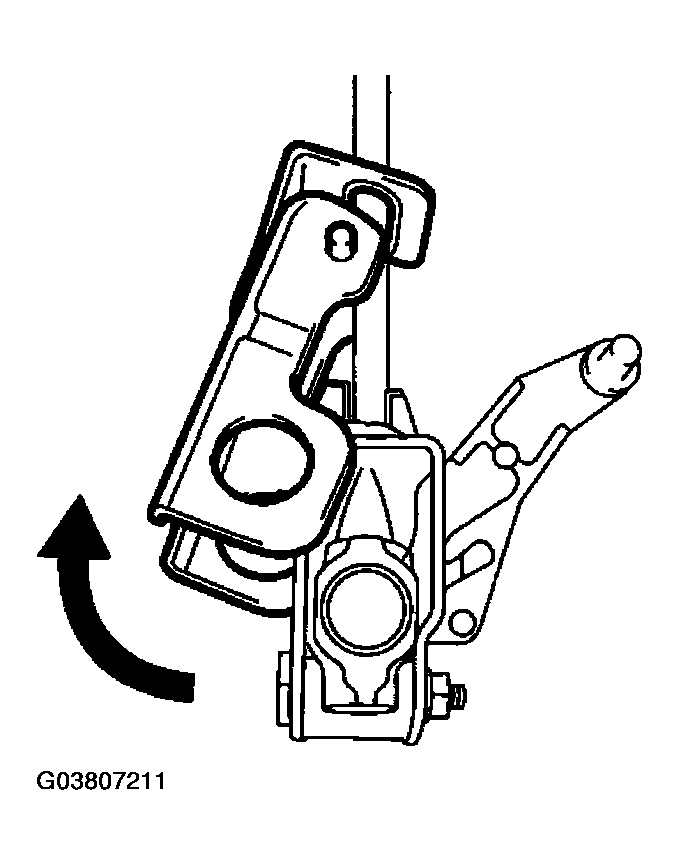

Fig 10: Removing Select Lever Arm And Select Lever COMPL From Plate
Courtesy of SUBARU OF AMERICA, INC.

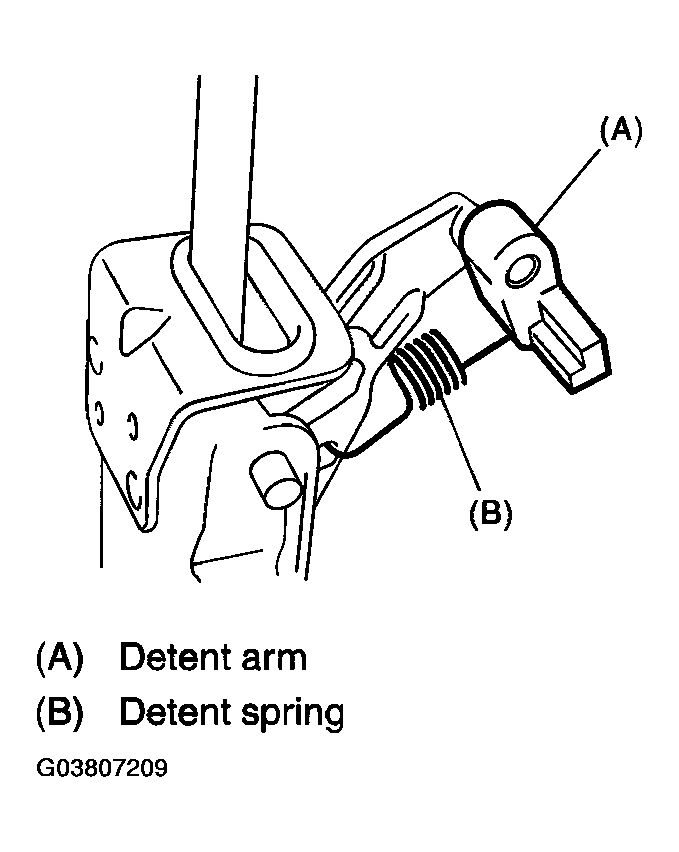

Remove the detent spring, and then remove the detent arm.

Fig 11: Removing Detent Arm
Courtesy of SUBARU OF AMERICA, INC.
Remove the select lever COMPL bushing from bracket.

Fig 12: Removing Select Lever COMPL Bushing From Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the bracket from select lever COMPL.

Fig 13: Removing Bracket From Select Lever COMPL
Courtesy of SUBARU OF AMERICA, INC.

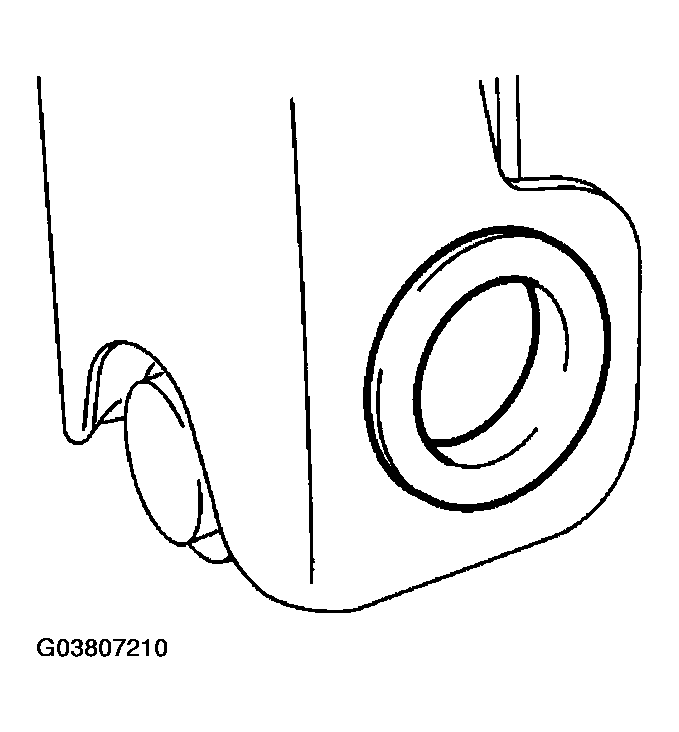

Remove the bushing from bracket.

Fig 14: Removing Bushing From Bracket
