Anti-Lock Brake Control System - Vehicle Dynamics Control (VDC)
>>
General Description
>>
Components
>>
VDC Control Module (VDCCM)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
VDC Control Module (VDCCM)

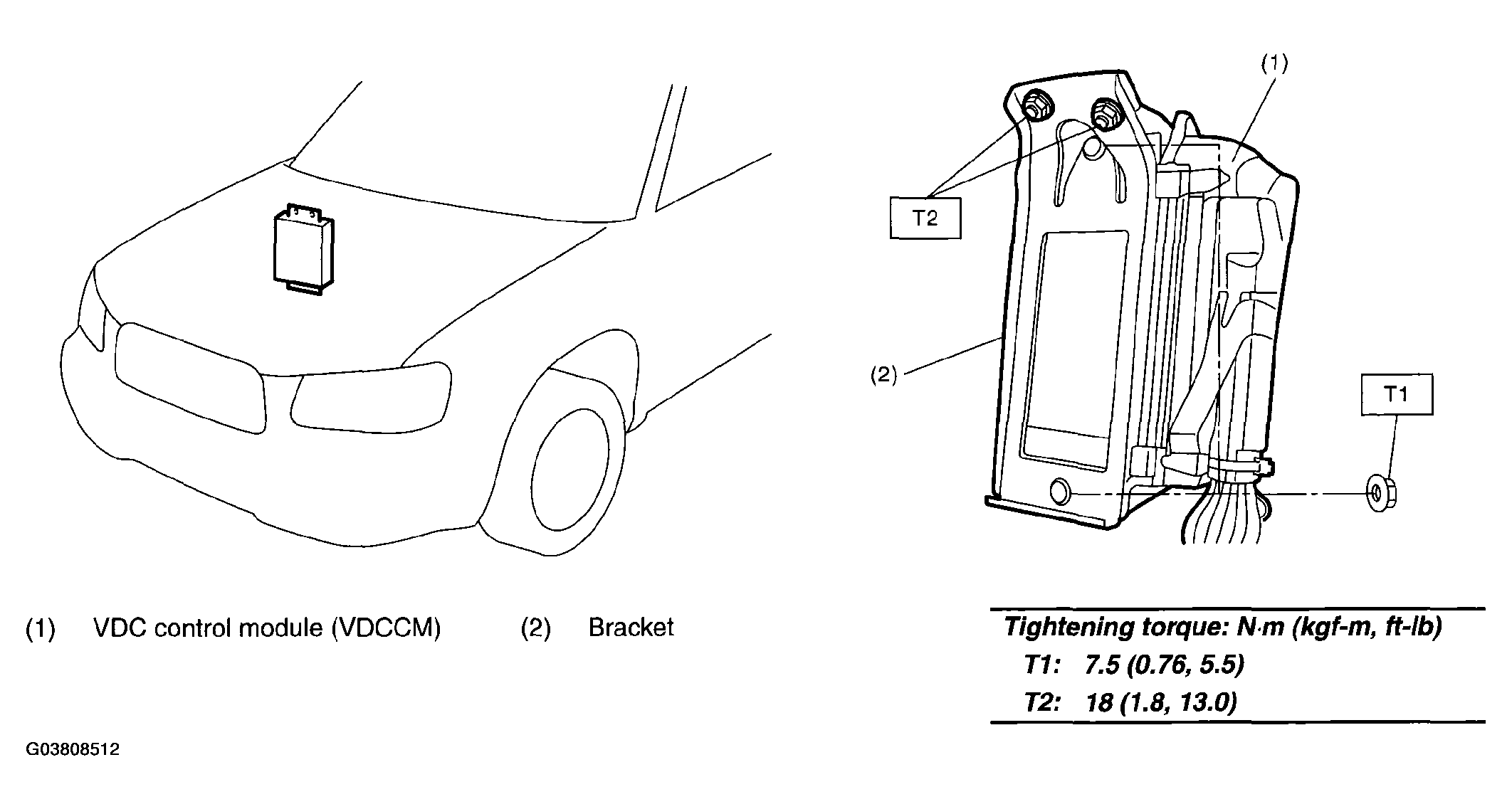

Fig 1: Identifying Components Of VDC Control Module (VDCCM)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
