VDC Control Module (VDCCM): Removal

Disconnect the ground cable from battery.

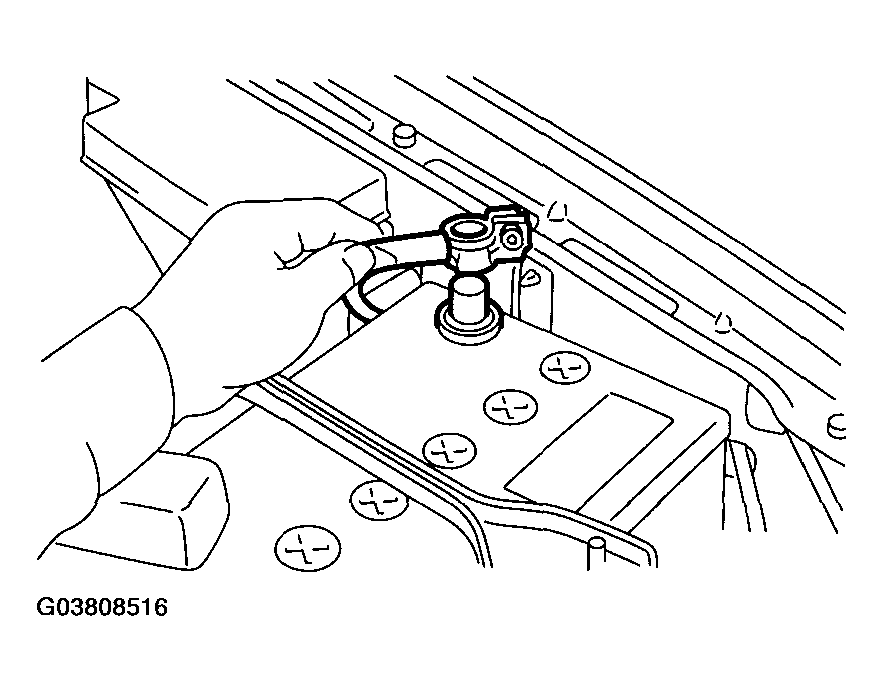

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box.
Remove the two nuts which secure bracket.

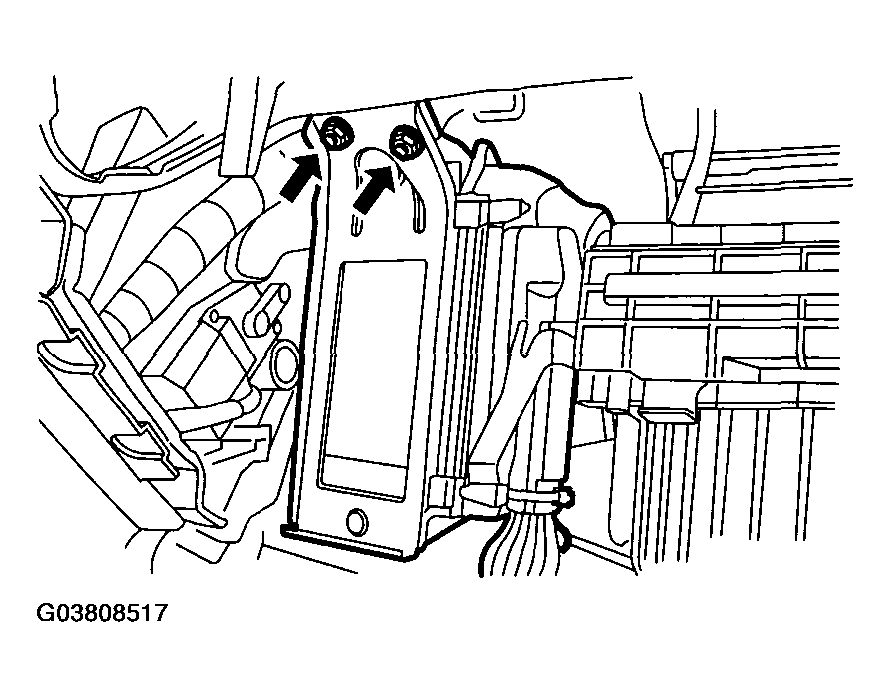

Fig 2: Removing Two Nuts Which Secure Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from VDCCM by pulling up the securing holder.

Fig 3: Disconnecting Connector From VDCCM By Pulling Up Securing Holder
Courtesy of SUBARU OF AMERICA, INC.
Remove the VDCCM.

Fig 4: Removing VDCCM
Courtesy of SUBARU OF AMERICA, INC.
Remove the bracket from VDCCM.
