Relay Box

Install the relay box and connector bracket.
Tightening torque:

13 N.m (1.3 kgf-m, 9.4 ft-lb)

Fig 1: Installing Relay Box And Connector Bracket
Courtesy of SUBARU OF AMERICA, INC.
Secure the relay box connector to connector bracket.
CAUTION: Align the connector with mating receptacle.
Connect the connector to relay box.

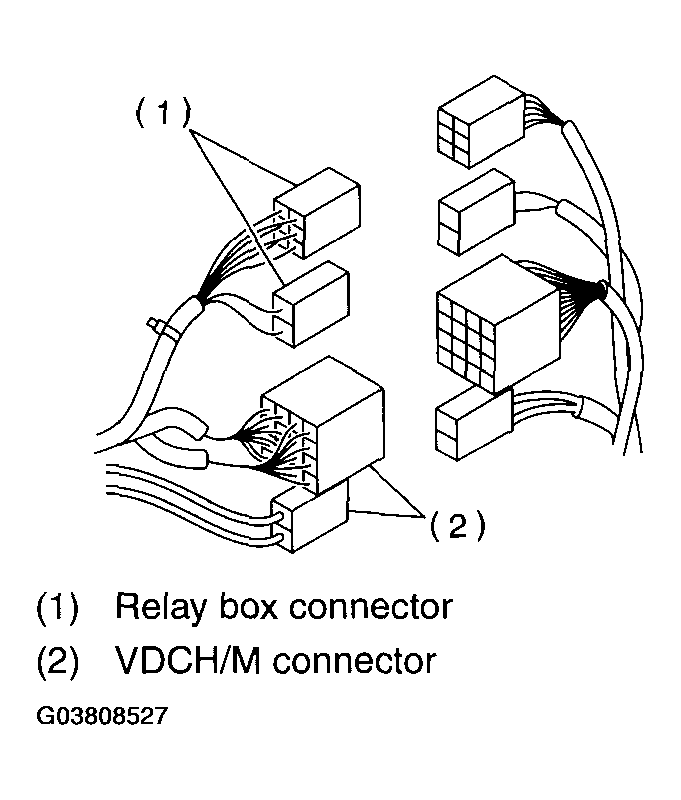

Fig 2: Connecting Connector To Relay Box
Courtesy of SUBARU OF AMERICA, INC.
Install the air intake duct.
Connect the battery ground cable to battery.
