Fuel Injection - Fuel Systems (H4DOTC): General Description: Preparation Tool

PREPARATION TOOL

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	4082AA260	CARTRIDGE	Troubleshooting for electrical systems.
Fig 2	22771AA030	SUBARU SELECT MONITOR KIT	Troubleshooting for electrical systems.
Fig 3	42099AE000	CONNECTOR REMOVER	Used for disconnecting quick connector

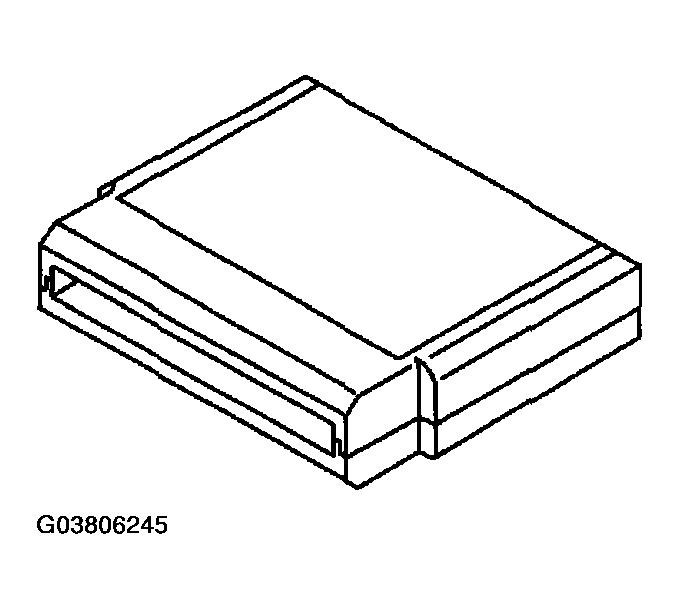

Fig 1: ST24082AA260

Courtesy of SUBARU OF AMERICA, INC.

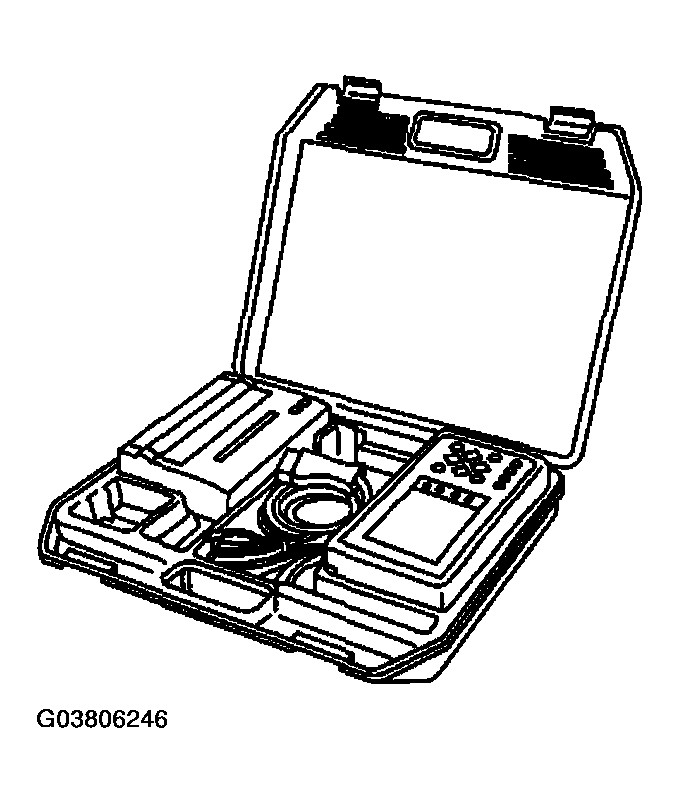

Fig 2: ST22771AA030

Courtesy of SUBARU OF AMERICA, INC.

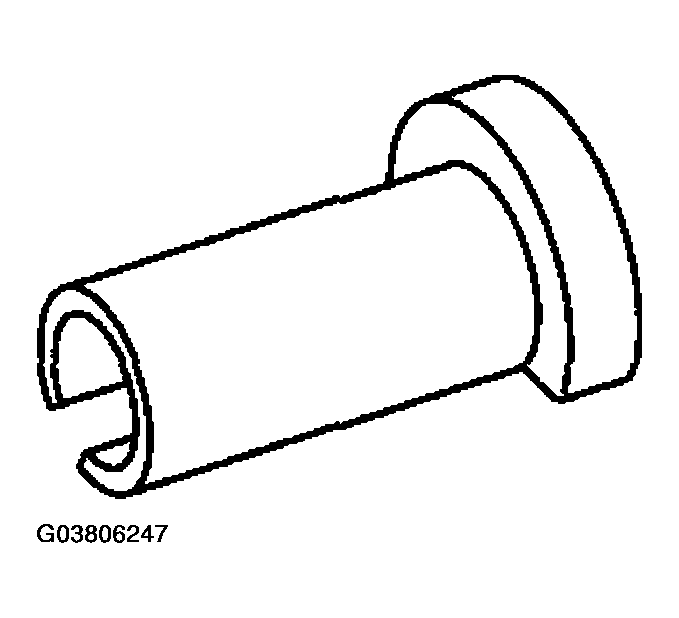

Fig 3: ST42099AE000

Courtesy of SUBARU OF AMERICA, INC.
