DTC P2101: Throttle Actuator Control Motor Circuit Range/ Performance

WARNING: This page is about a different variant/trim than selected.

DTC DETECTING CONDITION:

Immediately at fault recognition
GENERAL DESCRIPTION < Ref. to DTC P0638 THROTTLE ACTUATOR CONTROL RANGE/PERFORMANCE (BANK 1) , Diagnostic Trouble Code (DTC) Detecting Criteria. >, < Ref. to DTC P1160 RETURN SPRING FAILURE , Diagnostic Trouble Code (DTC) Detecting Criteria. >, < Ref. to DTC P2101 THROTTLE ACTUATOR CONTROL MOTOR CIRCUIT RANGE/PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. > and < Ref. to DTC P2109 THROTTLE/PEDAL POSITION SENSOR A MINIMUM STOP PERFORMANCE , Diagnostic Trouble Code (DTC) Detecting Criteria. >

TROUBLE SYMPTOM:

Erroneous idling
Poor driving performance
Engine stalls.

CAUTION: After repair or replacement of faulty parts, conduct Clear Memory Mode < Ref. to , OPERATION , Clear Memory Mode. > and Inspection Mode < Ref. to , PROCEDURE , Inspection Mode. >.

WIRING DIAGRAM:

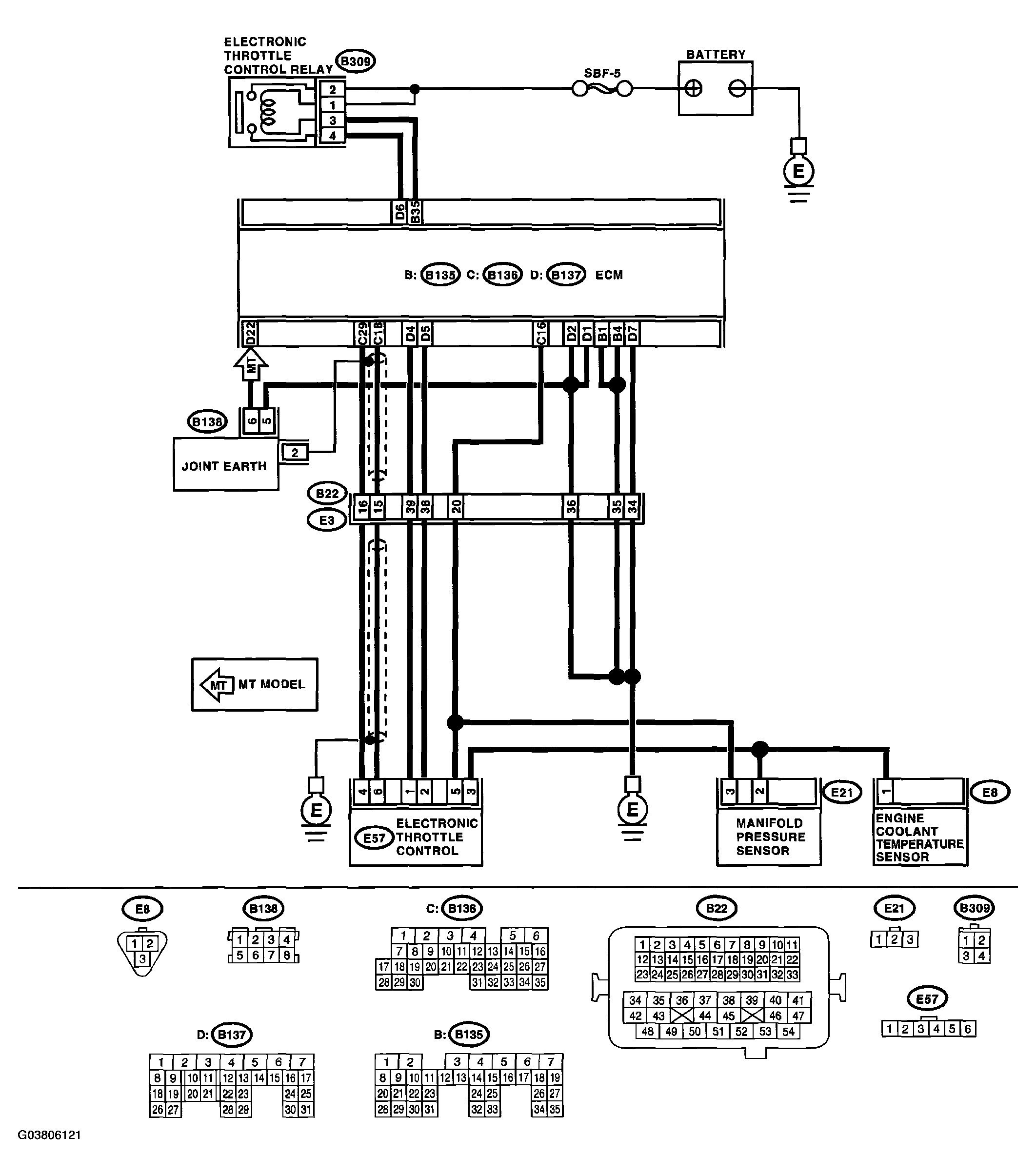

Fig 1: DTC P2101 Throttle Actuator - Wiring Diagram And Connector Terminal

Courtesy of SUBARU OF AMERICA, INC.

DIAGNOSTIC PROCEDURE DTC P2101

Step	Check	Yes	No
1 CHECK ELECTRONIC THROTTLE CONTROL RELAY. Turn the ignition switch to OFF. Remove the electronic throttle control relay. Connect the battery to electronic throttle control relay terminal No. 1 and No. 3. Measure the resistance between electronic throttle control relay terminals. Terminals No. 2 - No. 4:	Is the resistance less than 1 Ω?	Go to step 2 .	Replace the electronic throttle control relay.
2 CHECK POWER SUPPLY TO ELECTRONIC THROTTLE CONTROL RELAY. Measure the voltage between electronic throttle control relay connector and chassis ground. Connector & terminal (B309) No. 1 (+) - Chassis ground (-): (B309) No. 2 (+) - Chassis ground (-):	Is the voltage more than 5 V?	Go to step 3 .	Repair the open power supply circuit or ground short.
3 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Disconnect the connector from ECM. Turn the ignition switch to ON. Measure the voltage between electronic throttle control relay connector and chassis ground. Connector & terminal (B309) No. 3 (+) - Chassis ground (-):	Is the voltage less than 5 V?	Go to step 4 .	Repair short of the power supply circuit between ECM and electronic throttle control.
4 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to OFF. Measure the resistance between electronic throttle control electronic throttle control relay connector and chassis ground. Connector & terminal (B309) No. 3 - Chassis ground: (B309) No. 4 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 5 .	Repair the ground short of harness between ECM and electronic throttle control relay.
5 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL RELAY. Turn the ignition switch to OFF. Measure the resistance between ECM connector and electronic throttle control relay connector. Connector & terminal (B135) No. 35 - (B309) No. 3: (B137) No. 6 - (B309) No. 4:	Is the resistance less than 1 Ω?	Go to step 6 .	Repair the open circuit of harness between ECM and electronic throttle control relay.
6 CHECK OUTPUT VOLTAGE OF SENSOR. Connect all the connectors. Turn the ignition switch to ON. Read the data of main throttle sensor signal, using the Subaru Select Monitor.	Is the voltage more than 0.4 V?	Go to step 7 .	Go to step 9 .
7 CHECK OUTPUT VOLTAGE OF SENSOR. Connect all the connectors. Turn the ignition switch to ON. Read the data of sub throttle sensor signal, using the Subaru Select Monitor.	Is the voltage more than 0.8 V?	Go to step 8 .	Go to step 9 .
8 CHECK POOR CONTACT. Check poor contact between ECM connector and electronic throttle control connector.	Is there poor contact between ECM connector and electronic throttle control connector?	Repair the poor contact.	Go to step 13 .
9 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to OFF. Disconnect the connector from ECM. Disconnect the connector from electronic throttle control. Measure the resistance between ECM connector and electronic throttle control connector. Connector & terminal (B136) No. 18 - (E57) No. 6: (B136) No. 29 - (E57) No. 4:	Is the resistance less than 1 Ω?	Go to step 10 .	Repair the open harness connector.
10 CHECK THE HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B136) No. 18 - Chassis ground: (B136) No. 29 - Chassis ground:	Is the resistance more than 1 MΩ?	Go to step 11 .	Repair the ground short of harness.
11 CHECK POWER SUPPLY TO SENSOR. Connect the ECM connector. Turn the ignition switch to ON. Measure the resistance between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 5 (+) - Engine ground (-):	Is the voltage 4.5 - 5.5 V?	Go to step 12 .	Repair the poor contact in ECM connector. If problem persists, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
12 CHECK SHORT OF ECM. Turn the ignition switch to OFF. Measure the resistance between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 6 - Engine ground: (E57) No. 4 - Engine ground:	Is the resistance more than 10 Ω?	Go to step 13 .	Repair the poor contact in ECM connector. If problem persists, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
13 CHECK OUTPUT VOLTAGE OF SENSOR. Connect all the connectors. Turn the ignition switch to ON. Read the data of main throttle sensor signal, using the Subaru Select Monitor.	Is the voltage less than 4.63 V?	Go to step 14 .	Go to step 16 .
14 CHECK OUTPUT VOLTAGE OF SENSOR. Read the data of sub throttle sensor signal, using the Subaru Select Monitor.	Is the voltage less than 4.73 V?	Go to step 15 .	Go to step 16 .
15 CHECK POOR CONTACT IN CONNECTORS. Check poor contact in connectors between ECM and electronic throttle control?	Is there poor contact in connectors between ECM and electronic throttle control?	Repair the poor contact in connectors.	Go to step 21 .
16 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to OFF. Disconnect the connector from ECM. Disconnect the connector from electronic throttle control. Measure the resistance between ECM connector and electronic throttle control connector. Connector & terminal (B136) No. 18 - (E57) No. 6: (B136) No. 29 - (E57) No. 4:	Is the resistance less than 1 Ω?	Go to step 17 .	Repair the open harness connector.
17 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Connect the ECM connector. Measure the resistance between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 3 - Engine ground:	Is the resistance less than 5 Ω?	Go to step 18 .	Repair the poor contact in ECM connector. If problem persists, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >
18 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to ON. Measure the voltage between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 5 (+) - Engine ground (-):	Is the voltage more than 10 V?	Go to step 19 .	Repair the battery short of harness between ECM connector and electronic throttle control connector.
19 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Measure the voltage between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 6 (+) - Engine ground (-): (E57) No. 4 (+) - Engine ground (-):	Is the voltage less than 10 V?	Go to step 20 .	Repair the short of harness between ECM connector and electronic throttle control connector.
20 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL. Turn the ignition switch to OFF. Remove the ECM. Measure the voltage between ECM connectors. Connector & terminal (B136)No. 18 - (B136)No. 16: (B136) No. 29 - (B136) No. 16:	Is the resistance more than 1 MΩ?	Go to step 21 .	Repair the short of sensor power supply.
21 CHECK OUTPUT VOLTAGE OF SENSOR. Turn the ignition switch to OFF. Connect all the connectors except electronic throttle control replay. Turn the ignition switch to ON. Read the data of main throttle sensor signals, using Subaru Select Monitor.	Is the voltage 0.81 - 0.87 V?	Go to step 22 .	Repair the poor contact in electronic throttle control connector. If problem persists, replace the electronic throttle control.
22 CHECK OUTPUT VOLTAGE OF SENSOR. Read the data of sub throttle sensor signals, using Subaru Select Monitor.	Is the voltage 1.64 - 1.70 V?	Go to step 23 .	Repair the poor contact in electronic throttle control connector. If problem persists, replace the electronic throttle control.
23 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL MOTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Disconnect the connectors from electronic throttle control. Measure the resistance between ECM connector and electronic throttle control connector. Connector & terminal (B137) No. 5 - (E57) No. 2: (B137) No. 4 - (E57) No. 1:	Is the resistance less than 1 Ω?	Go to step 24 .	Repair the open harness connector.
24 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL MOTOR. Connect the connectors to ECM. Turn the ignition switch to ON. Measure the voltage between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 2 (+) - Engine ground (-): (E57) No. 1 (+) - Engine ground (-):	Is the voltage less than 5 V?	Go to step 25 .	Repair the short of harness to power supply circuit between ECM and electronic throttle control.
25 CHECK HARNESS BETWEEN ECM AND ELECTRONIC THROTTLE CONTROL MOTOR. Turn the ignition switch to OFF. Disconnect the connector from ECM. Measure the resistance between electronic throttle control connector and engine ground. Connector & terminal (E57) No. 2 - Engine ground: (E57) No. 1 - Engine ground:	Is the resistance more than 1 MΩ?	Go to step 26 .	Repair the short of harness.
26 CHECK ELECTRONIC THROTTLE CONTROL MOTOR HARNESS. Measure the resistance between electronic throttle control connector terminals. Connector & terminal (E57) No. 2 - (E57) No. 1:	Is the resistance more than 1 MΩ?	Go to step 27 .	Repair the short of harness.
27 CHECK ELECTRONIC THROTTLE CONTROL GROUND CIRCUIT. Measure the resistance between ECM connector and chassis ground. Connector & terminal (B137) No. 22 - Chassis ground:	Is the resistance less than 10 Ω?	Go to step 28 .	Repair the open circuit harness.
28 CHECK ELECTRONIC THROTTLE CONTROL. Measure the resistance between electronic throttle control terminals. Terminals No. 1 - No. 2:	Is the resistance less than 5 Ω?	Go to step 29 .	Replace the electronic throttle control.
29 CHECK ELECTRONIC THROTTLE CONTROL. Move the throttle valve to the fully open and fully closed positions with fingers. Check the valve returns to the specified position when releasing fingers.	Does the valve return to the specified position? Standard value: 3 mm (0.12 in) from fully closed position	Repair the poor contact in ECM connector. If problem persists, replace the ECM. < Ref. to ENGINE CONTROL MODULE (ECM) . >	Replace the electronic throttle control.
