Body Integrated Unit: Removal

Disconnect the ground cable from battery.

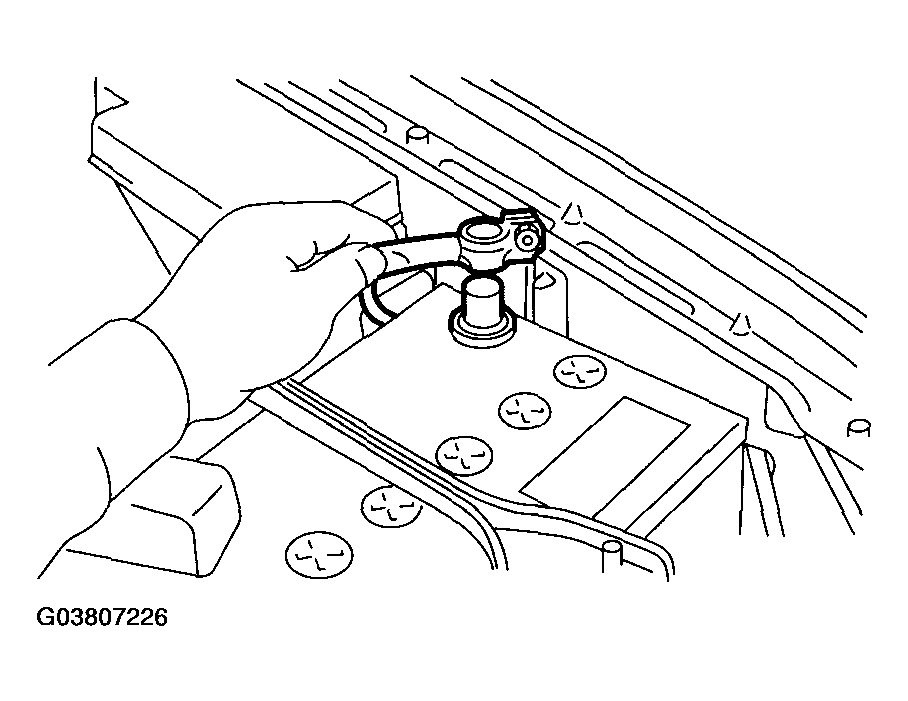

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover.
Remove the knee bolster.

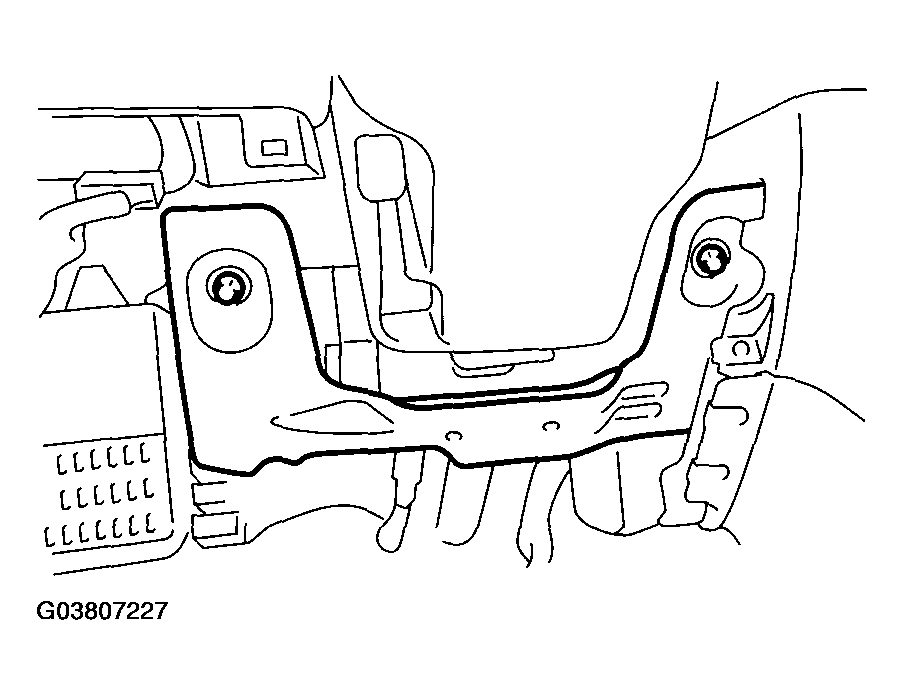

Fig 2: Removing Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from body integrated unit.
Remove the body integrated unit.

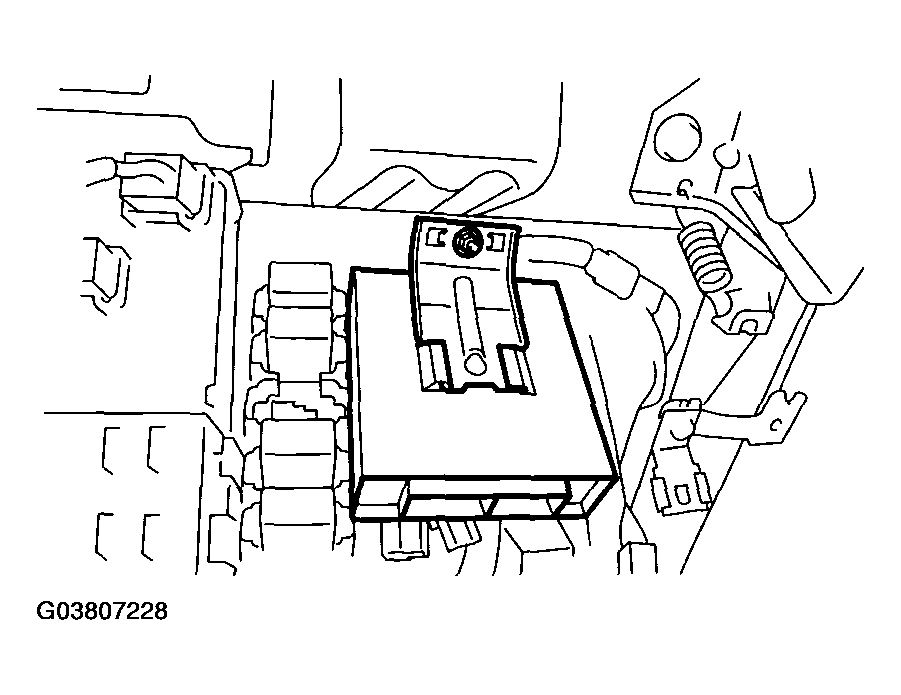

Fig 3: Removing Body Integrated Unit
Courtesy of SUBARU OF AMERICA, INC.
