Fuel Cut Valve: Removal

  1. Remove the fuel tank. < Ref. to , REMOVAL , Fuel Tank. >
  2. Remove the protect cover.
    Fig 1: Removing Protect Cover
    G03812730Courtesy of SUBARU OF AMERICA, INC.
  3. Move the clip and disconnect the evaporation hose from fuel cut valve.

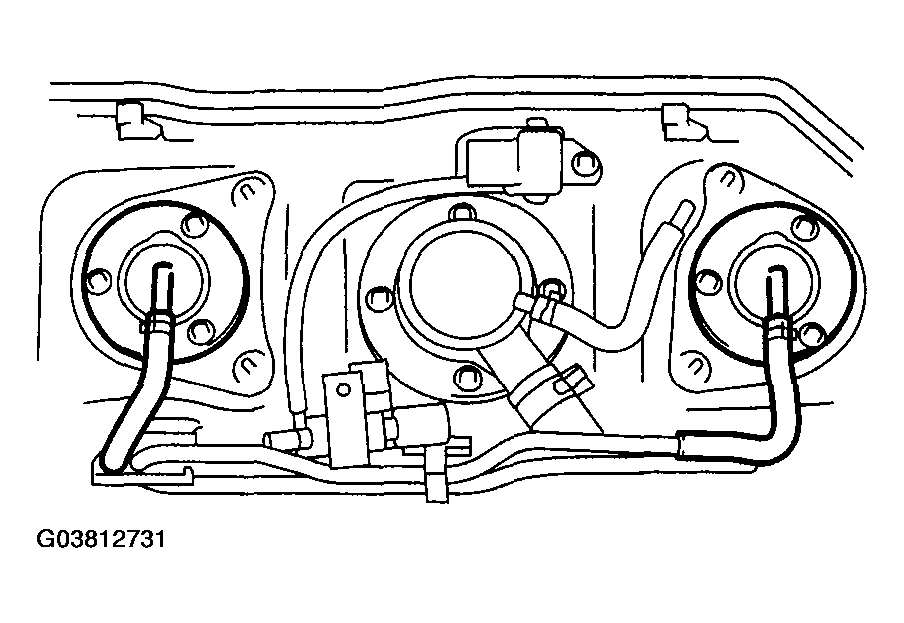

    Fig 2: Removing Fuel Cut Valve Bolts
    G03812731Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolts which install the fuel cut valve.
