Fuel Level Sensor: Removal

WARNING:
  • Place "NO FIRE" signs near the working area.
  • Be careful not to spill fuel on the floor.
NOTE: Fuel level sensor is built in fuel pump assembly.
  1. Remove the fuel pump assembly. < Ref. to , REMOVAL , Fuel Pump. >
  2. Disconnect the connector from the fuel pump bracket.
    Fig 1: Disconnecting Connector From Fuel Pump Bracket
    G03812719Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the fuel temperature sensor.
    Fig 2: Removing Fuel Temperature Sensor
    G03812720Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the bolt which installs the fuel level sensor on mounting bracket.

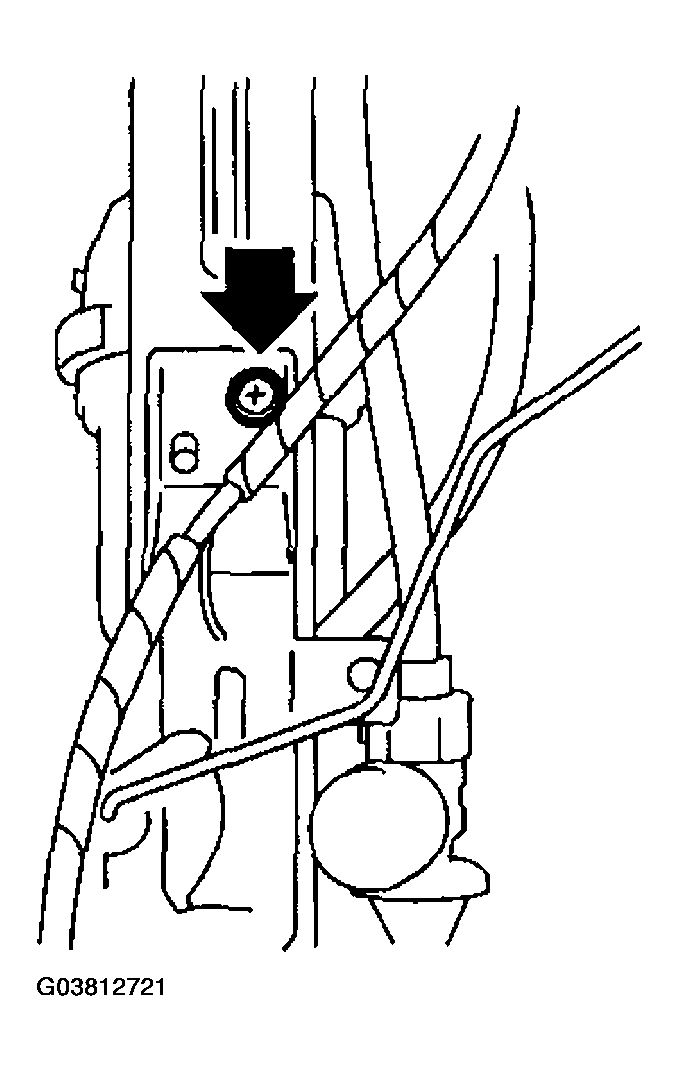

    Fig 3: Removing Bolt Installing Fuel Level Sensor On Mounting Bracket
    G03812721Courtesy of SUBARU OF AMERICA, INC.
